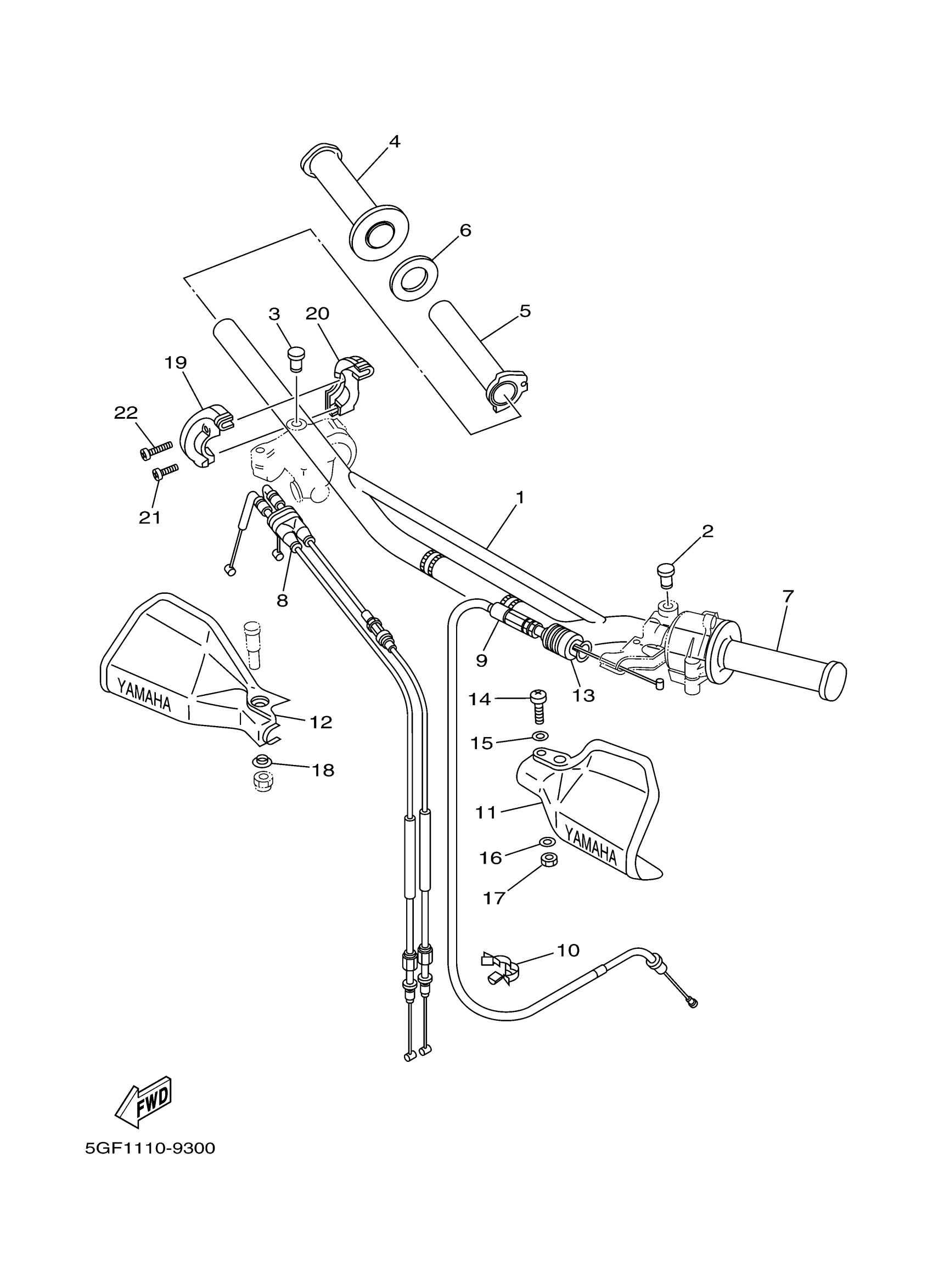

Yamaha TTR250RC (TTR250 CA) 5GFE 2003 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

4GY-26111-00-00

$106.99

2

PLUG (341-26329-00)

90338-09012-00

$9.49

3

PLUG (341-26329-00)

90338-09012-00

$9.49

4

GRIP (RIGHT)

4GY-26242-00-00

$29.99

5

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$28.99

6

RING, LEAF

3Y1-26249-00-00

$9.99

7

GRIP (LEFT)

4GY-26241-00-00

$29.99

8

THROTTLE CABLE ASSY

4GY-26302-02-00

Unavailable

9

CABLE, CLUTCH

4GY-26335-02-00

Unavailable

10

CLAMP(4GY)

90464-10193-00

$9.49

11

GUARD, BRUSH 1

3BN-26141-20-00

$24.99

12

GUARD, BRUSH 2

3BN-26142-20-00

$24.99

13

BOOT, WIRE

1E6-26342-00-00

$30.99

14

SCREW, PAN

98507-06035-00

$8.49

15

WASHER(6TA)

92907-06600-00

$2.72

16

WASHER(6TA)

92907-06600-00

$2.72

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

19

CAP, GRIP UPPER

34K-26281-00-00

Unavailable

20

CAP, GRIP LOWER

1VJ-26282-00-00

Unavailable

21

SCREW, PAN HEAD

98517-05020-00

Unavailable

22

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable
