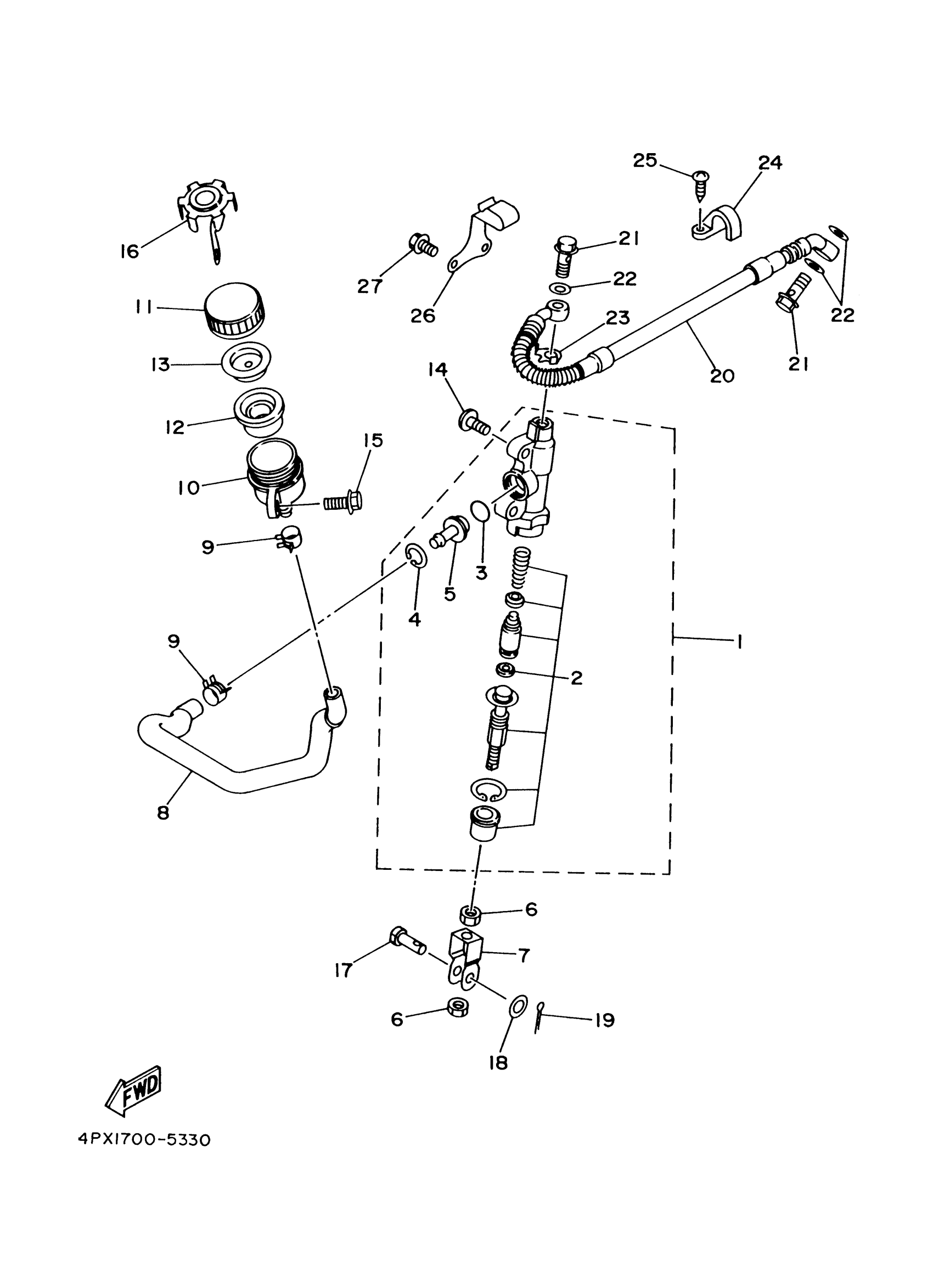

Yamaha TTR250RC (TTR250 CA) 5GFE 2003 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

4GY-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

4GY-W0042-00-00

Unavailable

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

JOINT

3PA-2582A-50-00

Unavailable

6

NUT(6TA)

95337-08600-00

$8.49

7

JOINT

4GY-27222-00-00

Unavailable

8

HOSE, RESERVOIR

4GY-25895-00-00

Unavailable

9

CLIP (7K7)

90467-11044-00

$8.49

10

TANK, RESERVOIR

2VN-25894-00-00

$20.99

11

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

14

BOLT, BUTTON

92017-08016-00

$5.60

15

BOLT, FLANGE

95817-06014-00

Unavailable

16

COVER, RESERVOIR TANK

3ET-25888-00-00

Unavailable

17

PIN, CLEVIS(2VM)

90240-08120-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

PIN, COTTER

91490-25020-00

Unavailable

20

HOSE, BRAKE 2

4GY-25873-01-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

WASHER, LOCK

4FU-25844-00-00

Unavailable

24

HOLDER, BRAKE HOSE 2

2VM-25876-00-00

Unavailable

25

SCREW, TAPPING

97707-50610-00

Unavailable

26

CLAMP(3RB)

90462-12195-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
