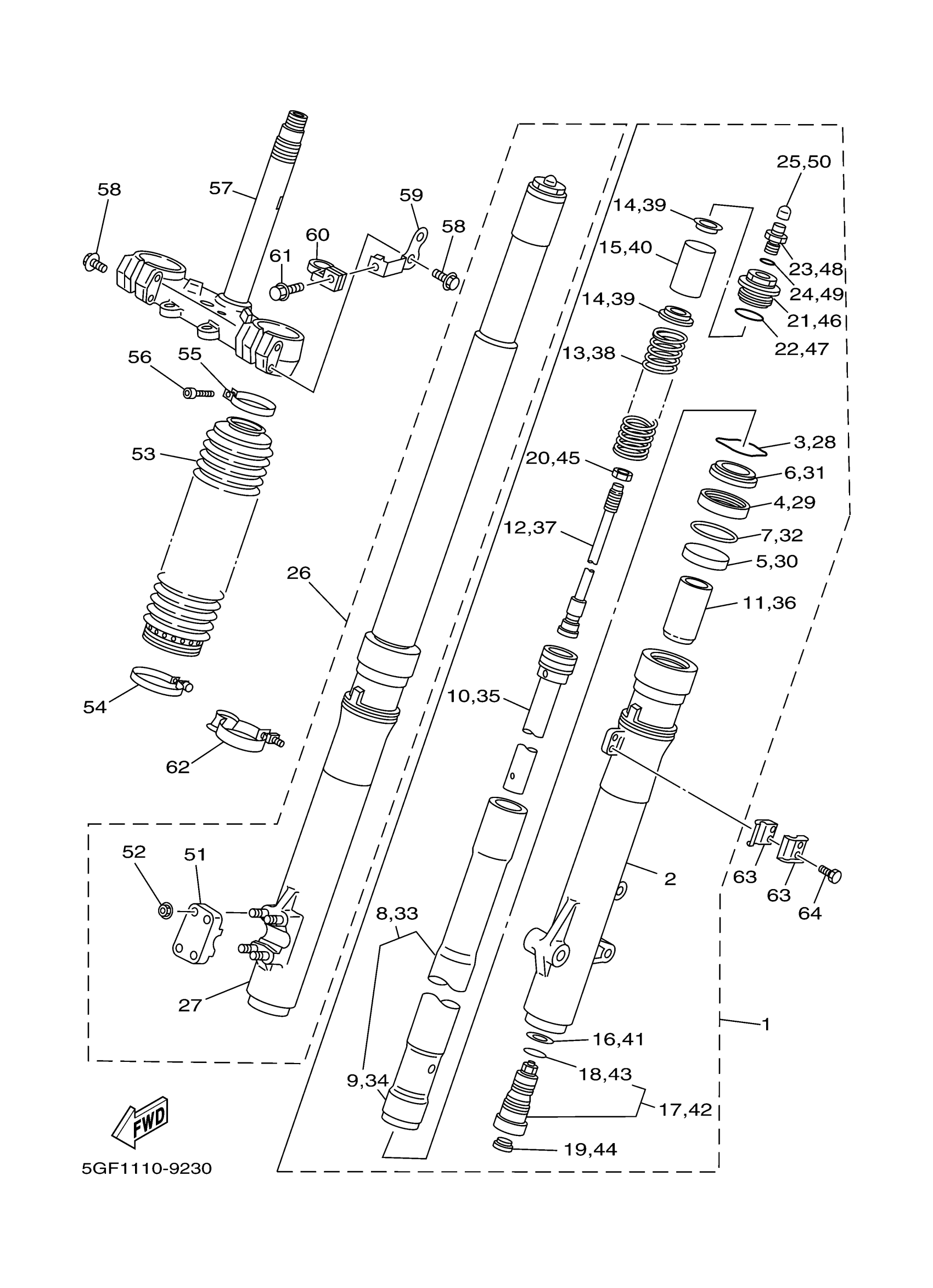

Yamaha TTR250RC (TTR250 CA) 5GFE 2003 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
4PX-23102-10-00
Unavailable
2
TUBE, OUTER (LEFT)
5GF-23126-20-00
Unavailable
8
INNER TUBE COMP.1
4GY-23110-00-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
4GY-23170-00-00
Unavailable
11
. SPINDLE, TAPER
2VM-23173-L0-00
Unavailable
12
PISTON ROD ASSY
4PX-2314A-10-00
Unavailable
13
SPRING, FRONT FORK
4PX-23141-10-00
Unavailable
14
SEAT, SPRING UPPER
4V4-23142-L0-00
Unavailable
15
. SPACER
4GY-23118-01-00
Unavailable
16
GASKET
2HH-23158-L0-00
Unavailable
17
. VALVE COMP
4PX-2316A-10-00
Unavailable
18
O-RING
3XP-23188-00-00
Unavailable
19
PLUG
55Y-2312G-M0-00
Unavailable
20
NUT
3XJ-23357-L0-00
Unavailable
21
BOLT, CAP
2VM-23111-L0-00
Unavailable
22
O-RING
4V4-23188-L1-00
Unavailable
23
AIR VALVE COMP.
23X-23190-L0-00
Unavailable
24
O-RING
3J2-23147-00-00
Unavailable
25
COVER, VALVE
2VN-23185-L0-00
Unavailable
26
FRONT FORK ASSY (R.H)
4PX-23103-10-00
Unavailable
27
TUBE, OUTER
5GF-23136-20-00
Unavailable
33
INNER TUBE COMP.1
4GY-23110-00-00
Unavailable
35
. CYLINDER COMP, FRONT FORK
4GY-23170-00-00
Unavailable
36
. SPINDLE, TAPER
2VM-23173-L0-00
Unavailable
37
PISTON ROD ASSY
4PX-2314A-10-00
Unavailable
38
SPRING, FRONT FORK
4PX-23141-10-00
Unavailable
39
SEAT, SPRING UPPER
4V4-23142-L0-00
Unavailable
40
. SPACER
4GY-23118-01-00
Unavailable
41
GASKET
2HH-23158-L0-00
Unavailable
42
. VALVE COMP
4PX-2316A-10-00
Unavailable
43
O-RING
3XP-23188-00-00
Unavailable
44
PLUG
55Y-2312G-M0-00
Unavailable
45
NUT
3XJ-23357-L0-00
Unavailable
46
BOLT, CAP
2VM-23111-L0-00
Unavailable
47
O-RING
4V4-23188-L1-00
Unavailable
48
AIR VALVE COMP.
23X-23190-L0-00
Unavailable
49
O-RING
3J2-23147-00-00
Unavailable
50
COVER, VALVE
2VN-23185-L0-00
Unavailable
51
HOLDER, AXLE
4V2-23167-L0-00
Unavailable
52
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
53
BOOT
4GY-23191-51-00
Unavailable
54
BAND
55U-23489-00-00
Unavailable
55
BAND
43M-23192-L0-00
Unavailable
56
SCREW, PAN HEAD
98507-04018-00
Unavailable
57
UNDER BRACKET COMP.
4PX-23340-10-00
Unavailable
58
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
59
GUIDE, CABLE
5GF-2331E-00-00
Unavailable
60
GUIDE, CABLE
4GY-23389-00-00
Unavailable
61
BOLT, WASHER BASED(58X)
90105-05361-00
Unavailable
62
HOLDER, CABLE 1
4PX-23318-00-00
Unavailable
63
CLAMP(26A)
90465-16258-00
Unavailable
64
BOLT,SOCKET
91317-06016-00
Unavailable
