Description

Price

1

FENDER, FRONT

4GY-21511-40-00

$63.99

2

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

3

COLLAR (8G8)

90387-06681-00

$9.49

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

REAR FENDER C0MP.

4GY-Y2161-S0-00

Unavailable

6

EMBLEM, YAMAHA

99241-00080-00

$13.99

7

GROMMET 839774310000

90480-14023-00

$7.49

8

DAMPER, SIDE COVER

3XV-21717-00-00

$3.28

9

EMBLEM 1

5GF-2163G-09-00

Unavailable

10

BOLT, HEXAGON

97017-06016-00

$8.49

11

COLLAR

90387-06107-00

$8.49

12

BOLT(55T)

90109-064A5-00

$3.71

13

COLLAR (8G8)

90387-06648-00

$8.49

14

NUT,SELF-LOCKING

95607-06200-00

$12.49

15

GUARD, FLAP

4GY-21642-00-00

$43.99

16

BOLT, HEXAGON

97017-06012-00

Unavailable

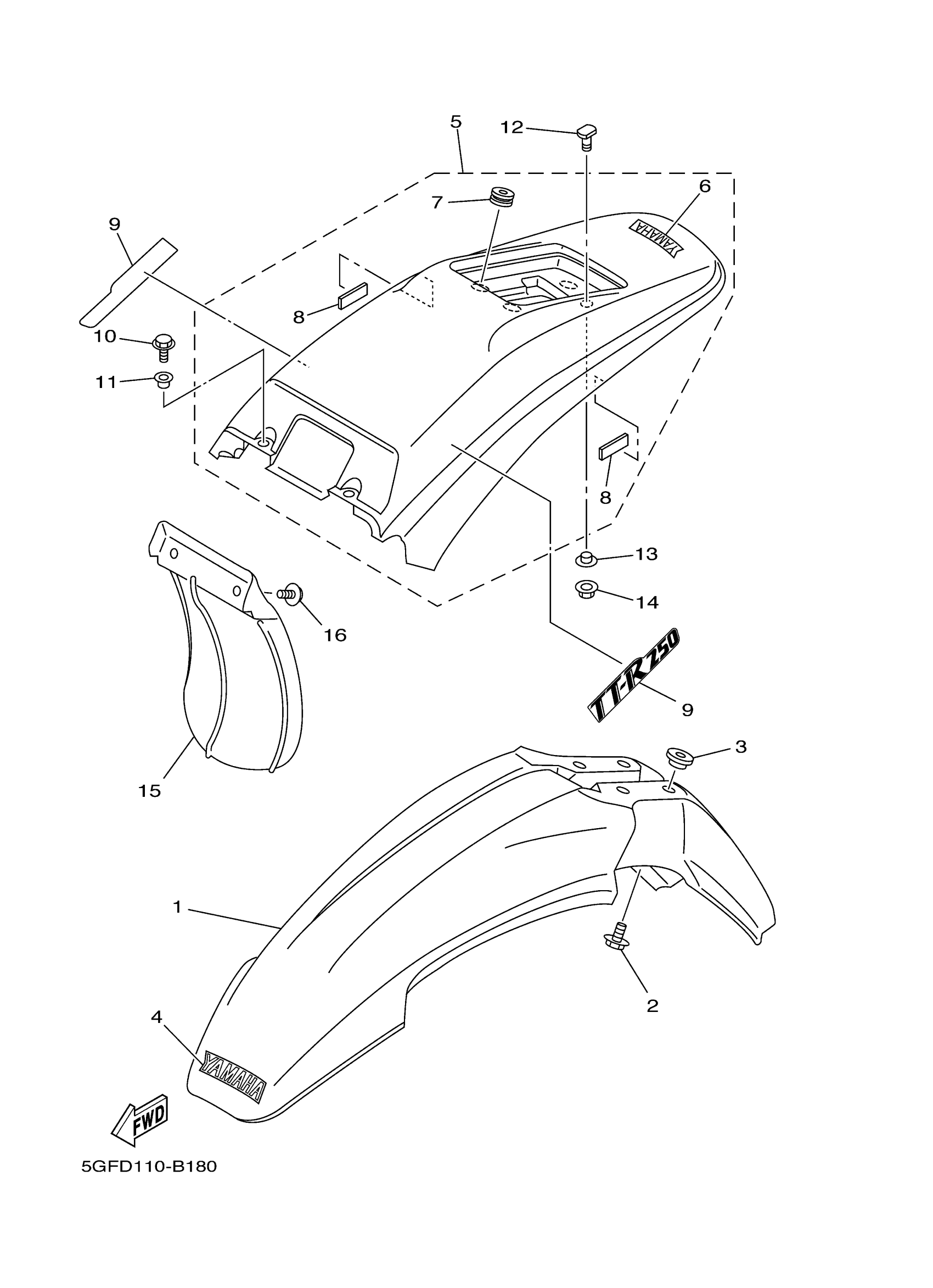

Yamaha TTR250RC (TTR250 CA) 5GFE 2003 FENDER Diagram

FENDER, FRONT

BOLT, WITH WASHER (10V)

COLLAR (8G8)

EMBLEM, YAMAHA

REAR FENDER C0MP.

EMBLEM, YAMAHA

GROMMET 839774310000

DAMPER, SIDE COVER

EMBLEM 1

BOLT, HEXAGON

COLLAR

BOLT(55T)

COLLAR (8G8)

NUT,SELF-LOCKING

GUARD, FLAP

BOLT, HEXAGON
