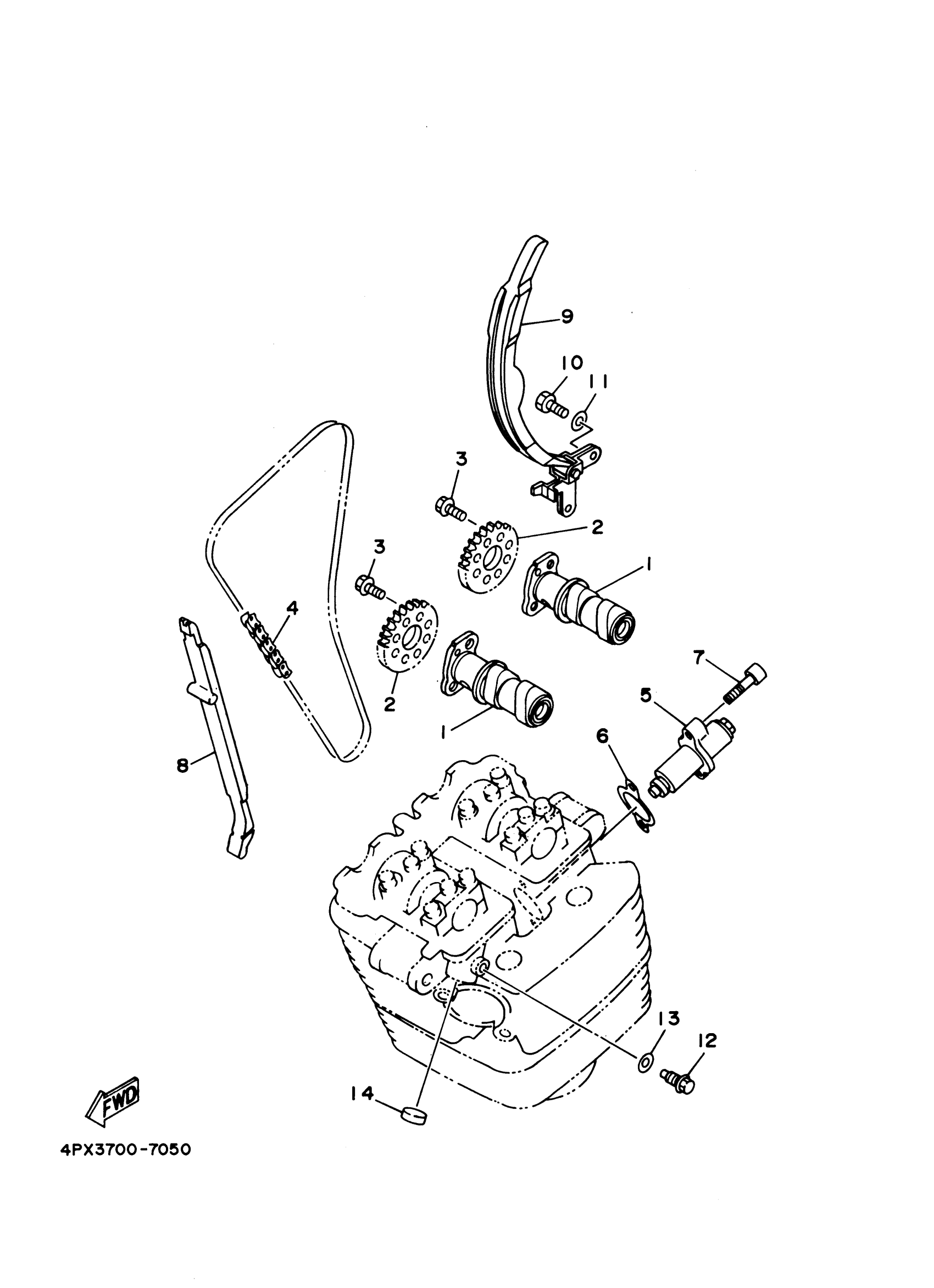

Yamaha TTR250RC (TTR250 CA) 5GFE 2003 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

4GY-12171-00-00

Unavailable

SPROCKET, CAM CHAIN

4GY-12176-00-00

$65.99

BOLT, WASHER BASED(1HX)

90105-07385-00

Unavailable

CHAIN(4GY)

94591-43122-00

Unavailable

TENSIONER ASSY, CAM CHAIN

3GC-12210-10-00

$115.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT,SOCKET

91317-06025-00

$5.60

DAMPER, CHAIN 1

4GY-12251-00-00

$66.99

DAMPER, CHAIN 2

4GY-12252-01-00

$110.99

BOLT, HEXAGON

97017-06016-00

$8.49

WASHER(6TA)

92907-06600-00

$2.72

BOLT (583 TACHOMETER)

90109-06418-00

$9.49

GASKET 256113960000

90430-06014-00

Unavailable

PLUG (583)

90338-18067-00

$10.49
