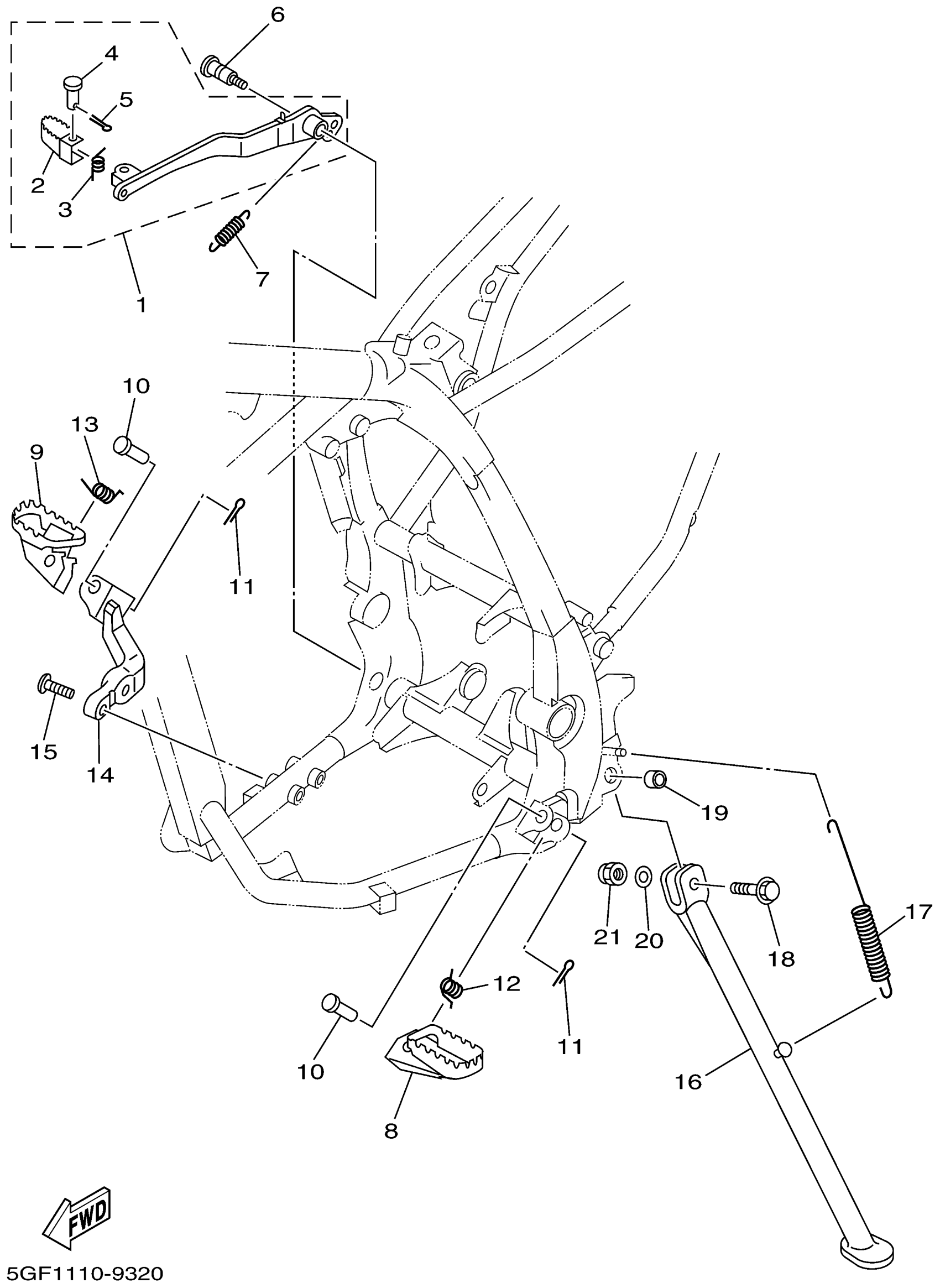

Yamaha TTR250PC (TTR250 CA) 5GFB 2002 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5GF-27200-00-00

Unavailable

2

PEDAL, BRAKE

4TP-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

BOLT

4GY-27217-10-00

$17.49

7

SPRING, TENSION(47X)

90506-20369-00

Unavailable

8

FOOTREST 1

4DA-27411-00-00

Unavailable

9

FOOTREST 2

4GY-27421-00-00

Unavailable

10

PIN, CLEVIS(2HJ)

90240-10117-00

$14.99

11

PIN, COTTER

91490-25020-00

$3.19

12

SPRING, TORSION(3JD)

90508-28777-00

$7.49

13

SPRING, TORSION(4GY)

90508-284A7-00

$7.49

14

BRACKET, FOOTREST 2

4GY-27422-00-00

$161.99

15

BOLT, BUTTON

92017-10030-00

$4.99

16

STAND, SIDE

4GY-27311-01-00

Unavailable

17

SPRING, TENSION(4BF)

90506-35474-00

Unavailable

18

BOLT, WASHER BASED(4KD)

90105-10728-00

Unavailable

19

COLLAR(3XP)

90387-1003G-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

NUT, U

95617-10100-00

Unavailable
