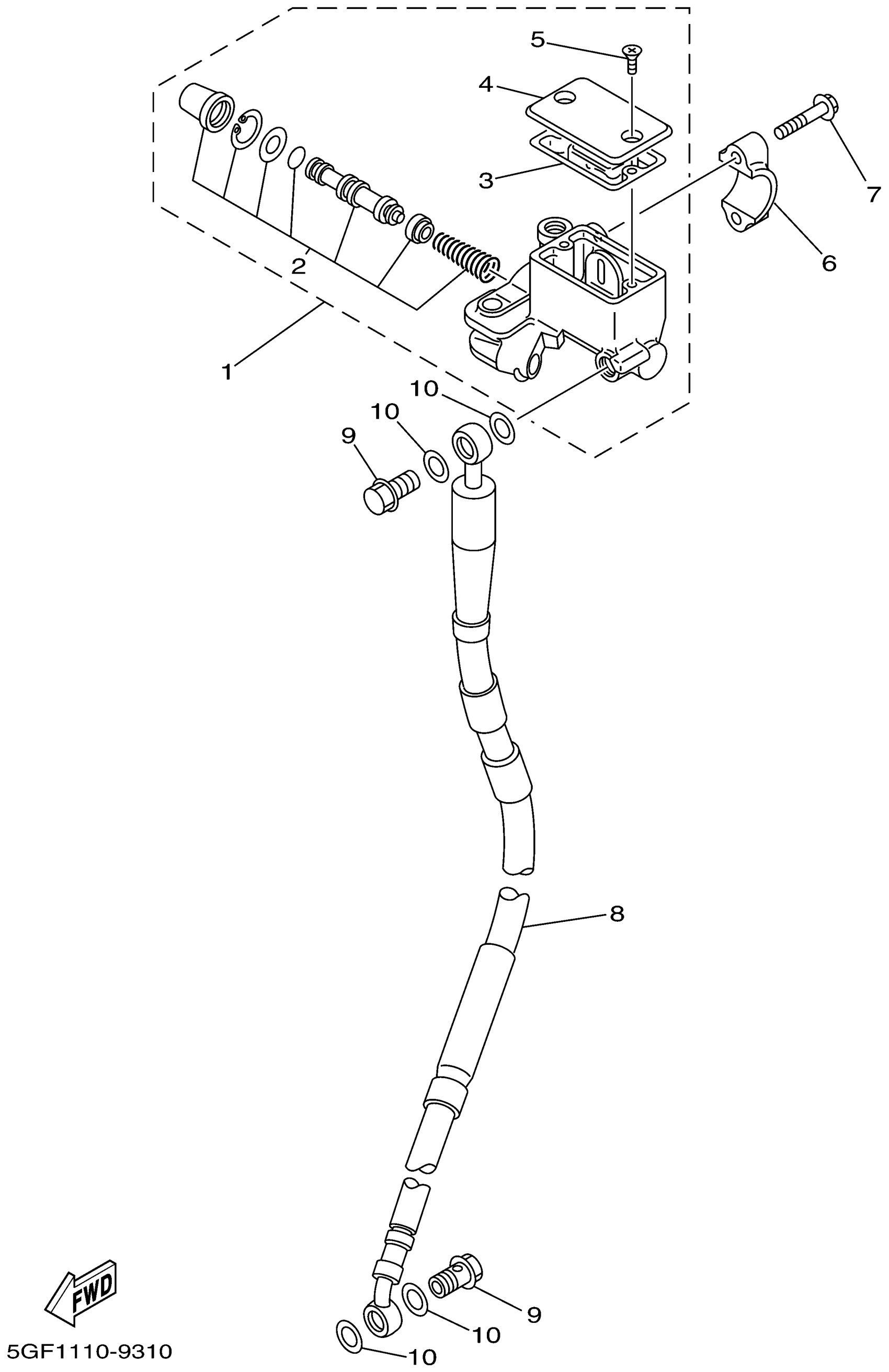

Yamaha TTR250PC (TTR250 CA) 5GFB 2002 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

4GY-25870-02-00

Unavailable

CYLINDER KIT, MAST

5RS-25807-03-00

$35.09

GASKET, DIAPHRAGM

3RW-25854-00-00

Unavailable

CAP, RESERVOIR

4GY-25852-01-00

$35.97

SCREW, FLAT

98707-04012-00

$1.34

BRACKET, MASTER CYLINDER

56A-25867-00-00

$23.01

BOLT, SMALL FLANGE

95027-06025-00

$2.95

HOSE, BRAKE 1

5GF-25872-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$8.26

WASHER, PLATE(481)

90201-10118-00

Unavailable
