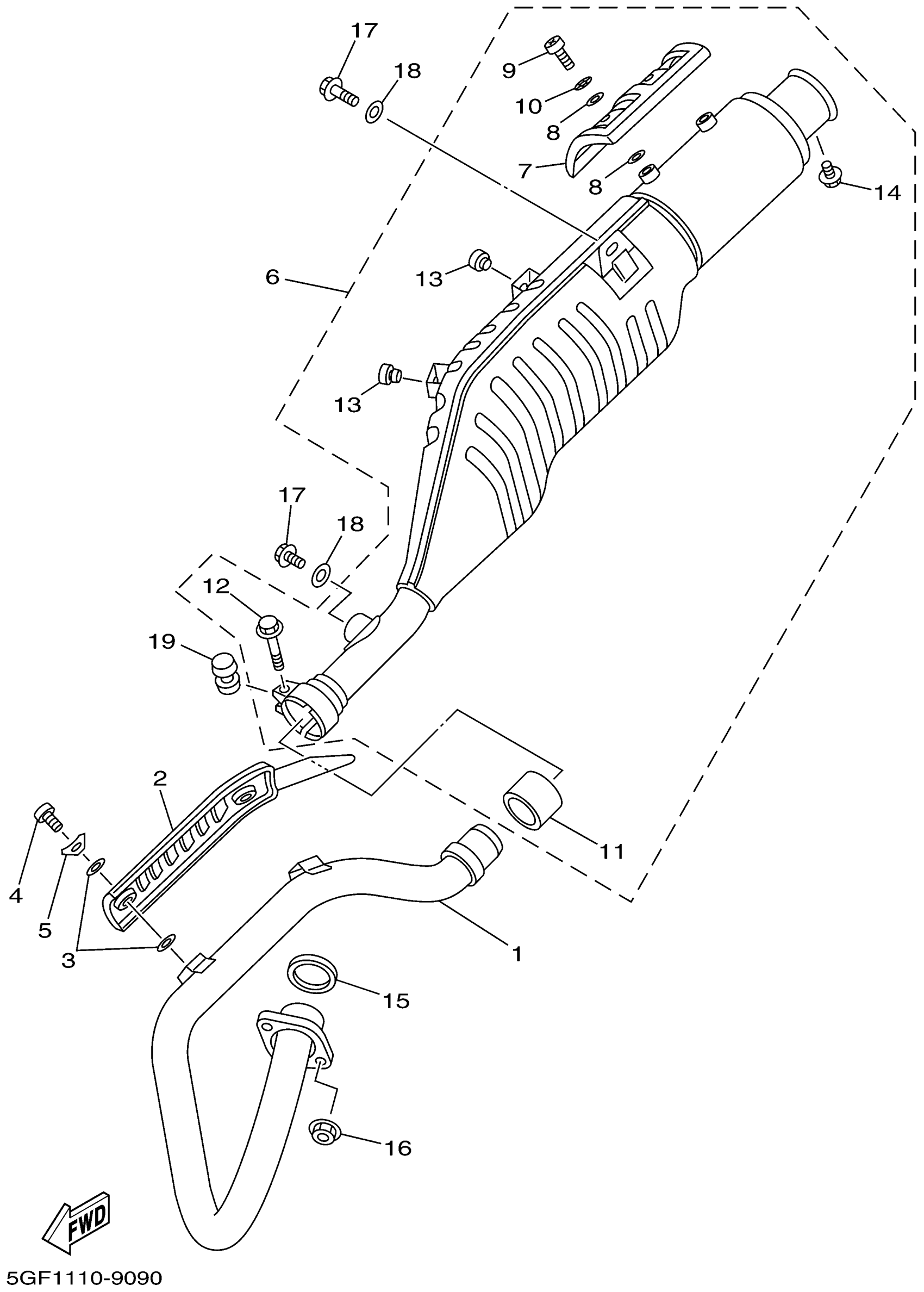

Yamaha TTR250PC (TTR250 CA) 5GFB 2002 EXHAUST Diagram

PIPE, EXHAUST 1

4GY-14611-01-00

Unavailable

PROTECTOR, EXHAUST PIPE

4GY-14628-00-00

Unavailable

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BIND(1JK)

98980-06010-00

$9.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

MUFFLER ASSY 1

5GF-14710-00-00

Unavailable

. PROTECTOR, MUFFLER 2

55V-14728-00-00

Unavailable

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BINDING

98907-06010-00

$1.65

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, MUFFLER

4EL-14714-00-00

$27.99

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

BOLT, FLANGE

95814-06016-00

Unavailable

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

NUT (22U)

90179-08410-00

Unavailable

BOLT(2KF)

90109-085E2-00

Unavailable

WASHER (853)

90201-08326-00

Unavailable

CAP

4GY-14799-00-00

Unavailable
