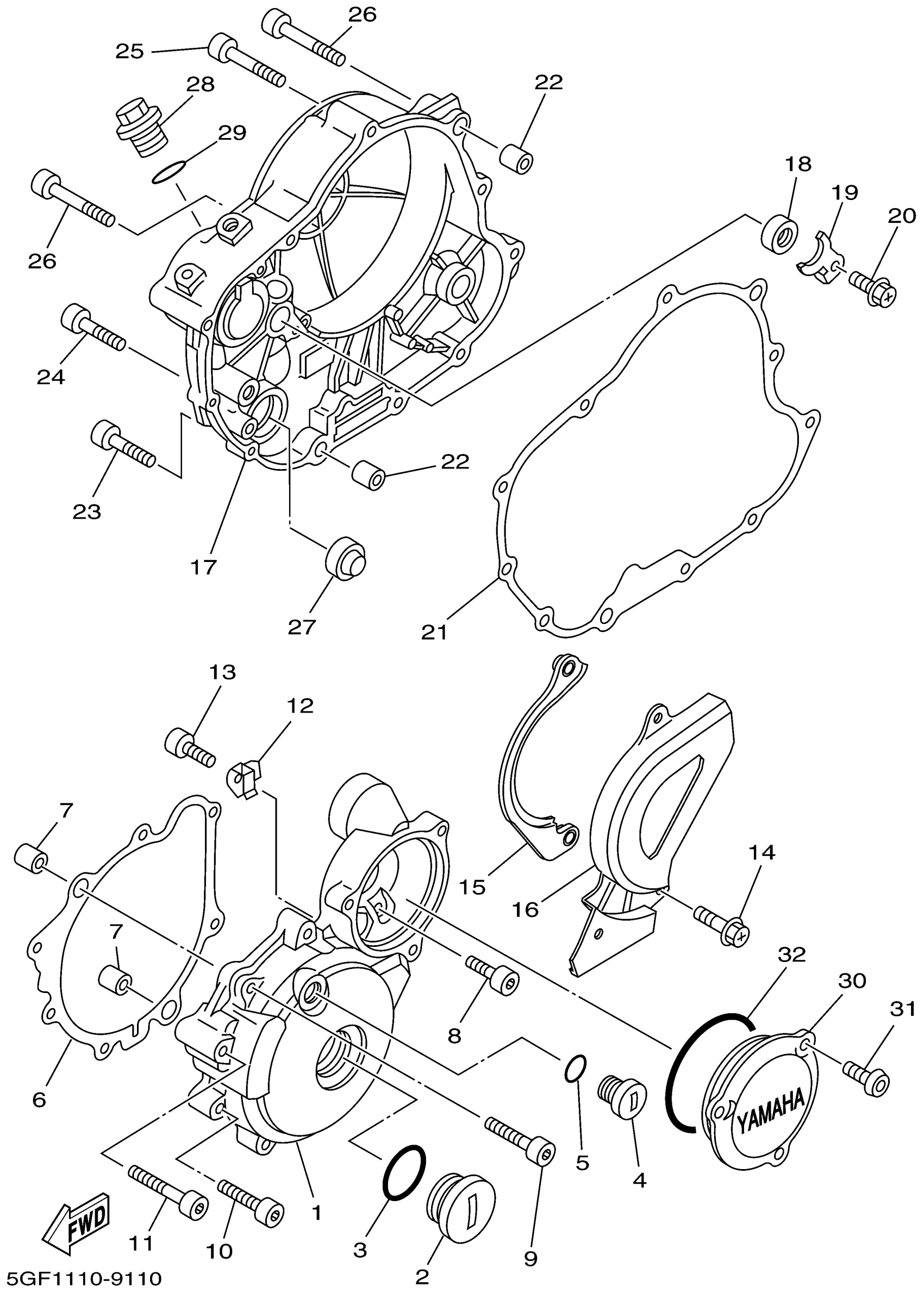

Yamaha TTR250PC (TTR250 CA) 5GFB 2002 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4GY-15411-02-00

$233.99

2

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$23.99

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

4GY-15451-00-00

$14.49

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

9

BOLT,SOCKET

91317-06040-00

$3.76

10

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

11

BOLT,SOCKET

91317-06045-00

$4.99

12

CLAMP(4GY)

90465-12373-00

Unavailable

13

BOLT, SOCKET

91317-05012-00

$2.55

14

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

15

GUIDE, CHAIN

4PX-17466-00-00

Unavailable

16

COVER, CRANKCASE 2

4PX-15421-00-00

Unavailable

17

COVER, CRANKCASE 3

5GF-15431-00-00

Unavailable

18

OIL SEAL(4GY)

93101-14164-00

Unavailable

19

HOLDER

4GY-15118-00-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

21

GASKET, CRANKCASE COVER 2

4GY-15461-00-00

Unavailable

22

PIN, DOWEL(3VD)

99530-10114-00

$2.55

23

BOLT,SOCKET

91317-06025-00

Unavailable

24

BOLT,SOCKET

91317-06035-00

Unavailable

25

BOLT,SOCKET

91317-06040-00

$3.76

26

BOLT,SOCKET

91317-06050-00

Unavailable

27

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

28

PLUG, STRAIGHT SCREW(4GY)

90340-20143-00

Unavailable

29

O-RING (646)

93210-19123-00

Unavailable

30

COVER, GENERATOR

4GY-15415-01-00

Unavailable

31

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

32

O-RING (6E5)

93210-74M35-00

Unavailable
