Description

Price

1

GEAR, PRIMARY DRIVE

4GY-16111-00-00

Unavailable

2

KEY, WOODRUFF(4GY)

90280-07055-00

$23.99

3

WASHER, CLAW(4GY)

90214-16063-00

Unavailable

4

WASHER, LOCK(4GY)

90215-16286-00

Unavailable

5

NUT

90170-16425-00

$9.49

6

PRIMARY DRIVEN GEAR COMP.

5GF-16150-00-00

Unavailable

7

PLATE, THRUST 1

30X-16154-00-00

$25.99

8

BOSS, CLUTCH

5GF-16371-00-00

$177.99

9

PLATE, FRICTION

3XJ-16321-00-00

$22.99

10

PLATE, CLUTCH 1

3XJ-16324-10-00

$13.49

11

PLATE, PRESSURE 1

4GY-16351-00-00

$64.99

12

SPRING (583 CLUTCH)

90501-23391-00

$7.49

13

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

14

PLATE, PUSH

1W1-16358-01-00

$23.99

15

ROD, PUSH 1

5GF-16356-00-00

Unavailable

16

WASHER(6TA)

92907-06200-00

Unavailable

17

NUT(6TA)

95317-06600-00

Unavailable

18

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

19

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

20

PUSH LEVER ASSY

4GY-16380-01-00

Unavailable

21

SCREW 425163430000

90149-08067-00

Unavailable

22

GASKET

90430-08119-00

Unavailable

23

SPRING, TORSION(4GY)

90508-206A6-00

Unavailable

24

CIRCLIP(1EV)

99009-20500-00

Unavailable

25

OIL SEAL (4G0)

93102-12224-00

Unavailable

26

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

27

ROD, PUSH 2

4GY-16357-00-00

Unavailable

28

BALL (498)

93511-32027-00

Unavailable

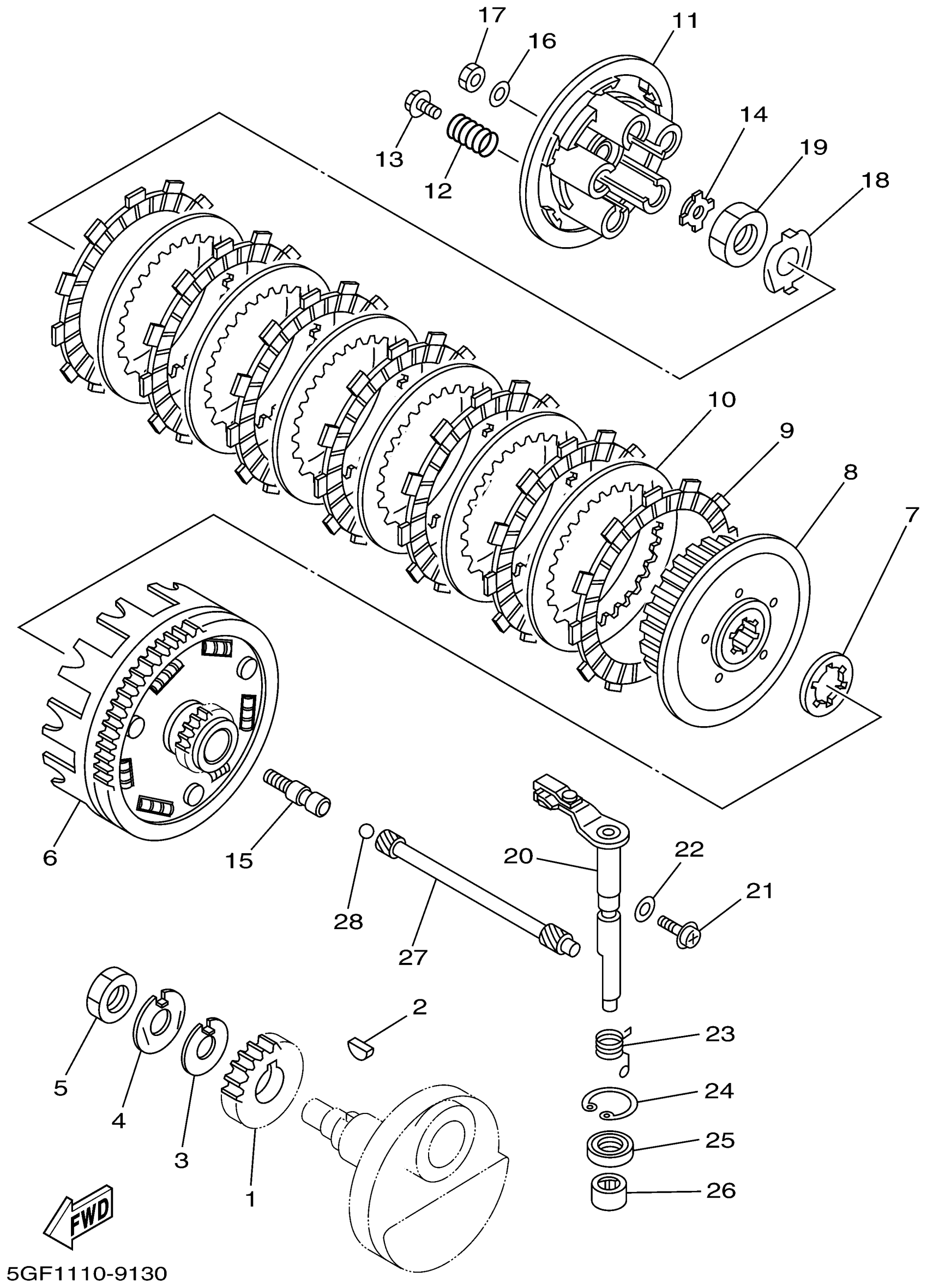

Yamaha TTR250PC (TTR250 CA) 5GFB 2002 CLUTCH Diagram

GEAR, PRIMARY DRIVE

KEY, WOODRUFF(4GY)

WASHER, CLAW(4GY)

WASHER, LOCK(4GY)

NUT

PRIMARY DRIVEN GEAR COMP.

PLATE, THRUST 1

BOSS, CLUTCH

PLATE, FRICTION

PLATE, CLUTCH 1

PLATE, PRESSURE 1

SPRING (583 CLUTCH)

SCREW, WITH WASHER (583)

PLATE, PUSH

ROD, PUSH 1

WASHER(6TA)

NUT(6TA)

WASHER, LOCK(4KB)

NUT, HEXAGON (30X)

PUSH LEVER ASSY

SCREW 425163430000

GASKET

SPRING, TORSION(4GY)

CIRCLIP(1EV)

OIL SEAL (4G0)

BRG,CYL-CAL ROLLER 6G TM

ROD, PUSH 2

BALL (498)
