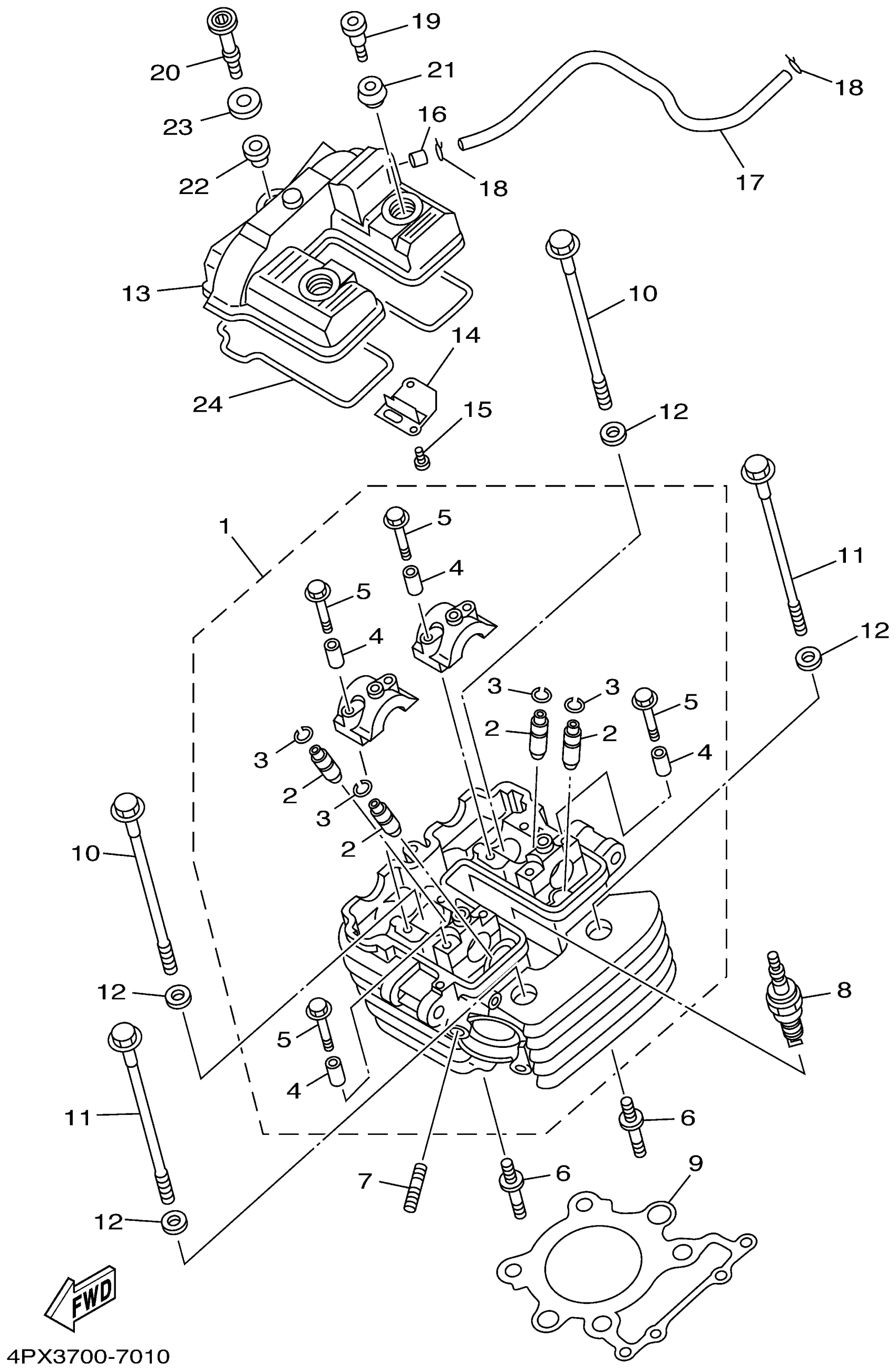

Yamaha TTR250NC (TTR250 CA) 5GF8 2001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

4GY-11102-03-00

Unavailable

2

GUIDE, INTAKE VALVE

4GY-11133-10-00

Unavailable

3

CIRCLIP(1AA)

93440-09141-00

$2.29

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

. BOLT, FLANGE

90105-06026-00

Unavailable

6

BOLT, STUD(4GY)

90116-10578-00

Unavailable

7

BOLT, STUD 2

95617-08325-00

Unavailable

8

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

9

GASKET, CYLINDER HEAD 1

4GY-11181-01-00

$67.99

10

BOLT, FLANGE

90105-10608-00

Unavailable

11

BOLT, FLANGE

90105-10608-00

Unavailable

12

WASHER, PLATE (26H)

90201-102G9-00

$9.49

13

COVER, CYLINDER HEAD 1

4RR-11191-02-00

Unavailable

14

PLATE, BREATHER

4RR-11165-01-00

Unavailable

15

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

16

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

17

PIPE, BREATHER 1

4RR-11166-00-00

Unavailable

18

CLIP (4X4)

90467-12052-00

Unavailable

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

BOLT (4V8)

90109-06605-00

Unavailable

21

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

22

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

23

WASHER(46X)

90209-11262-00

Unavailable

24

GASKET, HEAD COVER 1

4GY-11193-00-00

Unavailable
