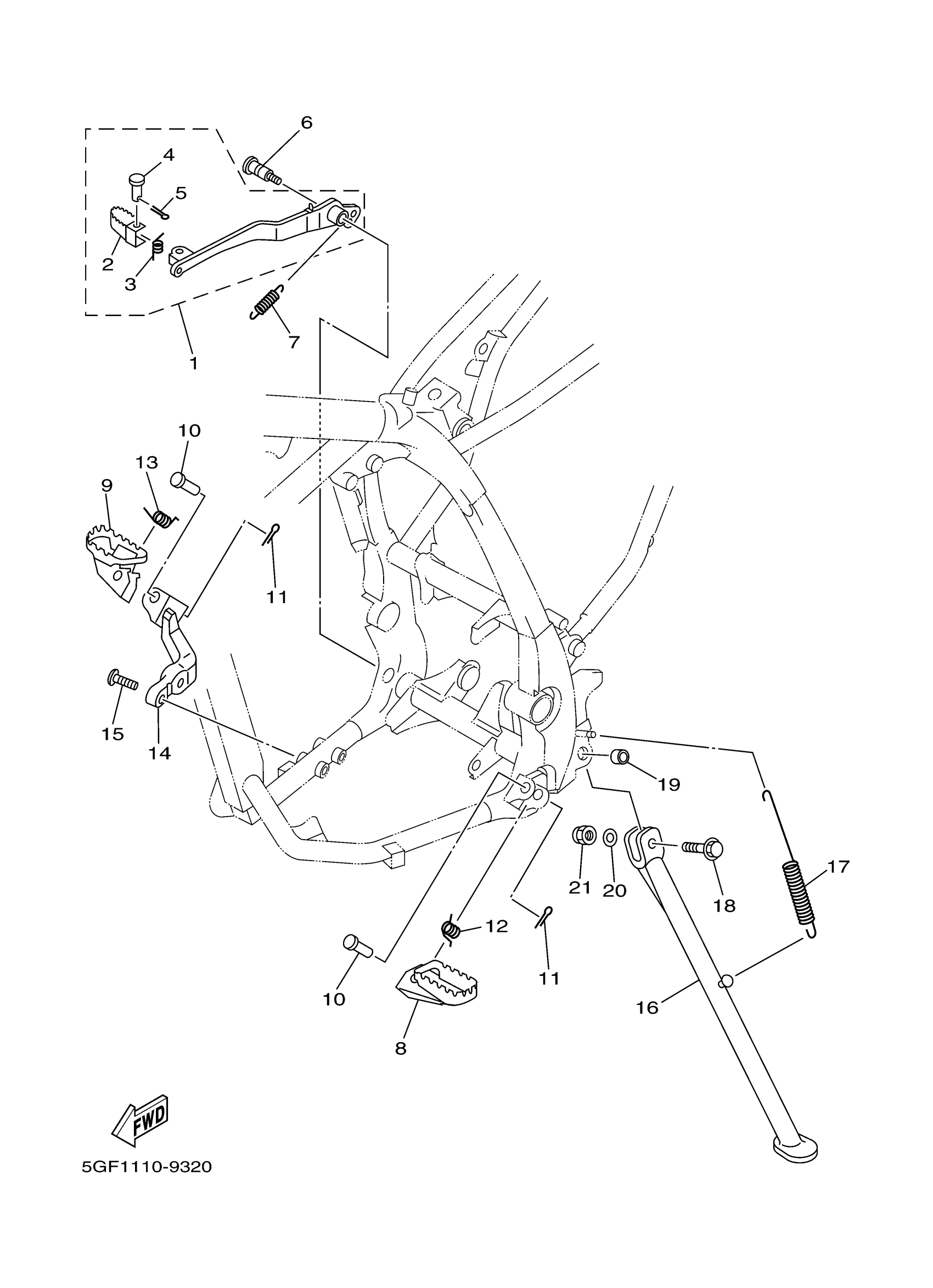

Yamaha TTR250MC (TTR250) 5GF5 2000 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5GF-27200-00-00

Unavailable

2

PEDAL, BRAKE

4TP-27242-00-00

$22.52

3

SPRING, TORSION (1W2)

90508-14352-00

$6.43

4

PIN, COTTER (1W2)

91701-06022-00

$1.69

5

PIN, COTTER (648)

91490-20015-00

$1.72

6

BOLT

4GY-27217-10-00

$14.07

7

SPRING, TENSION(47X)

90506-20369-00

Unavailable

8

FOOTREST 1

4DA-27411-00-00

Unavailable

9

FOOTREST 2

4GY-27421-00-00

Unavailable

10

PIN, CLEVIS(2HJ)

90240-10117-00

$10.69

11

PIN, COTTER

91490-25020-00

$2.73

12

SPRING, TORSION(3JD)

90508-28777-00

$5.30

13

SPRING, TORSION(4GY)

90508-284A7-00

$5.18

14

BRACKET, FOOTREST 2

4GY-27422-00-00

$103.94

15

BOLT, BUTTON

92017-10030-00

$4.70

16

STAND, SIDE

4GY-27311-01-00

Unavailable

17

SPRING, TENSION(4BF)

90506-35474-00

Unavailable

18

BOLT, WASHER BASED(4KD)

90105-10728-00

Unavailable

19

COLLAR(3XP)

90387-1003G-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

NUT, U

95617-10100-00

Unavailable
