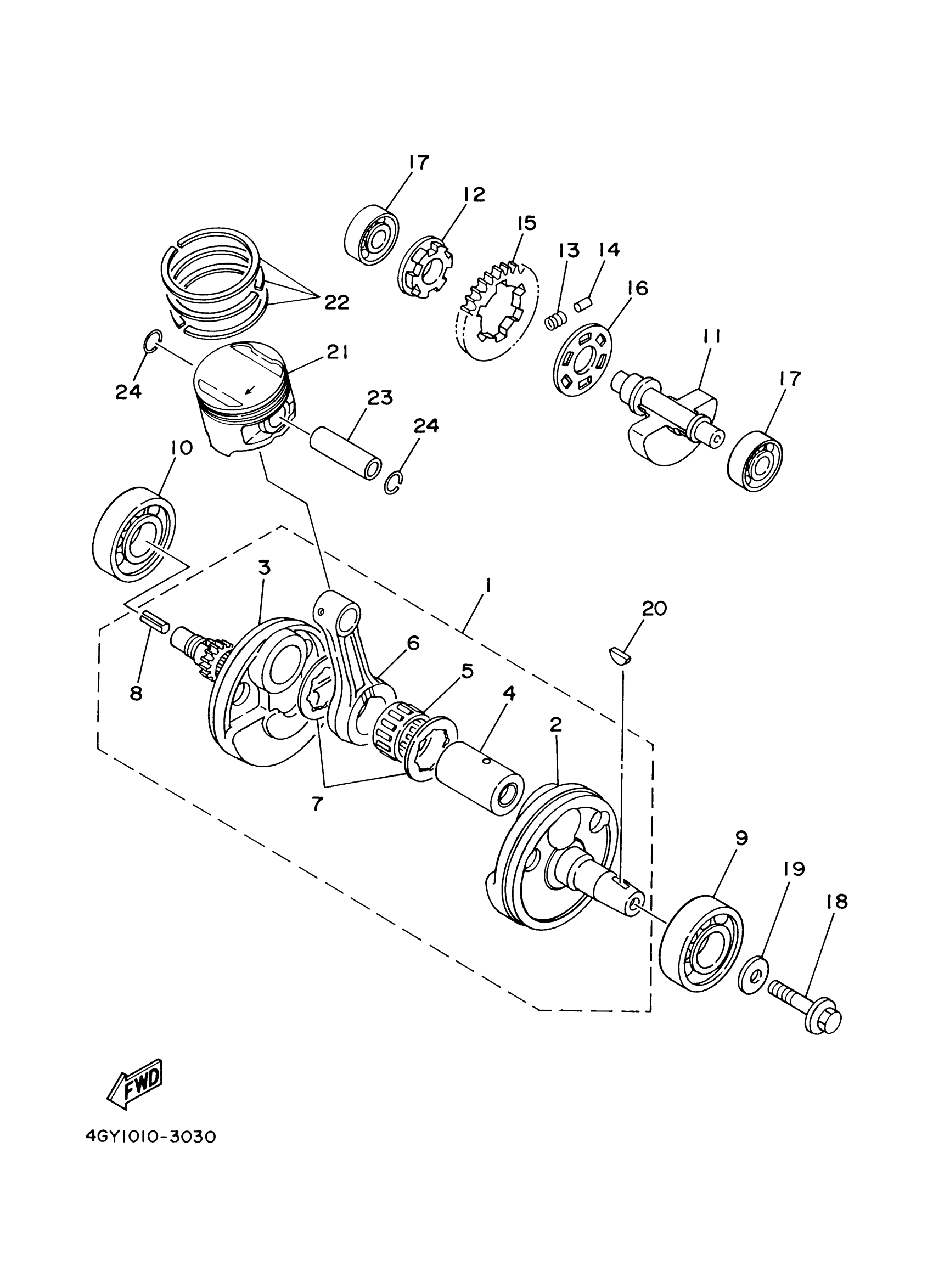

Yamaha TTR250MC (TTR250) 5GF5 2000 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

4GY-11400-00-00

Unavailable

2

CRANK 1

4GY-11412-00-00

Unavailable

3

. CRANK 2

4GY-W1142-00-00

Unavailable

4

PIN, CRANK 1

4GY-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL(4GY)

93310-632D7-00

Unavailable

6

ROD, CONNECTING

4GY-11651-00-00

Unavailable

7

WASHER(4GY)

90209-32328-00

$7.49

8

PIN, SPRING(4GY)

90254-07017-00

Unavailable

9

BEARING(4GY)

93306-37804-00

$76.99

10

BEARING

93306-37807-00

Unavailable

11

WEIGHT 1

4GY-11454-00-00

Unavailable

12

BOSS, BUFFER

4GY-11496-00-00

Unavailable

13

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

14

PIN, DOWEL

93605-10090-00

$8.49

15

GEAR, BALANCE WT

4GY-11531-00-00

Unavailable

16

PLATE, ABSORBER

4GY-11533-00-00

Unavailable

17

BEARING

93306-30211-00

Unavailable

18

BOLT, WASHER BASED(1WG)

90105-10430-00

Unavailable

19

WASHER, PLATE (4X7)

90201-105A2-00

Unavailable

20

KEY, WOODRUFF

90280-05001-00

Unavailable

21

PISTON (STD)

4GY-11631-00-C0

Unavailable

21

PISTON (0.50MM O/S)

4GY-11636-00-00

Unavailable

21

PISTON (1.00MM O/S)

4GY-11638-00-00

Unavailable

22

PISTON RING SET (STD)

4GY-11603-00-00

Unavailable

22

PISTON RING SET (0.50MM O/S)

4GY-11605-00-00

Unavailable

22

PISTON RING SET (1.00MM O/S)

4GY-11607-00-00

Unavailable

23

PIN, PISTON

30X-11633-03-00

Unavailable

24

CIRCLIP (2F1)

93450-19052-00

Unavailable
