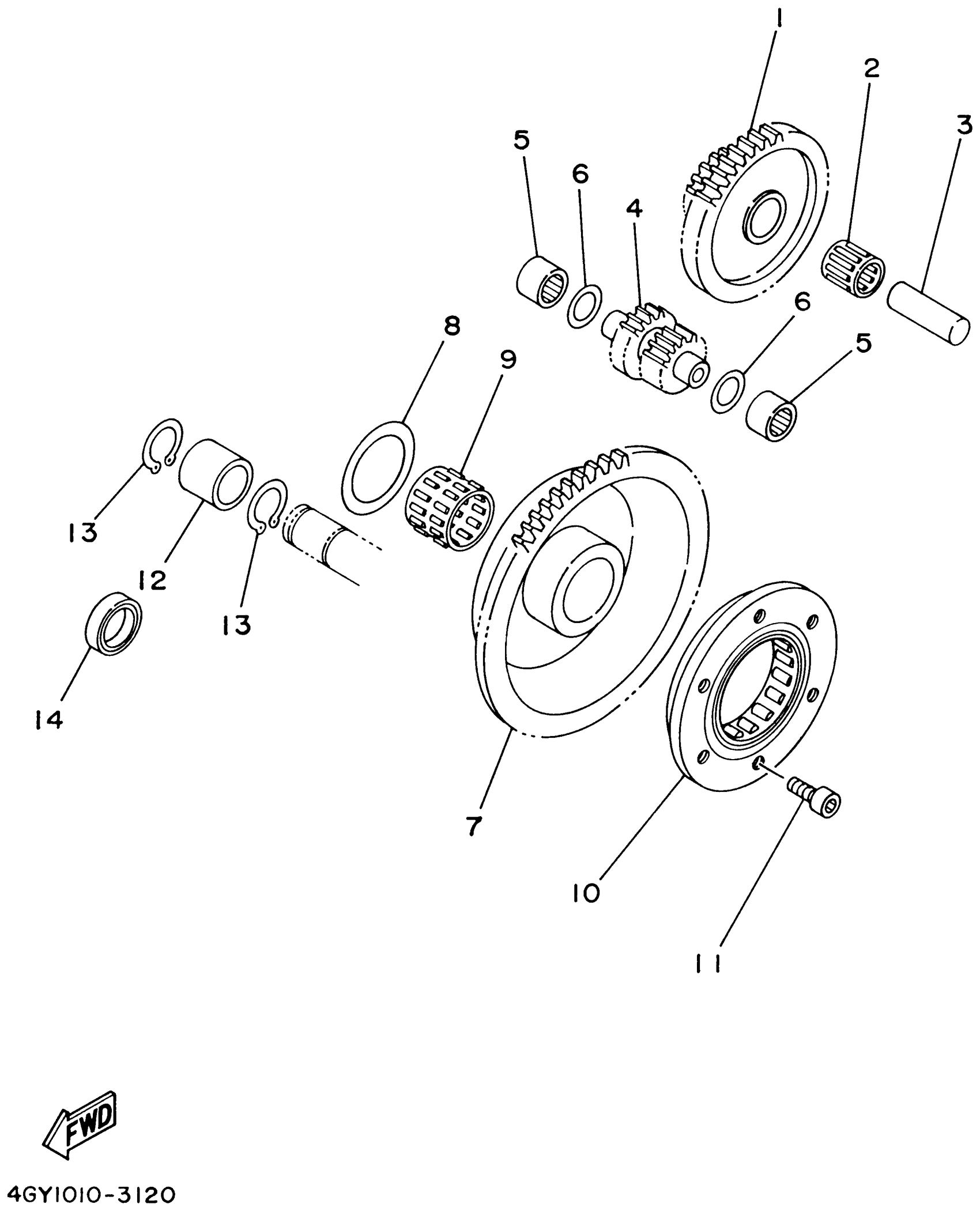

Yamaha TTR250LC (TTR250 CA) 5GF2 1999 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

4GY-15512-01-00

Unavailable

2

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$35.99

3

SHAFT 1

4GY-15521-00-00

$21.99

4

GEAR, IDLER 2

4GY-15517-01-00

Unavailable

5

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

$36.99

6

SHIM

296-13147-00-00

$3.54

7

GEAR 3

4GY-15515-00-00

$146.99

8

WASHER PLATE 371115580000

90201-25291-00

$10.49

9

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

$45.99

10

STARTER ONE-WAY ASSY

4GY-15590-00-00

Unavailable

11

BOLT,SOCKET

91317-06016-00

$1.25

12

SPACER(3RW)

90560-17368-00

$7.49

13

CIRCLIP(1EY)

99009-17400-00

$4.73

14

PLUG, BLIND 1

55X-15167-00-00

$12.99
