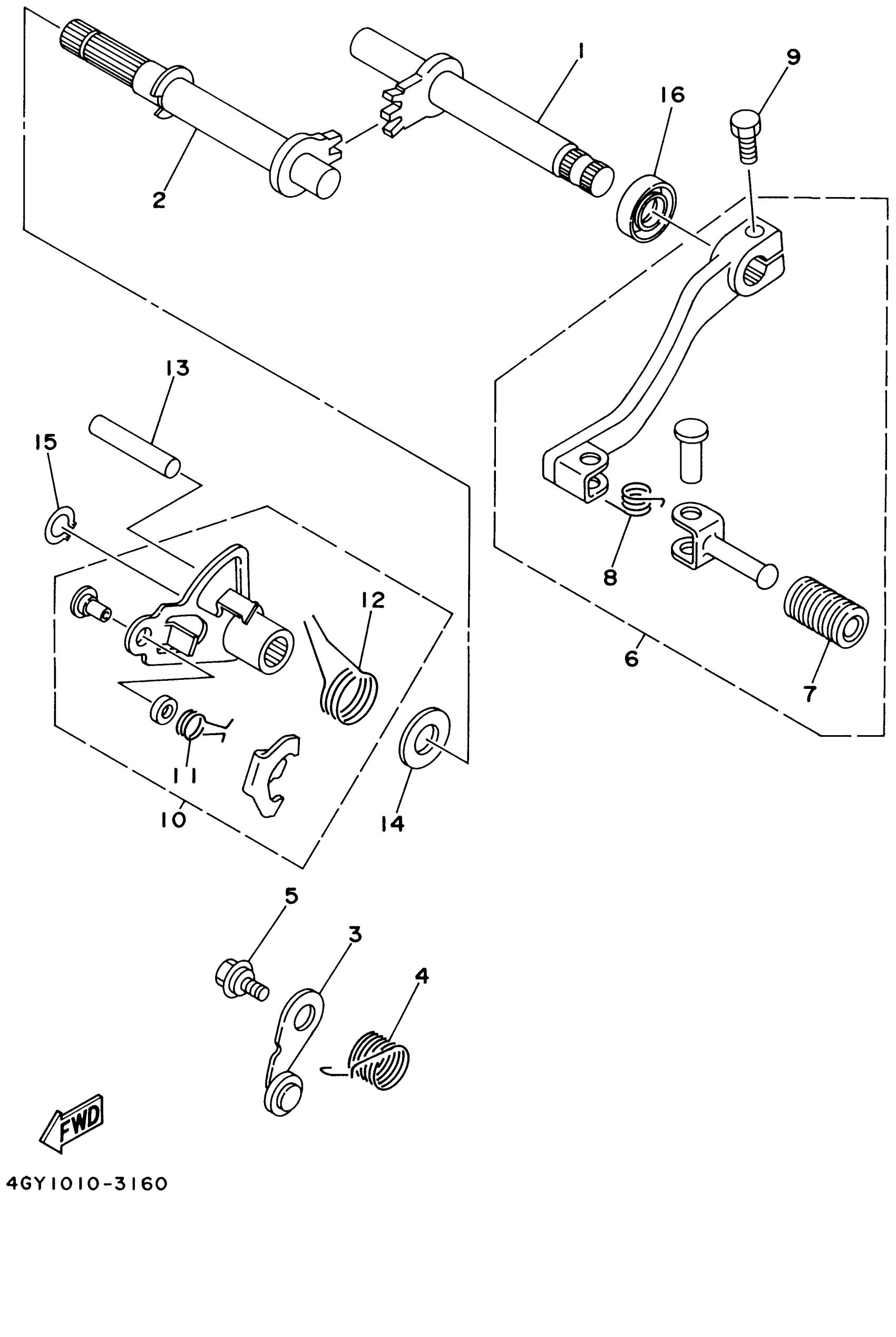

Yamaha TTR250LC (TTR250 CA) 5GF2 1999 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

4GY-18101-00-00

Unavailable

2

SHIFT SHAFT ASSY 2

4GY-18102-00-00

Unavailable

3

STOPPER LEVER ASSY

4GY-18140-00-00

Unavailable

4

SPRING, TORSION (17W)

90508-26561-00

$9.49

5

BOLT

90109-06190-00

$4.72

6

SHIFT PEDAL ASSY

4GY-18110-00-00

$57.99

7

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

8

SPRING, TORSION (5Y1)

90508-14525-00

$0.90

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

SHIFT LEVER ASSY

4GY-18120-01-00

Unavailable

11

SPRING, TORSION (3R6)

90508-09420-00

$1.86

12

SPRING, TORSION

90508-32142-00

$5.60

13

PIN, DOWEL(4GY)

93608-43228-00

$4.94

14

WASHER PLATE 102181410000

90201-12474-00

$7.49

15

CIRCLIP(J51)

99080-09600-00

$2.55

16

OIL SEAL (3Y1)

93102-14209-00

Unavailable
