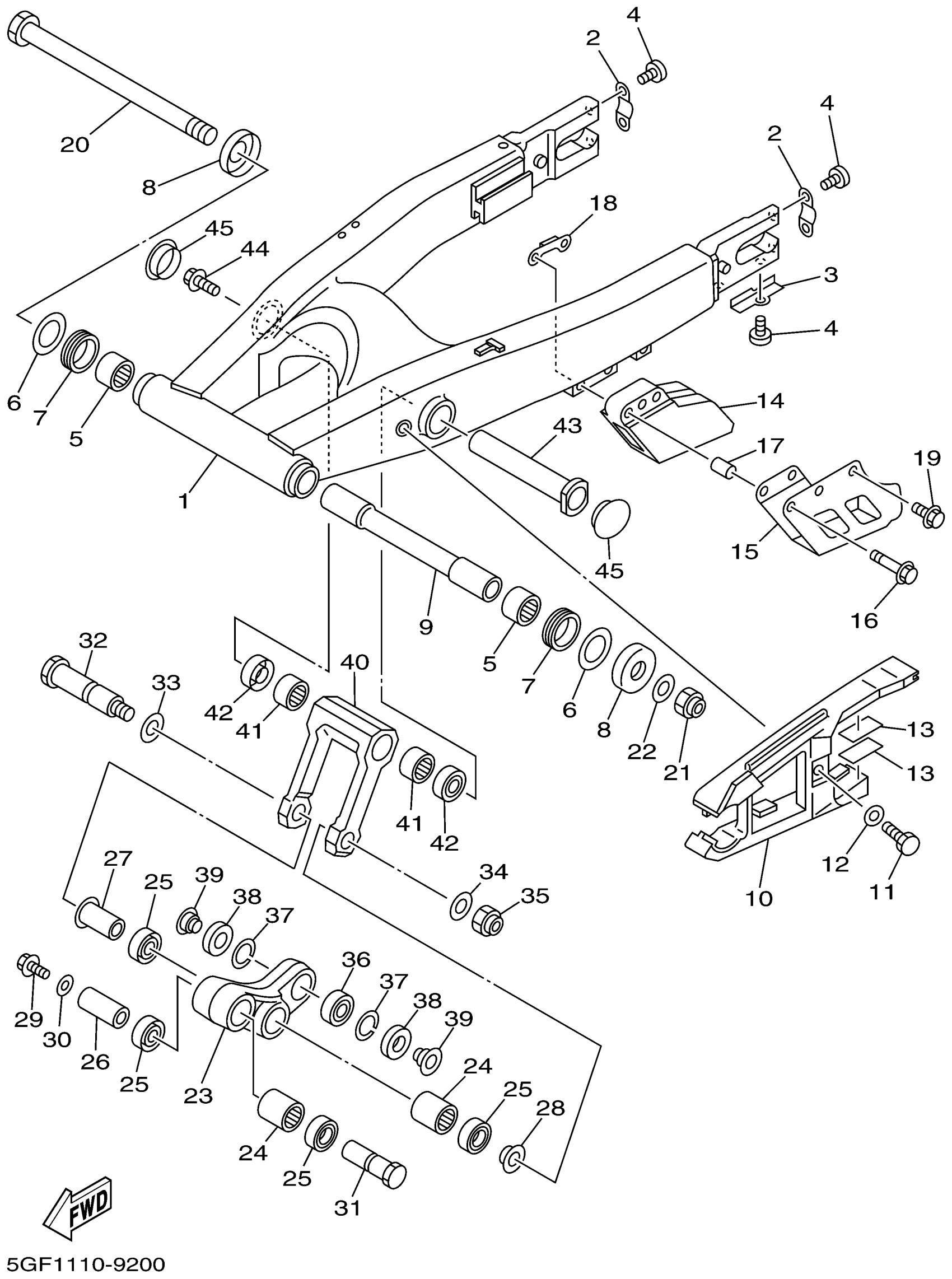

Yamaha TTR250LC (TTR250 CA) 5GF2 1999 REAR ARM Diagram
#
1
REAR ARM COMP.
5GF-22110-00-00
Unavailable
2
END 3
4GY-22177-00-00
Unavailable
3
BRACKET
4GY-22165-00-00
Unavailable
5
BEARING, CYLINDRICAL(4PT)
93315-22251-00
Unavailable
10
SEAL, GUARD
4GY-22151-00-00
Unavailable
15
COVER, THRUST 1
4RR-22128-01-00
Unavailable
16
BOLT, SMALL FLANGE
95027-06050-00
Unavailable
17
COLLAR(1AE)
90387-060N3-00
Unavailable
18
NUT
4RR-22143-00-00
Unavailable
19
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
20
SHAFT, PIVOT
5X6-22141-01-00
Unavailable
21
NUT, SELF-LOCKING
90185-16002-00
Unavailable
22
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
23
ARM, RELAY
4GY-2217A-00-00
Unavailable
24
BEARING, CYLINDRICAL(4RR)
93315-32053-00
Unavailable
25
OIL SEAL
93109-20076-00
Unavailable
26
COLLAR
90387-166X1-00
Unavailable
27
COLLAR(4RR)
90387-1606R-00
Unavailable
28
COLLAR(1LV)
90387-164N2-00
Unavailable
29
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
30
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
31
NUT(4RR)
90179-10665-00
Unavailable
32
BOLT, UNION(4RR)
90401-14163-00
Unavailable
33
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
34
WASHER PLATE (3L6)
90201-14740-00
Unavailable
35
NUT, SELF-LOCKING
90185-14112-00
Unavailable
36
BEARING(3XP)
93399-99935-00
Unavailable
37
CIRCLIP (23X)
93440-30113-00
Unavailable
38
SEAL, DUST
3XJ-22475-00-00
Unavailable
39
COLLAR(3XJ)
90387-103X9-00
Unavailable
40
ROD, CONNECTING 1
4GY-2217F-00-00
Unavailable
41
BEARING, CYLINDRICAL(4RR)
93315-32052-00
Unavailable
42
OIL SEAL
93109-20076-00
Unavailable
43
NUT
90179-12001-00
Unavailable
44
BOLT, FLANGE(4GY)
95817-12016-00
Unavailable
45
COVER
1HX-2135F-10-00
Unavailable
