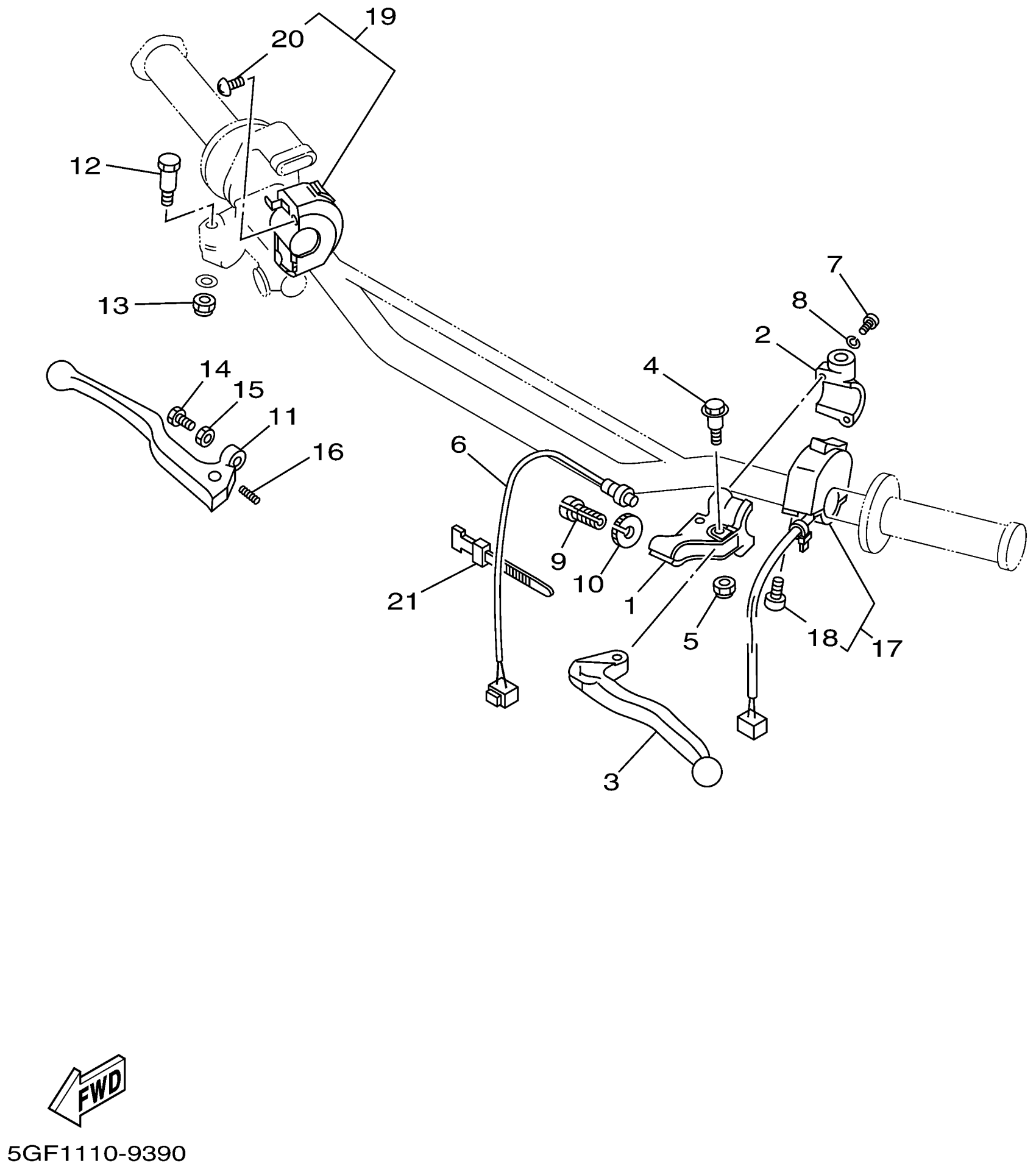

Yamaha TTR250LC (TTR250 CA) 5GF2 1999 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

3

LEVER 1

4GY-83912-00-00

$28.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SWITCH

4GY-82917-01-00

$45.99

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

LEVER 2

55Y-83922-02-00

$37.99

12

BOLT(48Y)

90109-062A8-00

$7.49

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SCREW (2L0)

90149-06131-00

$8.49

15

NUT HEXAGON 306839270000

90170-06010-00

$8.49

16

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

17

SWITCH, HANDLE 1

5GF-83976-00-00

Unavailable

18

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

19

SWITCH, HANDLE 2

3LD-83975-11-00

Unavailable

20

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable
