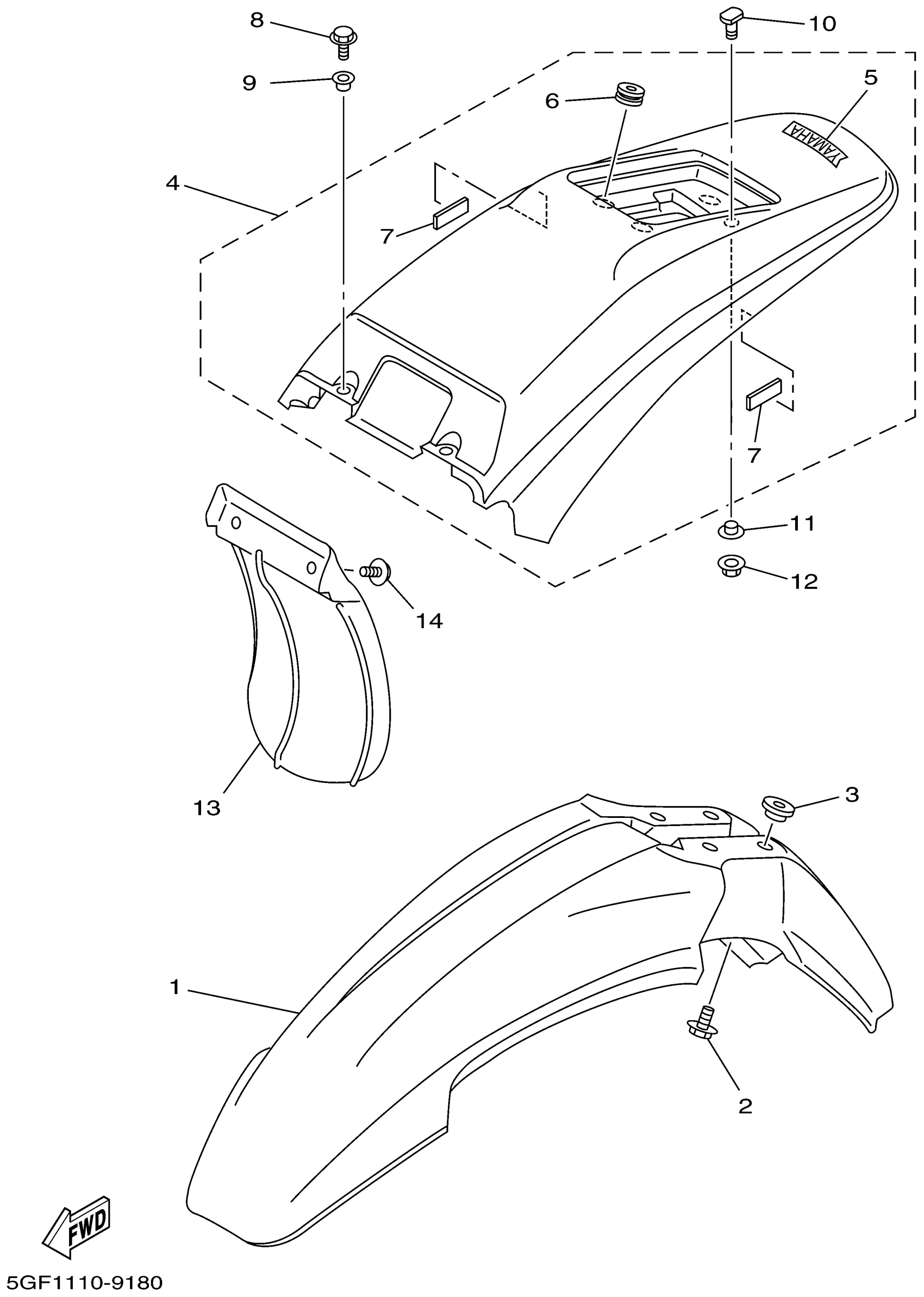

Yamaha TTR250LC (TTR250 CA) 5GF2 1999 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4GY-21511-40-00

$51.67

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

COLLAR (8G8)

90387-06681-00

$6.17

4

REAR FENDER C0MP.

4GY-Y2161-S0-00

Unavailable

5

EMBLEM, YAMAHA

99241-00080-00

$11.11

6

GROMMET 839774310000

90480-14023-00

$4.34

7

DAMPER, SIDE COVER

3XV-21717-00-00

$2.01

8

BOLT, HEXAGON

97017-06016-00

$5.76

9

COLLAR

90387-06107-00

$6.57

10

BOLT(55T)

90109-064A5-00

$2.67

11

COLLAR (8G8)

90387-06648-00

$6.62

12

NUT,SELF-LOCKING

95607-06200-00

$9.94

13

GUARD, FLAP

4GY-21642-00-00

$39.01

14

BOLT, WITH WASHER(55K)

90119-06117-00

$3.49
