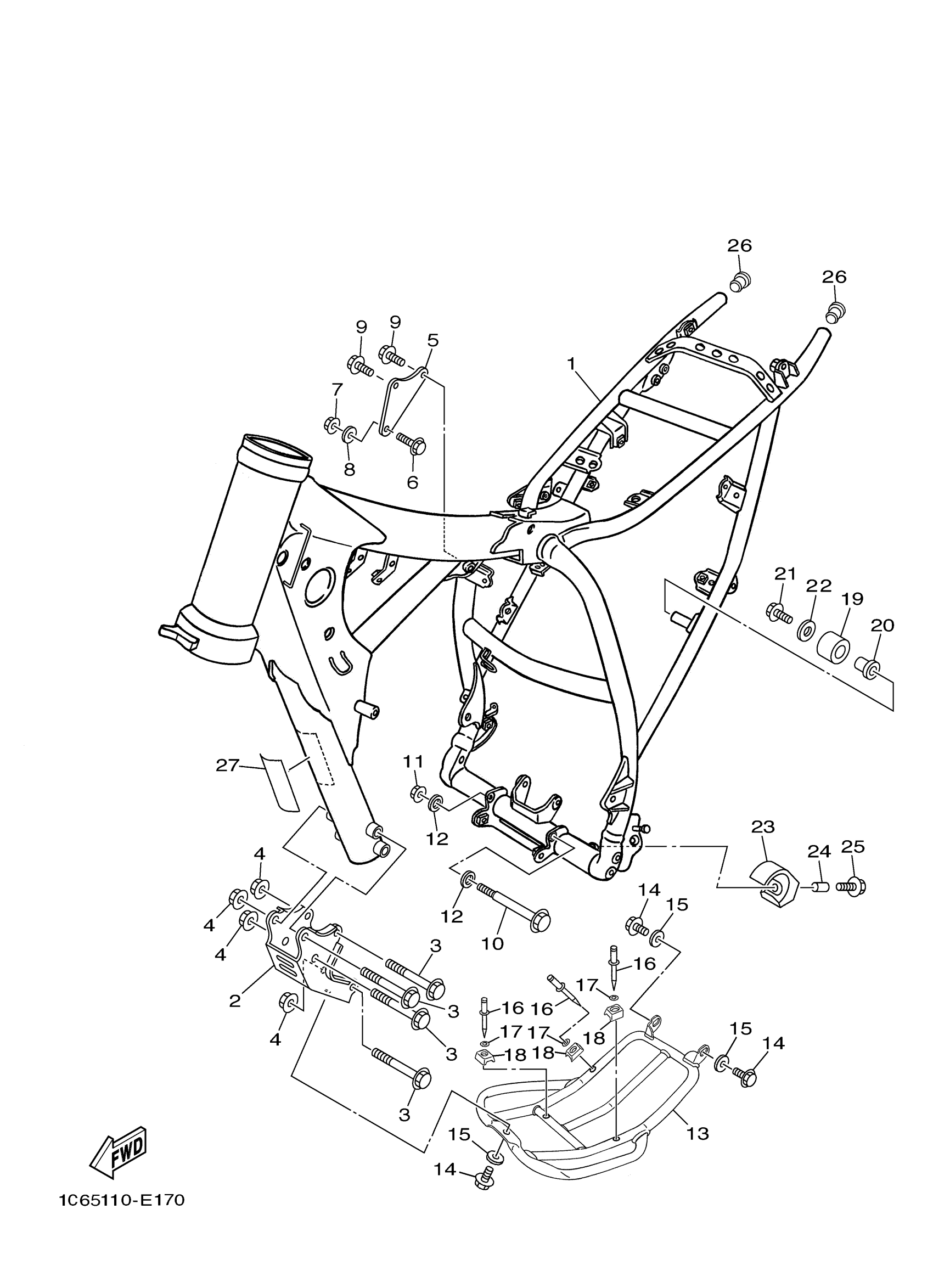

Yamaha TTR230X (TTR230) 1C6B 2008 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1C6-F1110-10-33

Unavailable

2

STAY, ENGINE 2

1C6-F1316-10-00

Unavailable

3

BOLT, FLANGE

90105-08852-00

$4.29

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

STAY, ENGINE 1

1C6-F1315-00-00

Unavailable

6

BOLT, FLANGE

95817-08055-00

$4.21

7

NUT, SELF-LOCKING

90185-08169-00

$8.49

8

WASHER, PLATE

90201-09801-00

Unavailable

9

BOLT, WASHER BASED(JN9)

90105-082A0-00

$4.94

10

BOLT, FLANGE

90105-08856-00

Unavailable

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

WASHER, PLATE

90201-09801-00

Unavailable

13

PROTECTOR, ENGINE

1C6-F1471-00-00

$160.99

14

BOLT, FLANGE

95817-10020-00

$8.49

15

WASHER, PLATE(47X)

90201-101J1-00

$8.49

16

RIVET,BLIND

90267-40080-00

Unavailable

17

WASHER, PLATE

90201-042E0-00

Unavailable

18

DAMPER, RUBBER 1

1C6-F1485-00-00

Unavailable

19

TENSIONER

5RM-F2178-00-00

Unavailable

20

BUSH

5RM-F2184-00-00

Unavailable

21

BOLT, SMALL FLANGE

95027-08012-00

Unavailable

22

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

23

TENSIONER SET

99999-04397-00

Unavailable

24

COLLAR (3H5)

90387-060A3-00

Unavailable

25

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

26

PLUG(55K)

90338-16148-00

Unavailable

27

PLATE, EPA

1C6-2179C-20-00

Unavailable
