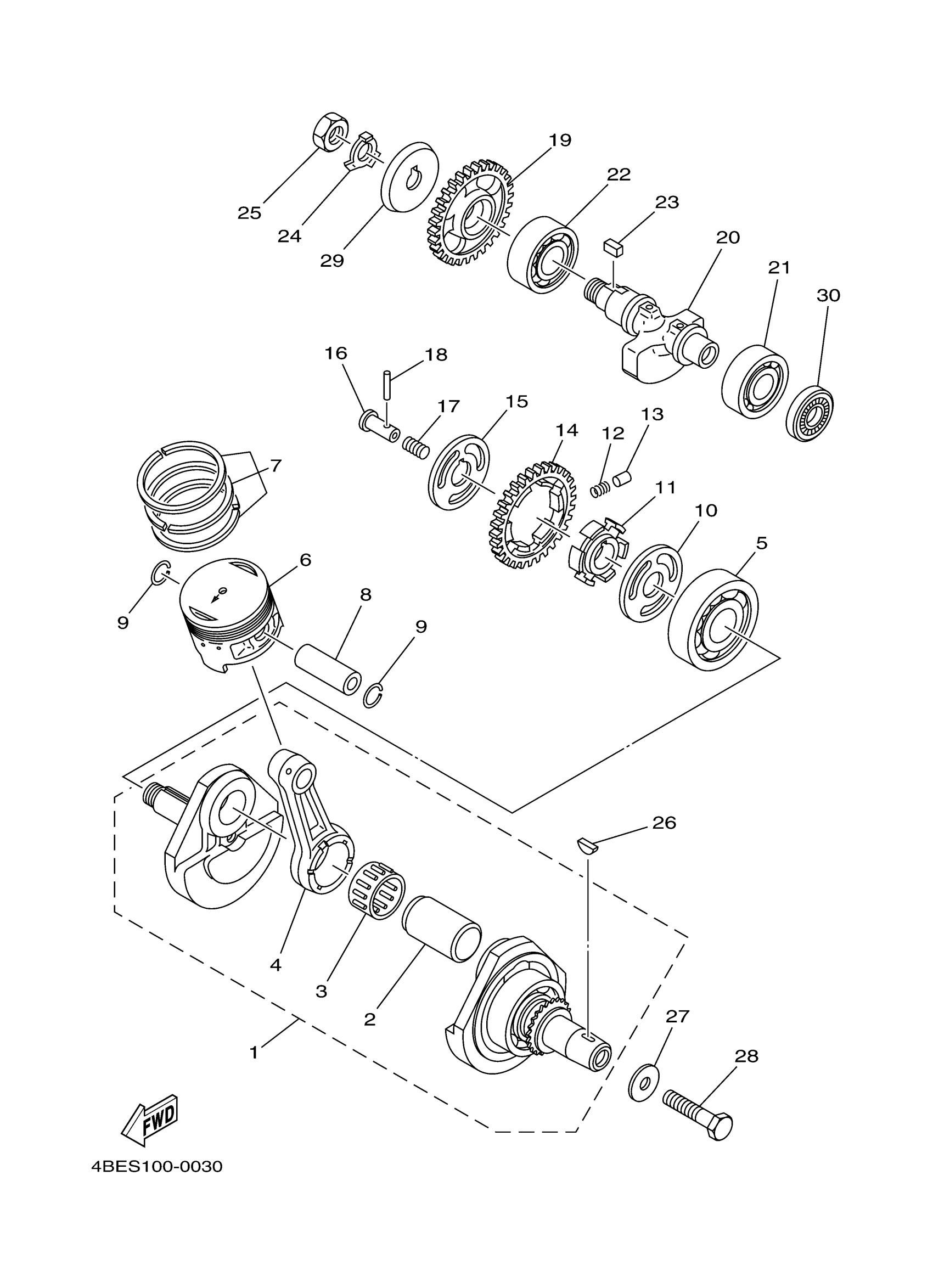

Yamaha TTR230X (TTR230) 1C6B 2008 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

3RW-11400-01-00

$539.99

2

PIN, CRANK 1

5H0-11681-00-00

Unavailable

3

BEARING, CYLINDRICAL (5H0)

93310-530J3-00

$62.99

4

ROD, CONNECTING

29U-11651-00-00

$121.99

5

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

6

PISTON (STD)

1KH-11631-01-C0

$129.99

6

PISTON (0.50MM O/S)

1KH-11636-01-00

$123.99

6

PISTON (1.00MM O/S)

1KH-11638-01-00

$123.99

7

PISTON RING SET

29U-11610-00-00

$57.99

7

PISTON RING SET

29U-11610-20-00

$57.99

7

PISTON RING SET (STD)

4BD-11610-00-00

Unavailable

8

PIN, PISTON

58L-11633-00-00

$32.99

9

CIRCLIP (1L9)

93450-17044-00

$8.49

10

WASHER, PLATE (5H0)

90201-201E4-00

Unavailable

11

BOSS, BUFFER

5H0-11496-00-00

Unavailable

12

SPRING COMPRESSION341114880000

90501-21133-00

Unavailable

13

PIN, DOWEL

93605-10090-00

Unavailable

14

GEAR, DRIVE

5H0-11536-00-00

Unavailable

15

WASHER, CLAW (5H0)

90214-20023-00

Unavailable

16

PIN, CLEVIS (5H0)

90240-07083-00

Unavailable

17

SPRING, COMPRESSION (5H0)

90501-07629-00

Unavailable

18

PIN, DOWEL (5H0)

93602-13177-00

Unavailable

19

BALANCER WEIGHT GEAR COMP.

2LN-11530-00-00

Unavailable

20

WEIGHT 1

1KH-11454-00-00

Unavailable

21

BEARING

93306-20532-00

Unavailable

22

BEARING

93306-30443-00

Unavailable

23

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

24

WASHER, LOCK (15Y)

90215-14205-00

Unavailable

25

NUT (5H0)

90170-14284-00

Unavailable

26

KEY, WOODRUFF

90280-05001-00

Unavailable

27

WASHER, PLATE(52H)

90201-102J5-00

Unavailable

28

BOLT (341)

90101-10188-00

Unavailable

29

PLATE, BREATHER 2

1KH-11145-00-00

Unavailable

30

OIL SEAL (5Y1)

93101-25106-00

Unavailable
