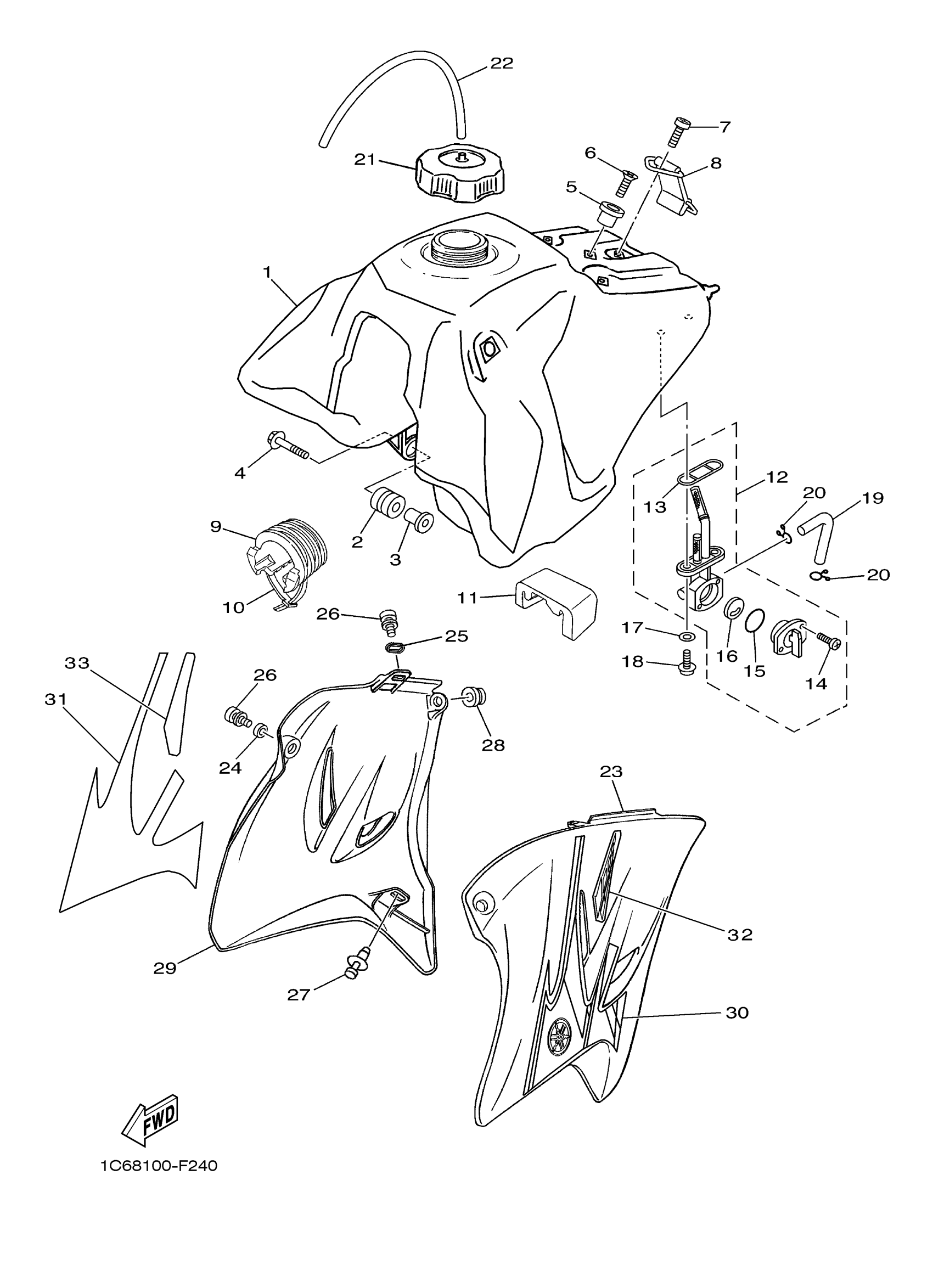

Yamaha TTR230W (TT-R230) 1C68 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1C6-24110-00-00

Unavailable

2

GROMMET(4AA)

90480-18549-00

$10.49

3

WASHER, SPECIAL

3JD-24186-00-00

$13.49

4

BOLT 1

5XE-24176-10-00

$6.99

5

BRACKET, SEAT

4EW-2412F-00-00

$14.49

6

SCREW, FLAT

98707-06025-00

$8.49

7

SCREW, BINDING

98907-06016-00

$9.49

8

BAND, TANK FITTING 1

1C6-F4173-00-00

$11.49

9

DAMPER, LOCATING 1

1C6-F4181-00-00

$8.49

10

CLAMP(MF1)

90464-15152-00

$5.60

11

DAMPER, LOCATING 2

1C6-F4182-00-00

$11.99

12

FUEL COCK ASSY 1

1C6-24500-10-00

$64.99

13

O-RING

4X8-24512-00-00

$8.99

14

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

15

SEAL, COCK

3AJ-24534-01-00

$10.99

16

VALVE PACKING

3AC-24523-00-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

CAP ASSY

2FJ-24610-20-00

Unavailable

22

HOSE (L508)

90445-081F1-00

Unavailable

23

SCOOP, AIR 1

1C6-F137W-00-00

Unavailable

24

COLLAR(3HN)

90387-060T4-00

Unavailable

25

COLLAR

1B2-F1749-00-00

Unavailable

26

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

27

RIVET(4JH)

90269-07076-00

Unavailable

28

GROMMET(4FU)

90480-13567-00

Unavailable

29

SCOOP, AIR 2

1C6-F137X-00-00

Unavailable

30

GRAPHIC 1

1C6-F137N-20-00

Unavailable

31

GRAPHIC 2

1C6-F137P-20-00

Unavailable

32

MARK 1

1C6-F4235-00-00

Unavailable

33

MARK 2

1C6-F4236-00-00

Unavailable
