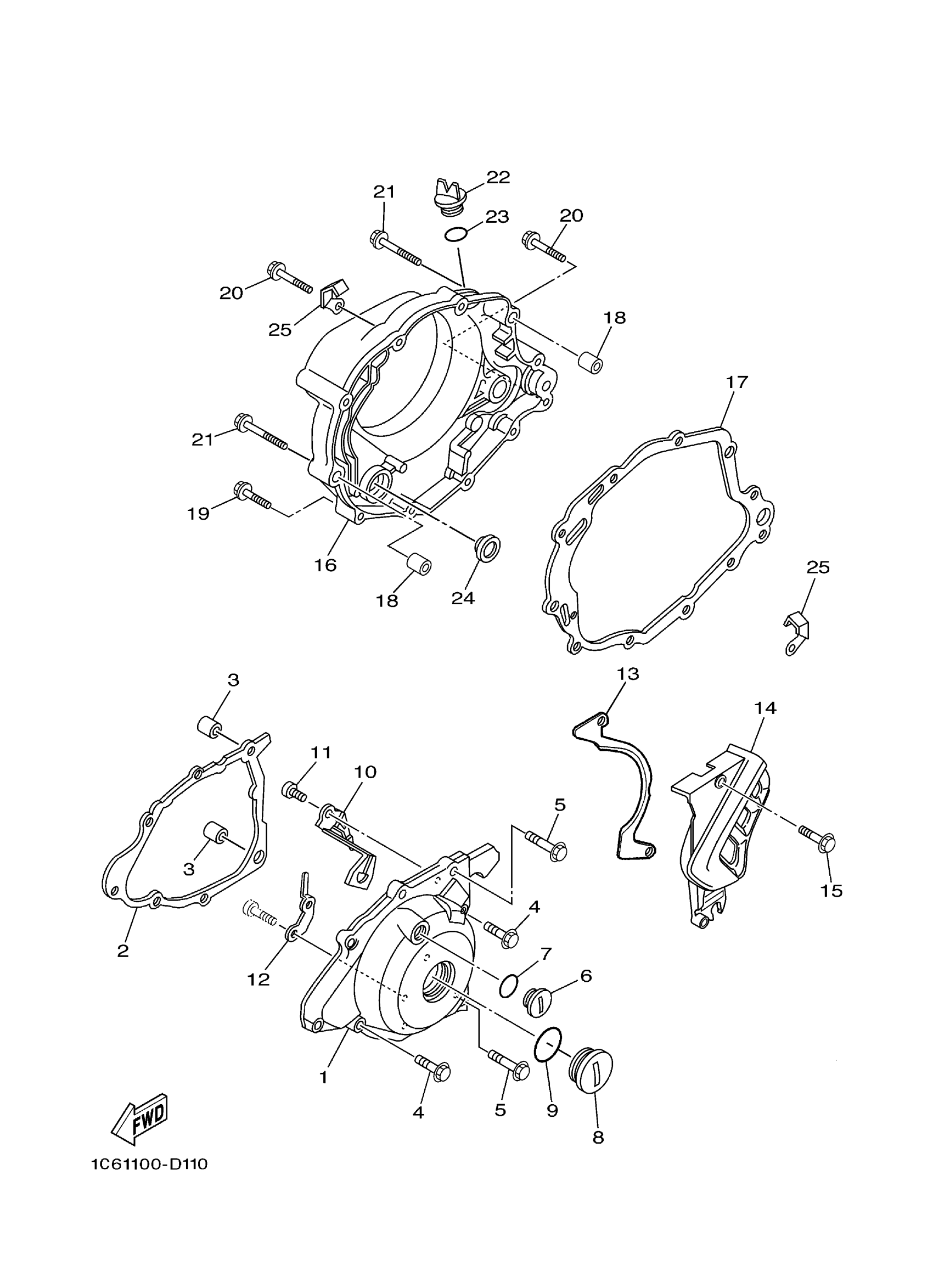

Yamaha TTR230W (TT-R230) 1C68 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1C6-E5411-00-00

$202.99

2

GASKET, CRANKCASE COVER 1

4BE-15451-03-00

$22.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, SMALL FLANGE

95027-06025-00

$4.16

5

BOLT, SMALL FLANGE

95027-06035-00

$2.22

6

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$23.99

9

O-RING (341)

93210-32172-00

$7.49

10

GUIDE, ROPE

1C6-E5758-00-00

$5.49

11

BOLT, BUTTON HEAD

92017-06010-00

$4.82

12

CLAMP 2

1C6-E5484-00-00

$2.85

13

GUIDE, CHAIN

1C6-E7466-00-00

$37.99

14

CRANKCASE COVER AS

1C6-E5420-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

COVER, CRANKCASE 3

4VW-WE543-00-00

Unavailable

17

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

Unavailable

18

PIN, DOWEL

99530-12016-00

$4.89

19

BOLT, SMALL FLANGE

95027-06025-00

$4.16

20

BOLT, SMALL FLANGE

95027-06035-00

$2.22

21

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

22

PLUG, OIL

3Y1-15363-10-00

Unavailable

23

O-RING (646)

93210-19123-00

Unavailable

24

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

25

CLAMP(4AJ)

90462-08225-00

Unavailable
