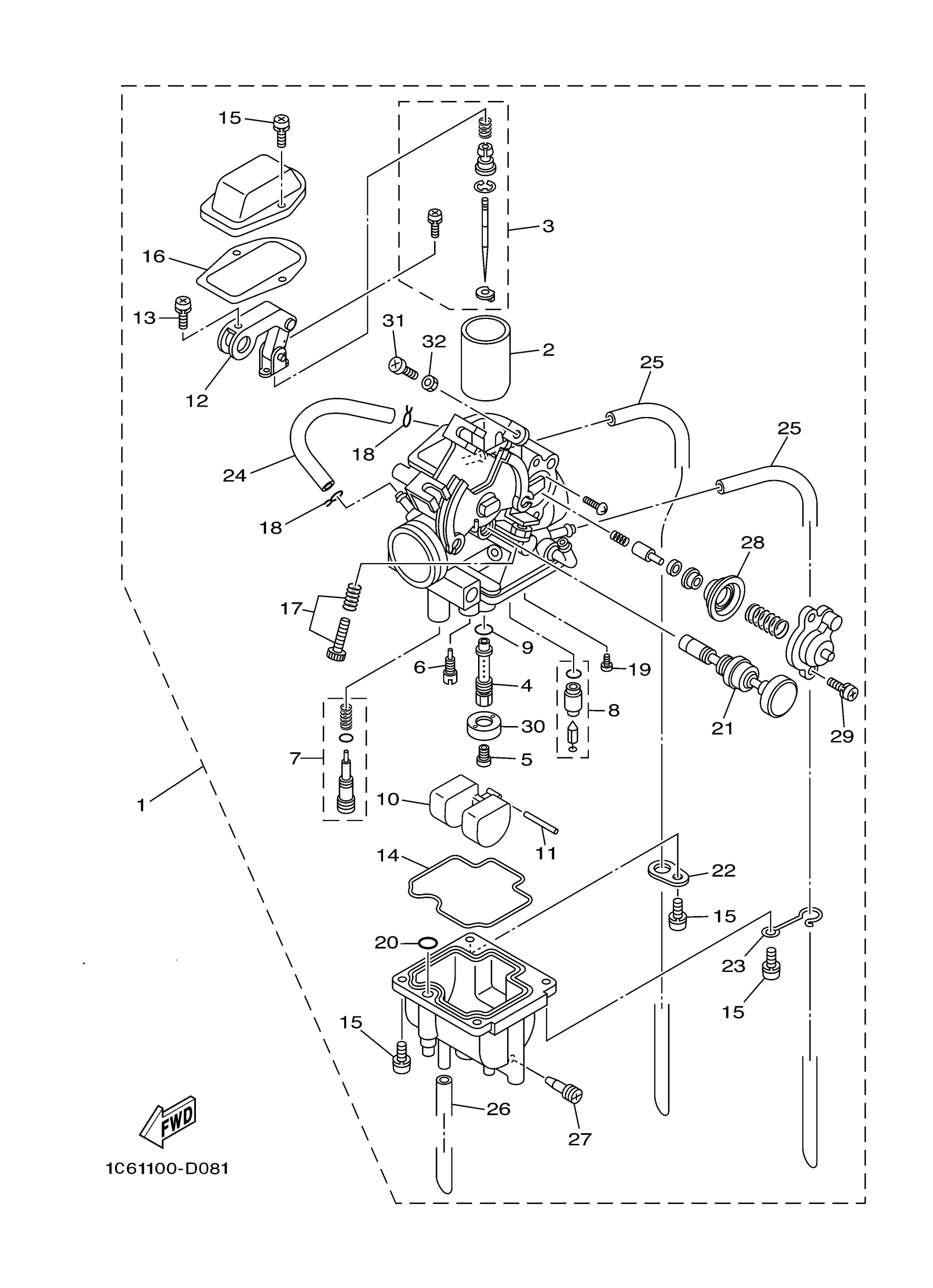

Yamaha TTR230W (TT-R230) 1C68 2007 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1C6-14301-00-00

$675.99

2

VALVE, THROTTLE 2

1XL-14313-27-00

Unavailable

3

NEEDLE SET

1C6-1490J-00-00

Unavailable

4

NOZZLE, MAIN

1C6-14341-00-00

$36.99

5

JET, MAIN (# 125)

288-14343-63-00

$10.99

6

JET, PILOT (#36)

1C6-14342-18-00

$16.49

7

PILOT SCREW SET

1C6-14105-00-00

$18.49

8

NEEDLE VALVE ASSY

4KL-14390-00-00

$38.99

9

GASKET

360-24512-00-00

$9.99

10

FLOAT

25N-14385-00-00

Unavailable

11

. PIN, FLOAT

6E5-14386-01-00

Unavailable

12

BRACKET 1

4PT-14291-10-00

Unavailable

13

SCREW, PAN HEAD

4PT-14325-00-00

$2.29

14

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

$25.99

15

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

16

GASKET

5Y1-14198-00-00

Unavailable

17

STOP SCREW SET

5DS-1490K-00-00

Unavailable

18

CLIP

5Y1-14159-00-00

Unavailable

19

SCREW, BIND(6L2)

98980-04006-00

Unavailable

20

GASKET

5Y1-14536-00-00

Unavailable

21

PLUNGER, STARTER

1KH-14371-01-00

Unavailable

22

PLATE

5Y1-14146-00-00

Unavailable

23

PLATE

42U-14146-00-00

Unavailable

24

PIPE

1KH-14149-00-00

Unavailable

25

PIPE

1C6-14197-00-00

Unavailable

26

PIPE

1C6-14396-00-00

Unavailable

27

AIR SCREW SET

14T-14104-00-00

Unavailable

28

DIAPHRAGM SET 1

5Y1-1490A-00-00

Unavailable

29

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

30

WASHER, MAIN JET

1KH-14153-00-00

Unavailable

31

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

32

NUT

30X-14358-00-00

Unavailable
