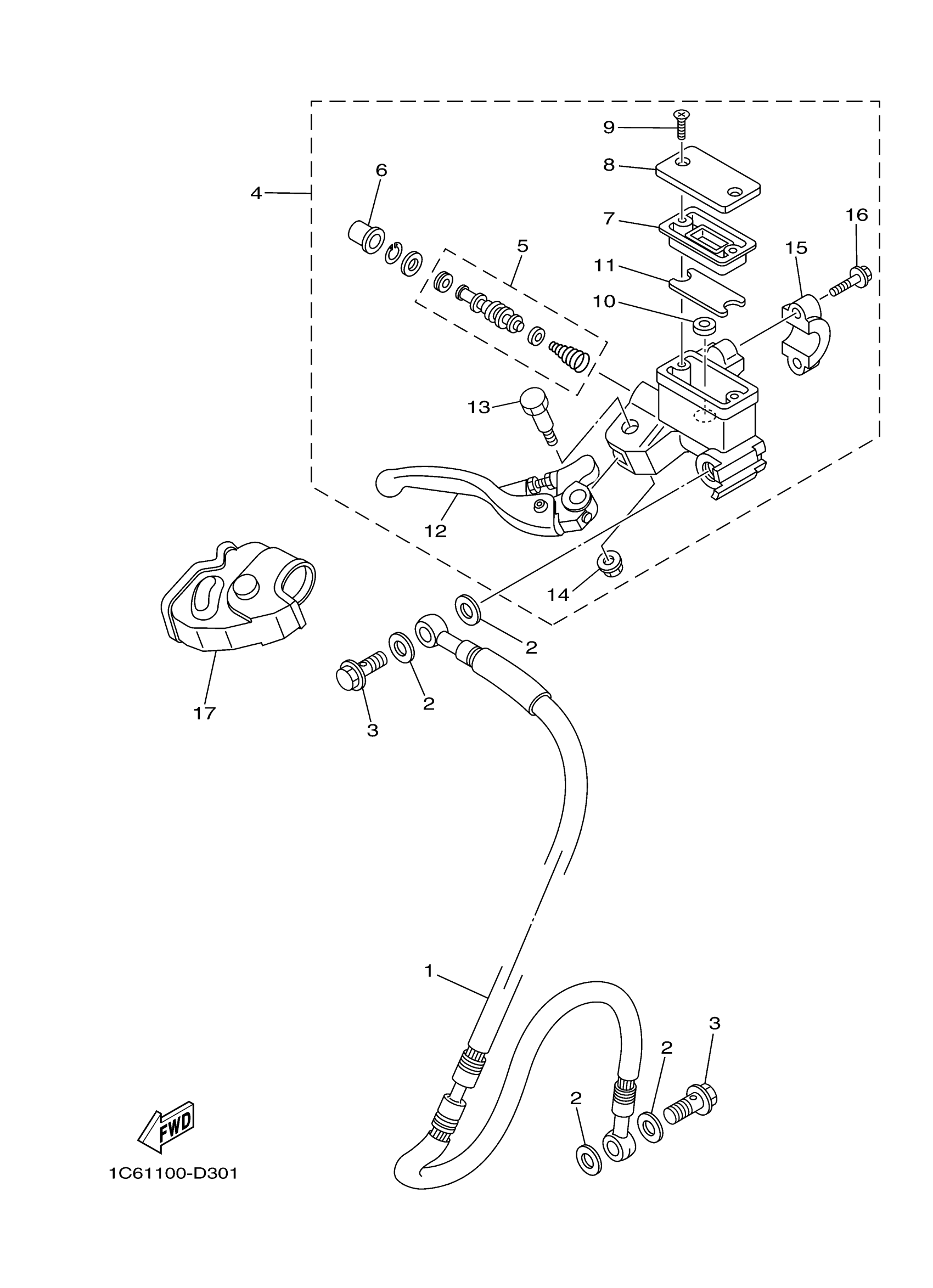

Yamaha TTR230V (TT-R230) 1C65 2006 FRONT MASTER CYLINDER Diagram

HOSE, BRAKE 1

1C6-25872-00-00

$243.99

WASHER, PLATE(481)

90201-10118-00

Unavailable

BOLT, UNION

90401-10172-00

$5.60

MASTER CYLINDER ASSY

1C6-F583T-00-00

$310.99

CYLINDER KIT, MASTER

5NY-W0041-01-00

$55.99

BOOT, MASTER CYLINDER

5NY-25868-00-00

$8.99

DIAPHRAGM, RESERVOIR

5XE-25854-00-00

$15.49

CAP, RESERVOIR

2VN-25852-02-00

$16.49

SCREW, FLAT

98707-04012-00

$2.18

SEPARATOR ASSY

5CG-25715-00-00

$13.49

FLOAT, RESERVOIR

5XE-25853-00-00

$7.99

LEVER 2

1C6-H3922-00-00

$168.99

BOLT (4L0)

90109-06577-00

$5.60

NUT, FLANGE(4MV)

95707-06500-00

$1.23

BRACKET, MASTER CYLINDER

5HH-F5867-00-00

$5.99

. BOLT, FLANGE

5HH-F6332-00-00

Unavailable

COVER, HANDLE LEVER 1

5NY-26372-00-00

Unavailable
