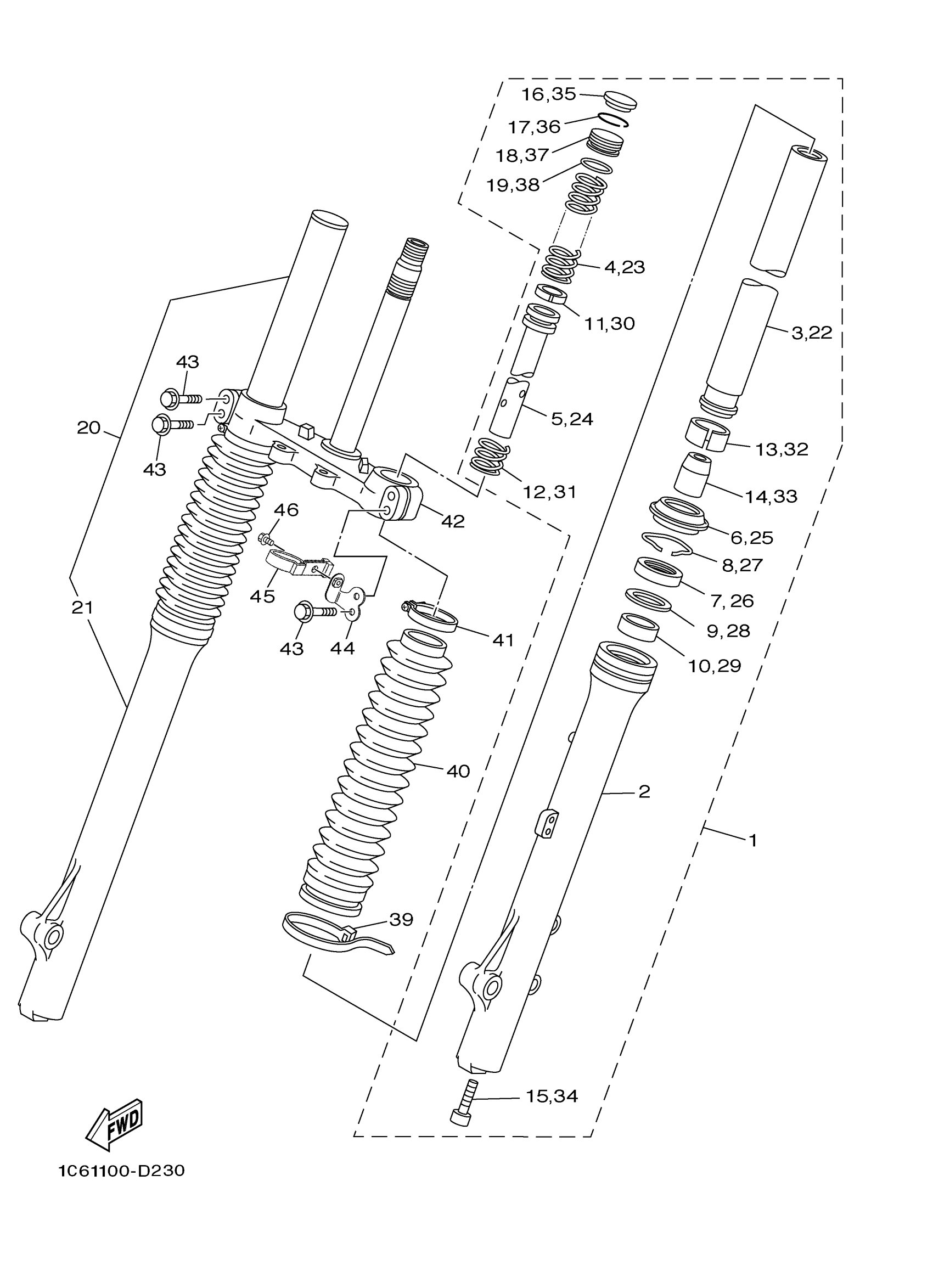

Yamaha TTR230V (TT-R230) 1C65 2006 FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY. (L)

1C6-F3102-02-00

$401.99

2

TUBE, OUTER (LEFT)

1C6-F3126-00-00

$144.99

3

INNER TUBE COMP.1

1C6-F3110-00-00

Unavailable

4

SPRING

1C6-F3351-00-00

$70.99

5

PISTON, FRONT FORK

1C6-F3171-00-00

Unavailable

6

SEAL, DUST

1KH-23144-00-00

$30.99

7

OIL SEAL

1KH-23145-00-00

$28.99

8

CLIP, OIL SEAL

34X-23156-00-00

$8.99

9

O-RING

1KH-23147-00-00

$25.99

10

METAL, SLIDE 1

34X-23125-00-00

Unavailable

11

RING, PISTON

34X-23157-00-00

$22.99

12

SPRING, REBOUND

34X-23151-00-00

Unavailable

13

METAL, SLIDE 2

34X-23135-00-00

$22.99

14

SPACER, OIL LOCK

4AN-F3166-00-00

$10.49

15

BOLT

3M7-23181-00-00

$8.99

16

CAP, FRONT FORK

35E-23168-00-00

Unavailable

17

CIRCLIP

35E-23183-00-00

Unavailable

18

BOLT, CAP

35E-23111-00-00

Unavailable

19

O-RING

58W-F3114-00-00

Unavailable

20

DAMPER ASSY. (R)

1C6-F3103-02-00

Unavailable

21

TUBE, OUTER (RIGHT)

1C6-F3136-00-00

Unavailable

22

INNER TUBE COMP.1

1C6-F3110-00-00

Unavailable

23

SPRING

1C6-F3351-00-00

$70.99

24

PISTON, FRONT FORK

1C6-F3171-00-00

Unavailable

25

SEAL, DUST

1KH-23144-00-00

$30.99

26

OIL SEAL

1KH-23145-00-00

$28.99

27

CLIP, OIL SEAL

34X-23156-00-00

$8.99

28

O-RING

1KH-23147-00-00

$25.99

29

METAL, SLIDE 1

34X-23125-00-00

Unavailable

30

RING, PISTON

34X-23157-00-00

$22.99

31

SPRING, REBOUND

34X-23151-00-00

Unavailable

32

METAL, SLIDE 2

34X-23135-00-00

$22.99

33

SPACER, OIL LOCK

4AN-F3166-00-00

$10.49

34

BOLT

3M7-23181-00-00

$8.99

35

CAP, FRONT FORK

35E-23168-00-00

Unavailable

36

CIRCLIP

35E-23183-00-00

Unavailable

37

BOLT, CAP

35E-23111-00-00

Unavailable

38

O-RING

58W-F3114-00-00

Unavailable

39

BAND

4AN-F3192-10-00

Unavailable

40

BOOT

1C6-23191-02-00

Unavailable

41

BAND

4AN-F3192-00-00

Unavailable

42

UNDER BRACKET COMP.

1C6-F3340-00-00

Unavailable

43

BOLT, FLANGE

95817-08035-00

Unavailable

44

GUIDE, CABLE

1C6-F331E-00-00

Unavailable

45

GUIDE, CABLE

1C6-F3389-00-00

Unavailable

46

BOLT, WASHER BASED(58X)

90105-05361-00

Unavailable
