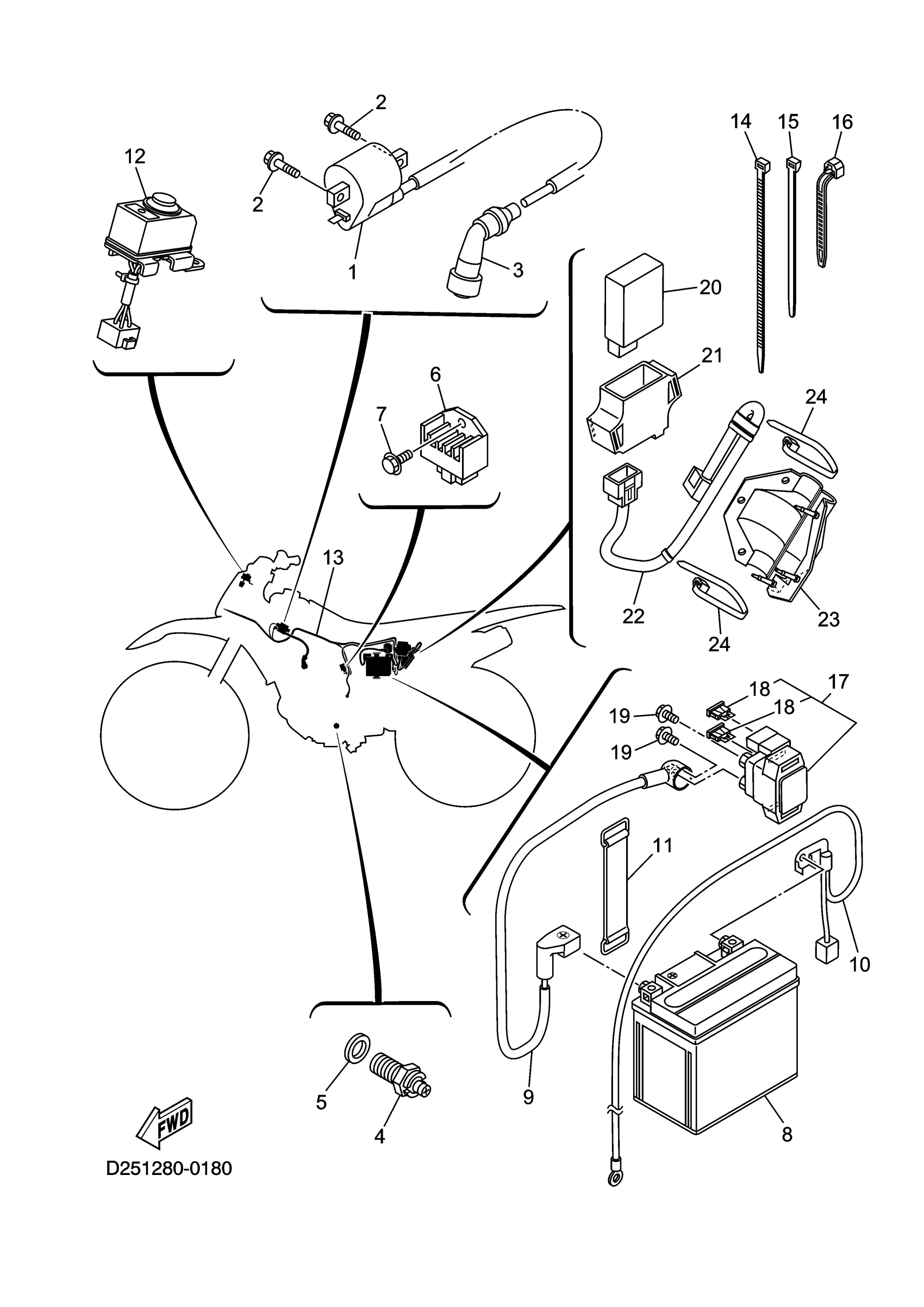

Yamaha TTR230T1C (TTR230 CAL) D258 2026 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3NS-H2310-14-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

PLUG CAP ASSY

3NS-82370-00-00

$37.99

4

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

$200.99

7

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

8

YTX5LBS YUASA BATTERY - SA

YTX-5LBS0-00-00

Unavailable

9

WIRE, PLUS LEAD

1C6-H2115-00-00

$23.99

10

WIRE, MINUS LEAD

1C6-H2116-00-00

$15.99

11

BAND, BATTERY

1C6-H2131-00-00

$9.49

12

MAIN SWITCH ASSY

1C6-82510-01-00

Unavailable

13

WIRE HARNESS ASSY

1C6-H2590-00-00

$155.99

14

CLAMP

90464-70800-00

$0.80

15

BAND

1UA-82591-00-00

$4.78

16

CLAMP

90464-13077-00

Unavailable

17

STARTER RELAY ASSY (RC19-028)

5HH-81940-02-00

Unavailable

18

FUSE (10A)

42X-82151-00-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

20

C.D.I. UNIT ASSY

D25-H5540-01-00

Unavailable

21

BAND

D25-85546-00-00

Unavailable

22

WIRE, SUB LEAD

D25-H2509-00-00

Unavailable

23

COVER

2CC-H252U-00-00

Unavailable

24

CLAMP(4FM)

90464-15195-00

Unavailable
