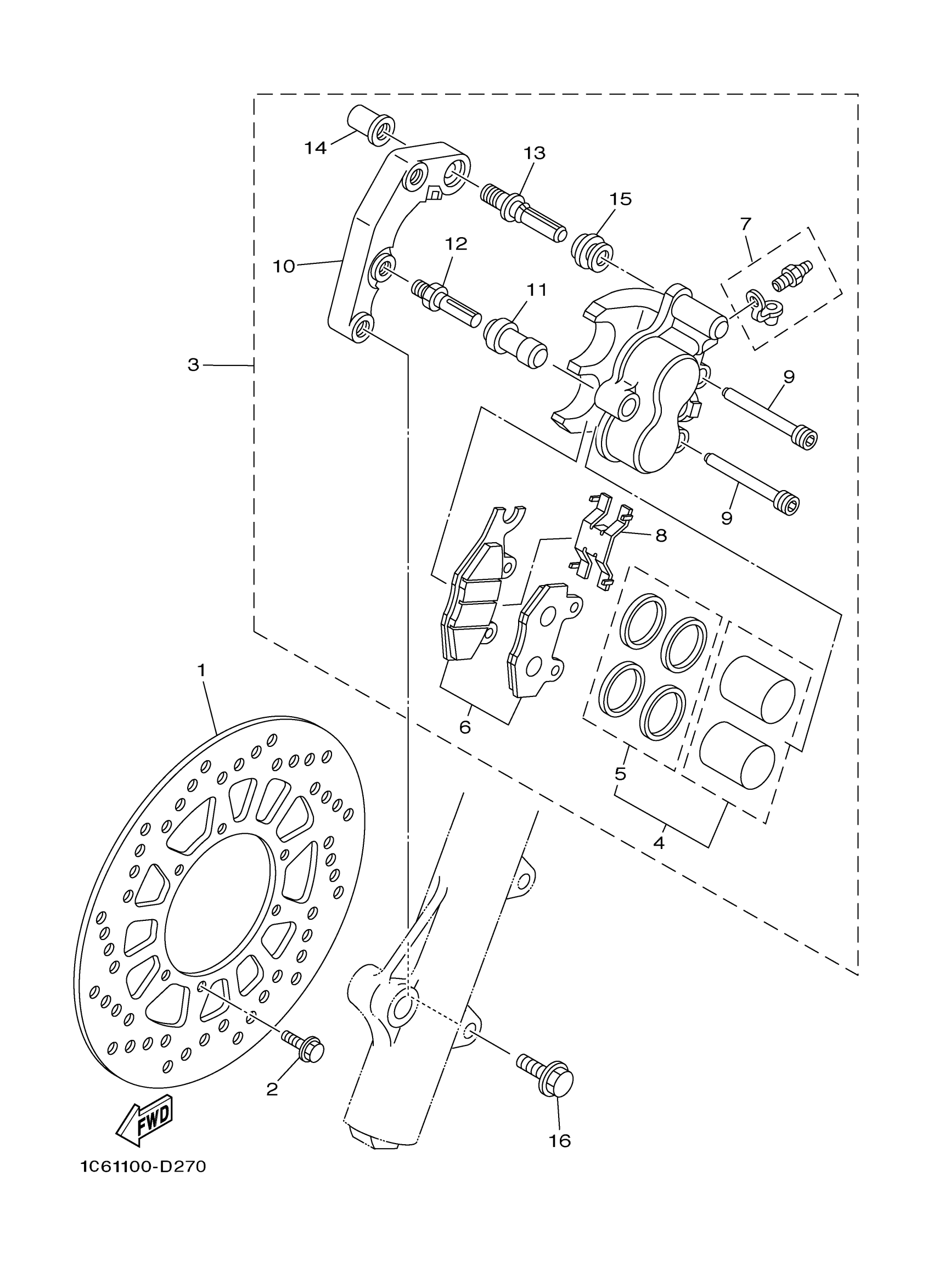

Yamaha TTR230SC (TTR230 CA) D252 2025 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$92.99

2

BOLT, FLANGE

90105-06109-00

$9.49

3

CALIPER ASSY (LEFT

5RM-F580T-10-00

Unavailable

4

PISTON ASSY, CALIP

5RM-F5802-00-00

$46.99

5

CALIPER SEAL KIT

5RM-F5803-00-00

$11.99

6

BRAKE PAD KIT

5RM-F5805-20-00

$88.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

. SPRING, PAD

5HH-F5934-00-00

Unavailable

9

. PIN, PAD

5HH-F5924-00-00

Unavailable

10

. BRACKET, SUPPORT

5RM-F5921-00-00

Unavailable

11

CAP, CALIPER

5HH-F5937-00-00

$4.20

12

BOLT

5HH-F5926-51-00

Unavailable

13

. PIN

5HH-F536G-00-00

Unavailable

14

NUT

5HH-F5961-00-00

Unavailable

15

BOOT, CALIPER

5HH-F5917-00-00

$3.23

16

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
