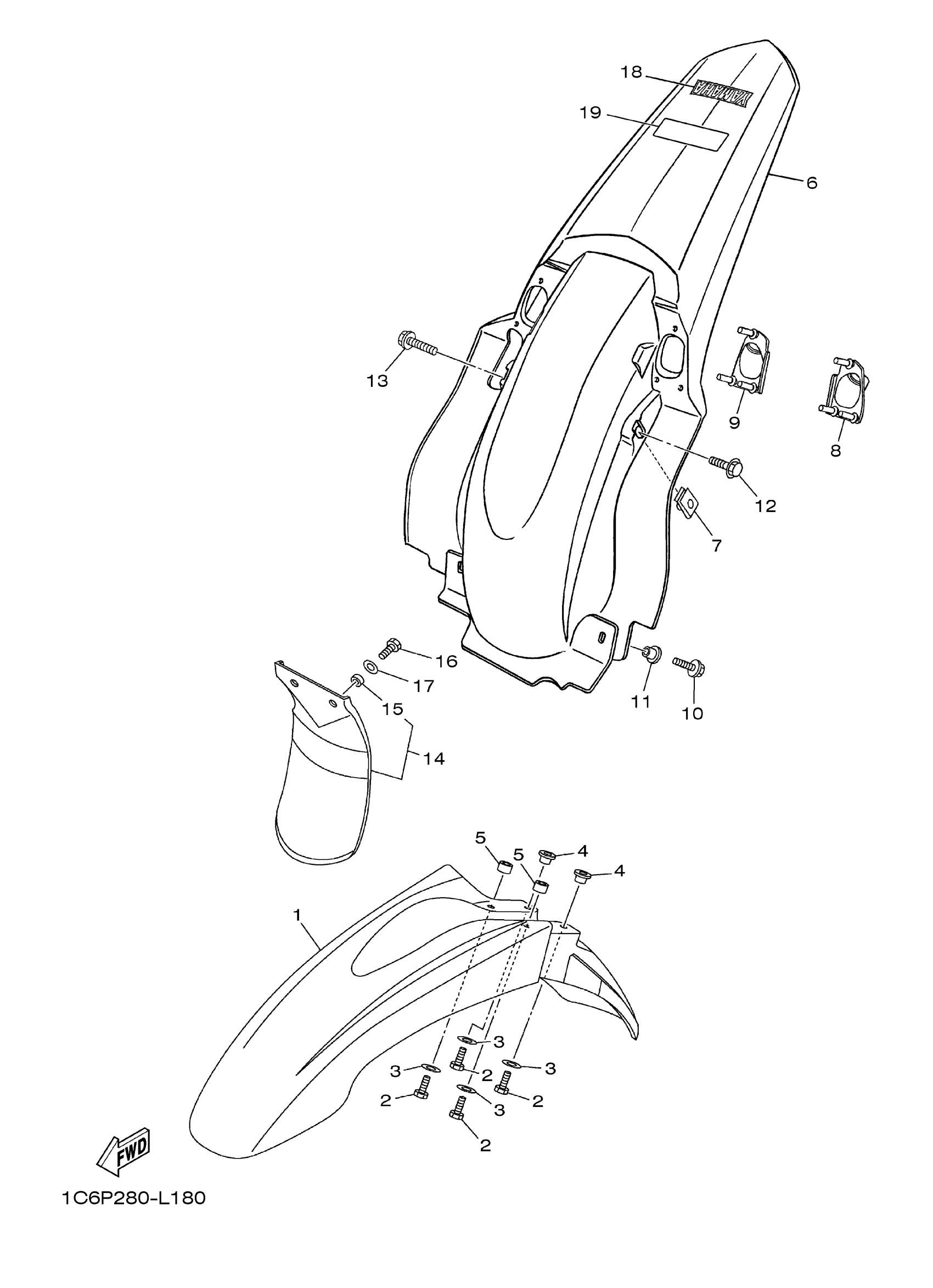

Yamaha TTR230SC (TTR230 CA) D252 2025 FENDER Diagram

#

Description
Price

1

FRONT, FENDER DPBSE

5RM-F1511-00-00

$75.57

2

BOLT, HEXAGON

97017-06020-00

$2.37

3

WASHER, PLATE

90201-06020-00

$5.86

4

COLLAR(3FC)

90387-061V4-00

$6.18

5

COLLAR 8121444900

90387-06023-00

$7.15

6

FENDER, REAR

1C6-F1611-00-00

$54.08

7

NUT

1C6-F1635-00-00

$5.67

8

COVER, REAR FENDER 1

1C6-F163A-00-00

$4.15

9

COVER, REAR FENDER 2

1C6-F163E-00-00

$2.98

10

BOLT, FLANGE

95817-06012-00

$1.40

11

COLLAR (8G8)

90387-06681-00

$6.17

12

BOLT, FLANGE

95817-06012-00

$1.40

13

BOLT, FLANGE

95817-06030-00

$3.65

14

GUARD, FLAP

5RM-F1642-00-00

$27.36

15

COLLAR(3HN)

90387-060T4-00

$8.18

16

BOLT, HEXAGON

97017-06016-00

Unavailable

17

WASHER, PLATE

90201-06020-00

$5.86

18

EMBLEM, YAMAHA

B68-F153E-00-00

Unavailable

19

LABEL, CAUTION

3PT-2118K-A2-00

Unavailable
