Description

Price

1

COVER, SIDE 1

1C6-F1711-10-00

$21.99

2

DAMPER, LOCATING 1

1C6-F1778-00-00

$1.07

3

BOLT, HEXA W/W

90119-06018-00

$8.49

4

BOLT, WITH WASHER

90119-08238-00

$4.29

5

SIDE COVER ASSY 2

1C6-F1720-10-00

$33.99

6

DAMPER

1C6-F1747-01-00

Unavailable

7

INSULATOR, SIDE COVER 2

1C6-F174T-00-00

$14.49

8

SEAL 3

1C6-F173M-00-00

$5.60

9

SEAL 4

1C6-F173N-00-00

$5.60

10

DAMPER, LOCATING 1

1C6-F1778-00-00

$1.07

11

BOLT, HEXA W/W

90119-06018-00

$8.49

12

BOLT, WITH WASHER

90119-08238-00

$4.29

13

BOX, BATTERY

1C6-F177G-00-00

$12.49

14

DAMPER

1C6-F1746-00-00

$2.17

15

DAMPER

1C6-F1747-01-00

Unavailable

16

DAMPER

1C6-F174X-00-00

Unavailable

17

DAMPER

1C6-F174X-01-00

Unavailable

18

COLLAR (8G8)

90387-06681-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

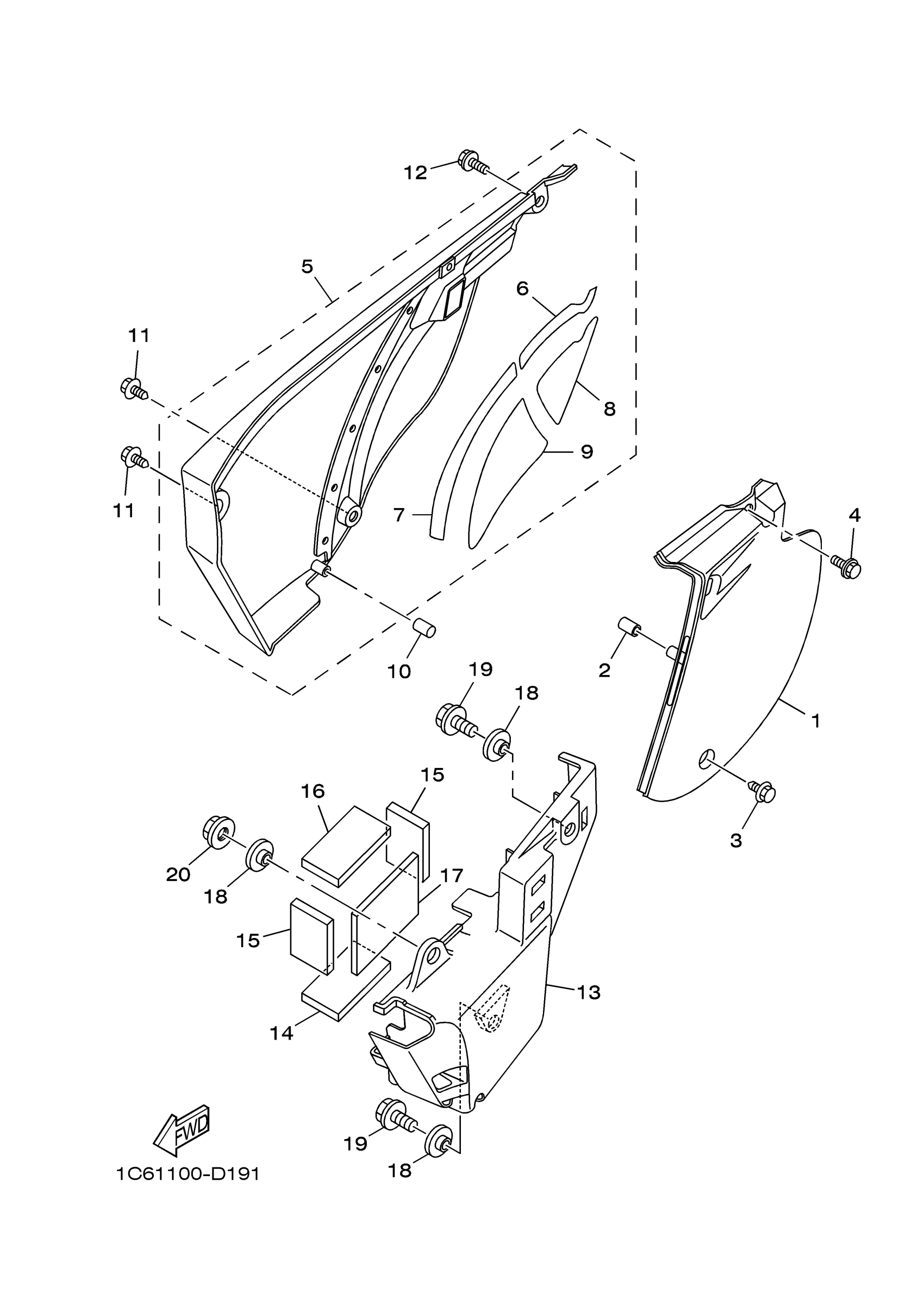

Yamaha TTR230S (TTR230) D251 2025 SIDE COVER Diagram

COVER, SIDE 1

DAMPER, LOCATING 1

BOLT, HEXA W/W

BOLT, WITH WASHER

SIDE COVER ASSY 2

DAMPER

INSULATOR, SIDE COVER 2

SEAL 3

SEAL 4

DAMPER, LOCATING 1

BOLT, HEXA W/W

BOLT, WITH WASHER

BOX, BATTERY

DAMPER

DAMPER

DAMPER

DAMPER

COLLAR (8G8)

BOLT, FLANGE

NUT, FLANGE(4MV)
