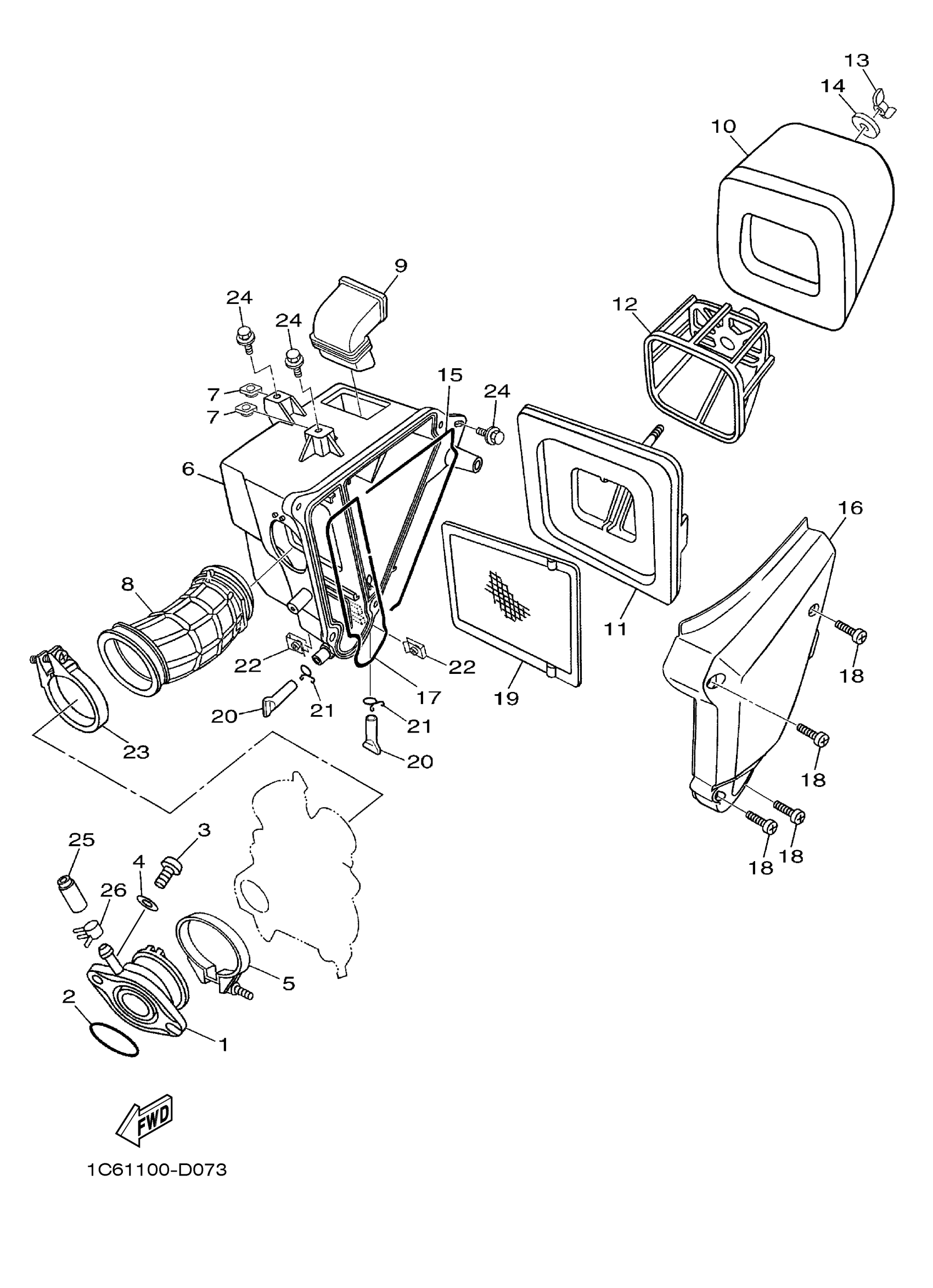

Yamaha TTR230S (TTR230) D251 2025 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

1C6-E3586-00-00

$38.99

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

WASHER,PLAIN

9290M-06600-00

Unavailable

5

HOSE CLAMP ASSY

90450-47002-00

$8.49

6

CASE, AIR CLEANER 1

1C6-E4411-00-00

$58.99

7

. PLATE

1B2-E4477-00-00

Unavailable

8

JOINT, AIR CLEANER 1

1C6-E4453-00-00

$21.99

9

DUCT

1C6-E4437-00-00

$13.49

10

ELEMENT, AIR CLEANER

1C6-14451-01-00

$22.99

11

HOLDER, GUIDE

1C6-E4459-00-00

$38.99

12

GUIDE

1C6-E4458-00-00

$1.91

13

NUT, WING (646)

90175-06008-00

$2.17

14

WASHER, PLATE

90201-06086-00

$7.49

15

SEAL

1C6-E4462-00-00

$30.99

16

CAP, CLEANER CASE 1

1C6-E4412-00-00

Unavailable

17

SEAL

1C6-E4452-00-00

Unavailable

18

SCREW, BINDING

98907-06020-00

Unavailable

19

PLATE, ELEMENT

1C6-E4472-00-00

Unavailable

20

PIPE, DRAIN

5HH-E443E-01-00

Unavailable

21

CLIP (806-24358-00)

90467-15012-00

Unavailable

22

NUT, SPRING (26H)

90183-06023-00

Unavailable

23

HOSE CLAMP ASSY

90450-49001-00

Unavailable

24

BOLT, WITH WASHER

90119-06242-00

Unavailable

25

PLUG, BLIND

16G-13569-00-00

Unavailable

26

CLIP (3G0)

90467-10039-00

Unavailable
