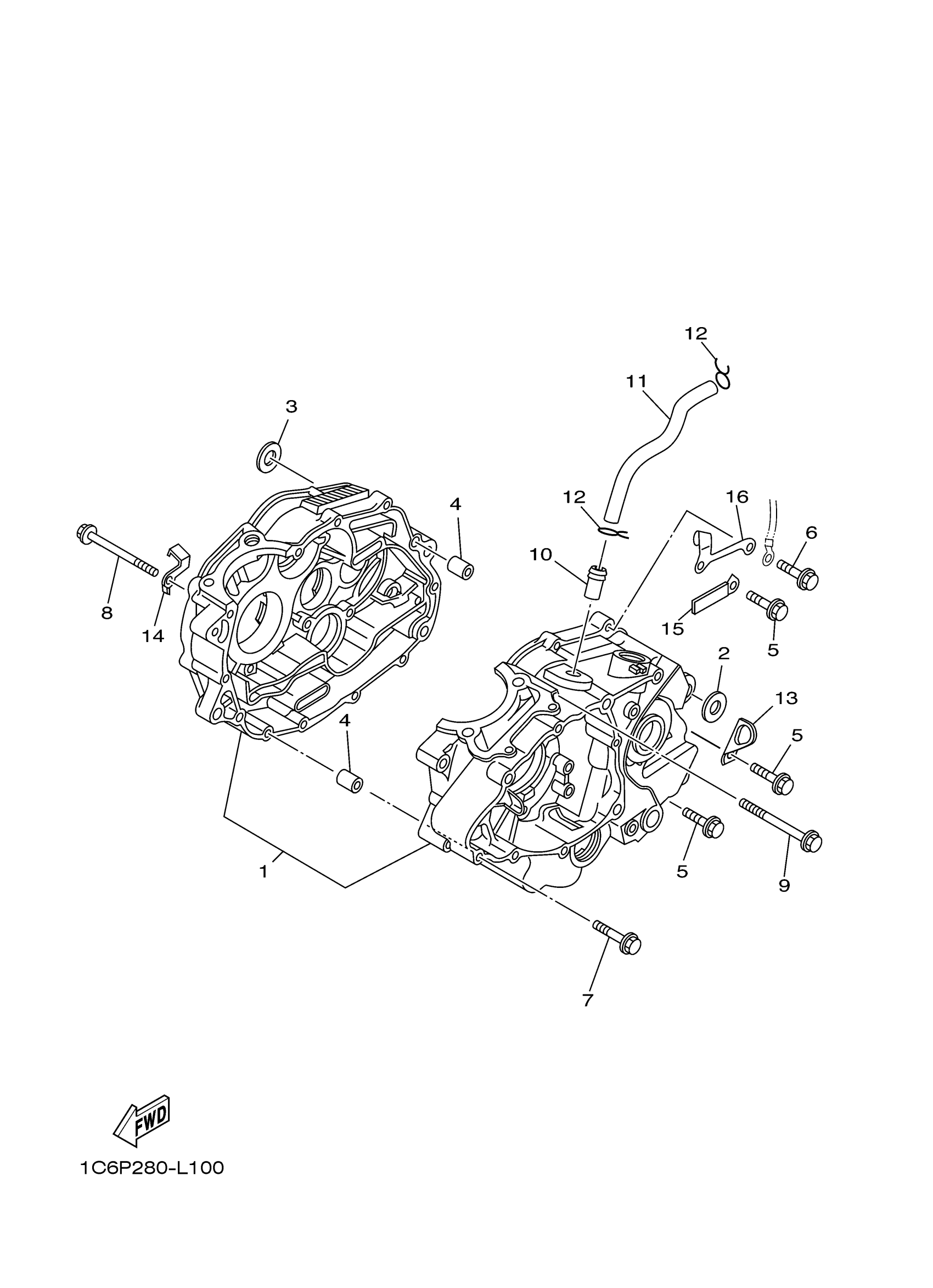

Yamaha TTR230RC (TTR230 CA) D212 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET UNIFICATE

4VW-WE515-00-00

Unavailable

2

COLLAR (15A)

90387-125F1-00

$3.02

3

COLLAR (15A)

90387-125F1-00

$3.02

4

PIN, DOWEL

99530-12016-00

$4.89

5

BOLT, SMALL FLANGE

95027-06030-00

$3.98

6

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

7

BOLT, SMALL FLANGE

95027-06040-00

$3.28

8

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

9

BOLT, FLANGE(4NM)

95027-06085-00

$9.49

10

PIPE, BREATHER 2

371-11167-01-00

$13.49

11

HOSE, BREATHER 1

1C6-E531A-00-00

$26.99

12

CLIP (371)

90467-14015-00

$8.49

13

CLAMP (15A)

90465-08200-00

$9.49

14

CLAMP(3RW)

90462-08224-00

Unavailable

15

CLAMP(4MX)

90465-06376-00

$9.49

16

HOLDER, CLUTCH CABLE

4JG-15441-02-00

Unavailable
