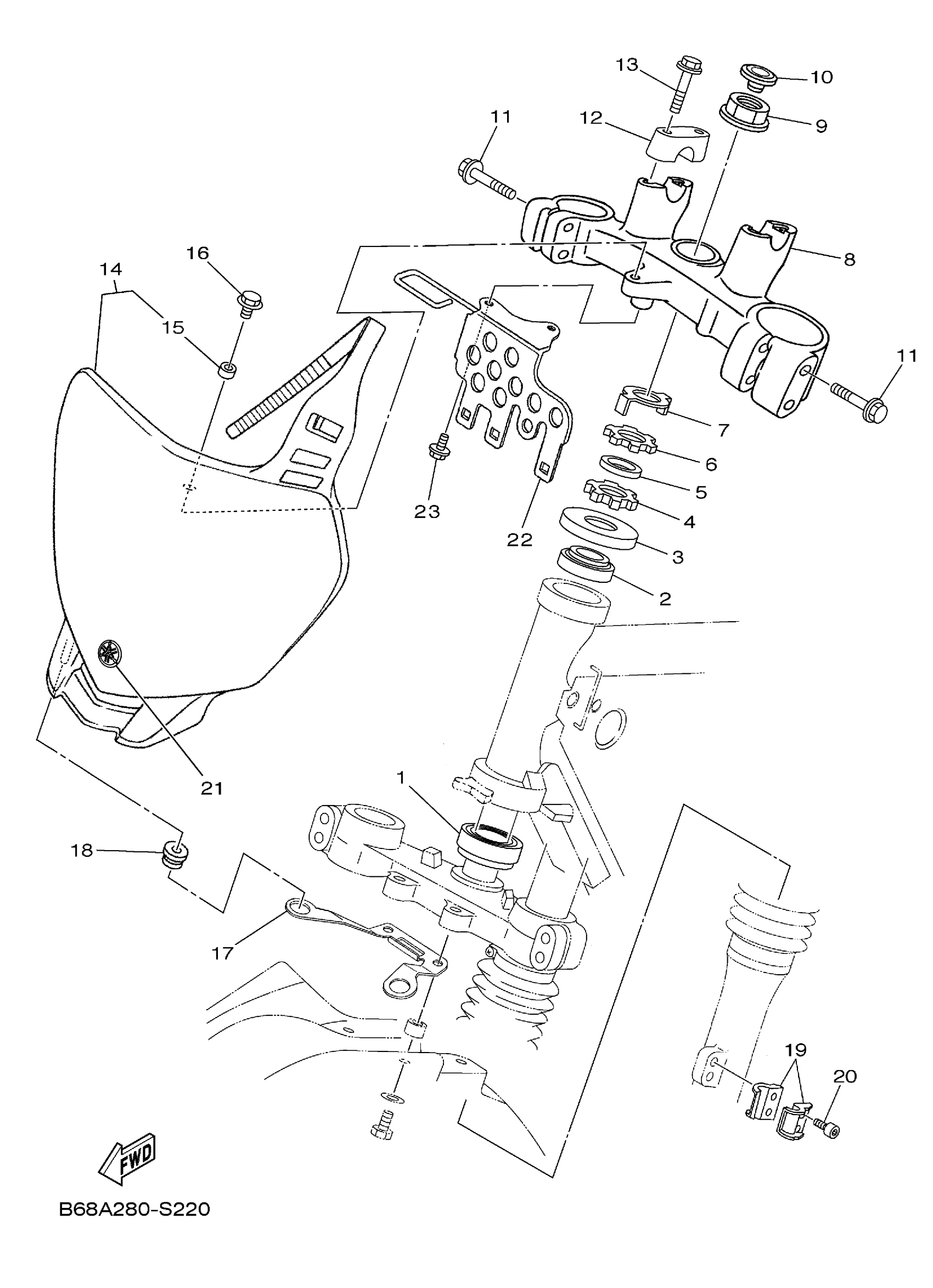

Yamaha TTR230R (TTR230) D211 2024 STEERING Diagram

#

Description
Price

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$56.93

2

BEARING

93332-000Y6-00

$68.35

3

COVER, BALL RACE 2

4JG-23416-00-00

Unavailable

4

NUT

90179-25004-00

$19.41

5

WASHER, PLATE (26H)

90202-26142-00

$7.52

6

NUT

90179-25806-00

$5.92

7

WASHER, SPECIAL

1SK-F3418-00-00

$1.00

8

CROWN, HANDLE

1C6-F3435-00-00

Unavailable

9

NUT (26H)

90179-22412-00

$17.61

10

CAP

1C6-F319U-00-00

$0.64

11

BOLT, FLANGE(4MY)

95027-08040-00

$5.75

12

HOLDER, HANDLE UPPER

3V9-F3441-10-35

$11.47

13

BOLT, FLANGE(4MY)

95027-08035-00

$5.75

14

PLATE, NUMBER

1C6-F3485-10-00

$15.91

15

COLLAR

90387-06W62-00

$1.24

16

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

17

STAY, PLATE

1C6-F3486-00-00

Unavailable

18

GROMMET(80K)

90480-13428-00

Unavailable

19

CLAMP (39E)

90465-14242-00

Unavailable

20

BOLT

9131M-06016-00

$0.55

21

MARK 1

4B4-F4235-20-00

Unavailable

22

BRACKET

1C6-H350E-01-00

Unavailable

23

BOLT, FLANGE

95817-06014-00

Unavailable
