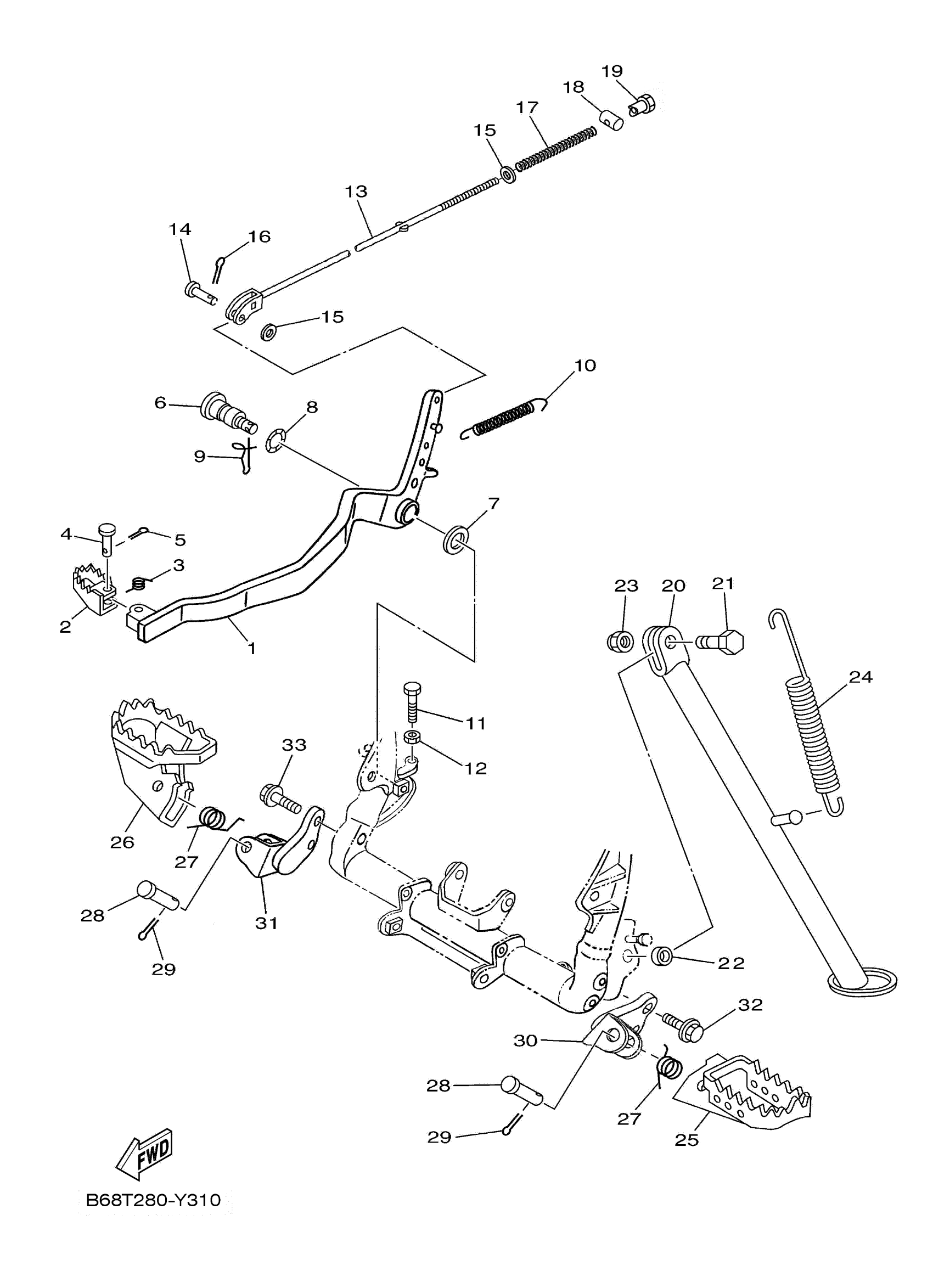

Yamaha TTR230R (TTR230) D211 2024 STAND & FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1C6-F7211-00-00

$73.99

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

SHAFT

2CC-F7261-00-00

$11.99

7

WASHER, PLATE(52H)

90201-105J4-00

$9.49

8

WASHER, WAVE

90206-14001-00

$8.49

9

CLIP

90468-20196-00

Unavailable

10

SPRING, TENSION 1,8 X 12

90506-18804-00

$3.40

11

BOLT, HEXAGON

97017-06016-00

$8.49

12

NUT(JN5)

95317-06700-00

$8.49

13

ROD, BRAKE

1C6-F7231-00-00

$21.99

14

PIN

91701-06020-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PIN, COTTER (648)

91490-20015-00

$2.20

17

SPRING, COMPRESSION

90501-10802-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

NUT

90179-06W21-00

Unavailable

20

STAND, SIDE

1C6-F7311-01-00

Unavailable

21

BOLT, HEXAGON M10

90101-10003-00

Unavailable

22

COLLAR

90387-10003-00

Unavailable

23

NUT, U

90185-10037-00

Unavailable

24

SPRING, TENSION

90506-35805-00

Unavailable

25

FOOTREST 1

1B2-F7411-00-00

Unavailable

26

FOOTREST 2

1C6-F7421-00-00

Unavailable

27

SPRING, TORSION(3JD)

90508-28777-00

Unavailable

28

PIN, CLEVIS(2HJ)

90240-10117-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

BRACKET, FOOTREST 1

1C6-F7412-00-33

Unavailable

31

BRACKET, FOOTREST

1C6-F7422-01-00

Unavailable

32

BOLT, SMALL FLANGE

95027-10025-00

Unavailable

33

BOLT, SMALL FLANGE

95027-10025-00

Unavailable
