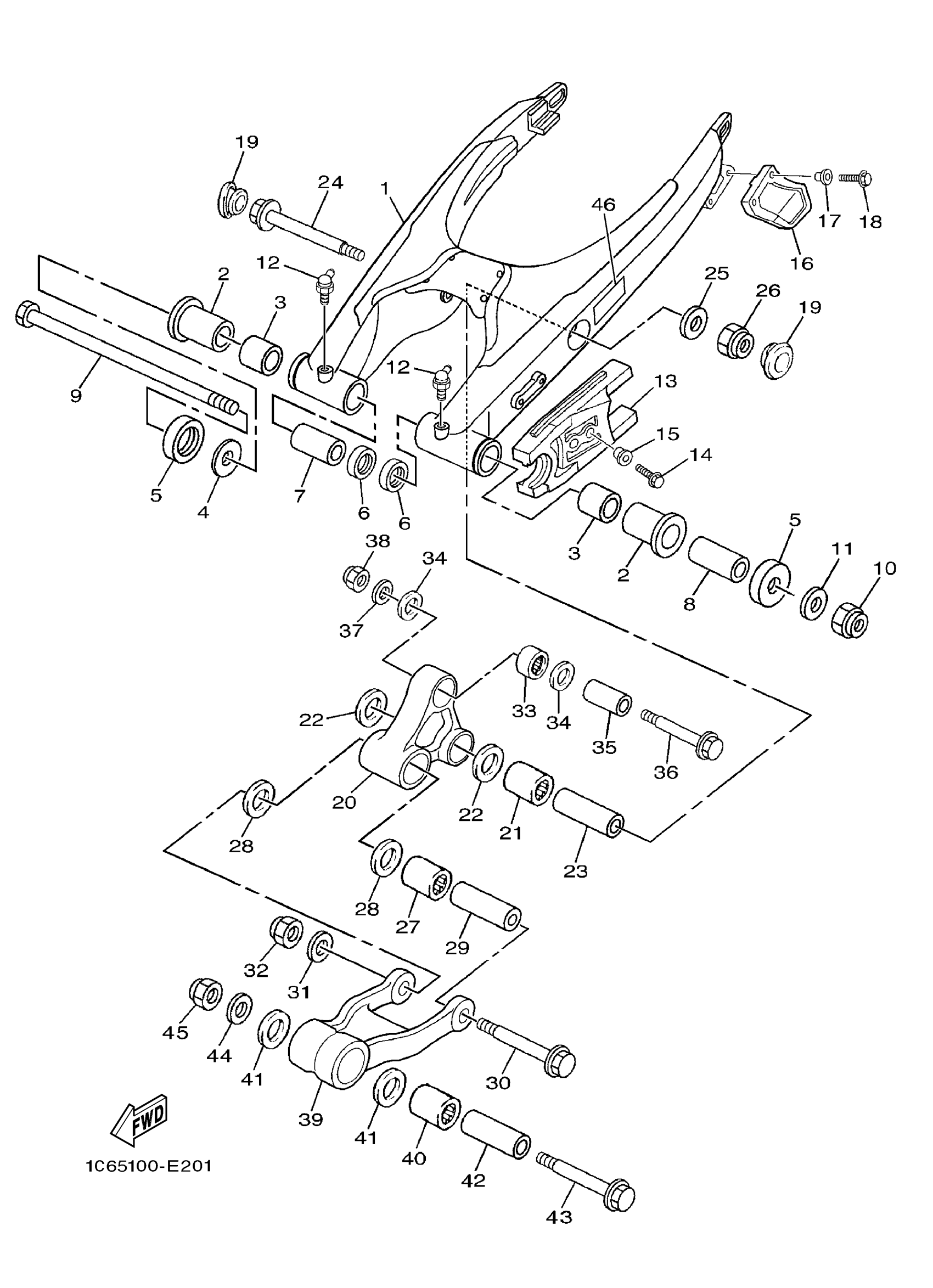

Yamaha TTR230R (TTR230) D211 2024 REAR ARM Diagram

REAR ARM COMP.

1C6-F2110-00-35

$534.99

BUSH(1KH)

90386-18146-00

$16.99

BUSH, SOLID(12T)

90380-18139-00

$17.99

SHIM

401-22127-00-00

$7.99

COVER, THRUST 1

401-22128-01-00

$29.99

OIL SEAL (2J5)

93109-18020-00

$13.49

COLLAR(1KH)

90387-121N2-00

Unavailable

COLLAR (10V)

90387-127F2-00

Unavailable

SHAFT, PIVOT

1C6-F2141-00-00

$32.99

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

NIPPLE, GREASE

93700-06005-00

$12.49

SEAL, GUARD

1B2-F2151-10-00

$39.99

BOLT, HEXAGON

97017-06016-00

$8.49

C0LLAR (3JB1)

90387-062X0-00

$20.99

BRAKET, CHAIN

5RM-F2199-00-00

Unavailable

COLLAR (3L6)

90387-06737-00

Unavailable

BOLT, HEXAGON

97017-06016-00

$8.49

CAP

1C6-F2117-00-00

Unavailable

ARM, RELAY

1C6-2217A-00-00

Unavailable

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

OIL SEAL

93109-20076-00

Unavailable

COLLAR

90387-14007-00

Unavailable

BOLT, FLANGE

90105-12801-00

Unavailable

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

NUT, U (4PM)

95617-12100-00

Unavailable

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

OIL SEAL

93109-20076-00

Unavailable

COLLAR

90387-12024-00

Unavailable

BOLT, FLANGE

90105-12025-00

Unavailable

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

NUT, U (4PM)

95617-12100-00

Unavailable

BEARING

93315-31758-00

Unavailable

OIL SEAL

93109-17071-00

Unavailable

COLLAR

90387-1012A-00

Unavailable

BOLT, FLANGE

90105-10818-00

Unavailable

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

NUT, U

95617-10100-00

Unavailable

ROD, CONNECTING 1

1C6-F217F-01-00

Unavailable

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

OIL SEAL

93109-20076-00

Unavailable

COLLAR

90387-12023-00

Unavailable

BOLT, HEXAGON M12

90101-12804-00

Unavailable

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

NUT, U (4PM)

95617-12100-00

Unavailable

LABEL, TIRE

3RV-21668-A1-00

Unavailable
