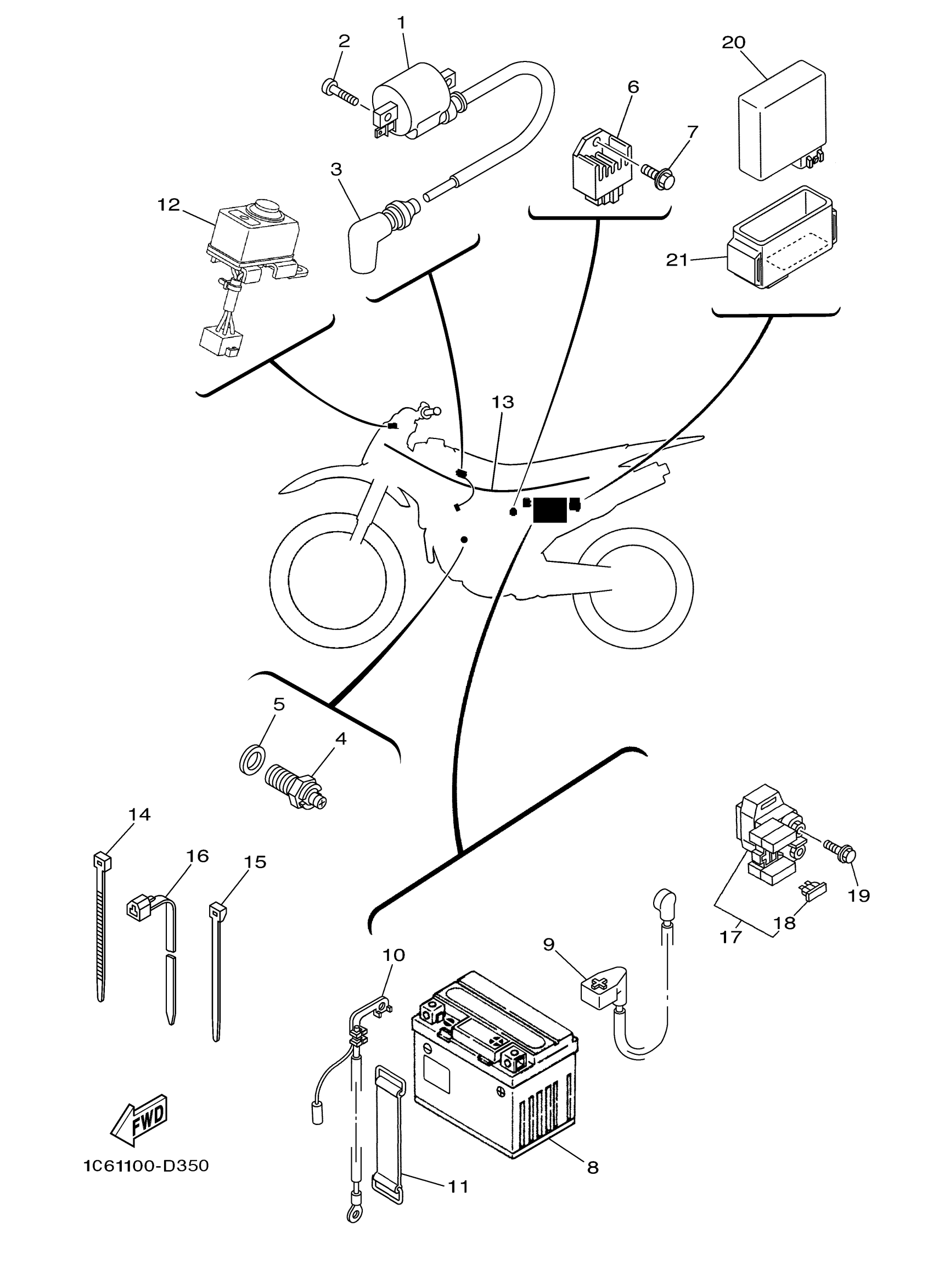

Yamaha TTR230R (TTR230) D211 2024 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

3NS-82310-13-00

Unavailable

BOLT, FLANGE

95817-06016-00

$2.75

PLUG CAP ASSY

3NS-82370-00-00

$37.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

$200.99

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

YTX5LBS YUASA BATTERY - SA

YTX-5LBS0-00-00

Unavailable

WIRE, PLUS LEAD

1C6-H2115-00-00

$23.99

WIRE, MINUS LEAD

1C6-H2116-00-00

$15.99

BAND, BATTERY

1C6-H2131-00-00

$9.49

MAIN SWITCH ASSY

1C6-82510-01-00

Unavailable

WIRE HARNESS ASSY

1C6-H2590-00-00

$155.99

CLAMP

90464-70800-00

$0.80

BAND

1UA-82591-00-00

$4.78

CLAMP

90464-13077-00

Unavailable

STARTER RELAY ASSY (RC19-028)

5HH-81940-02-00

Unavailable

FUSE (10A)

42X-82151-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

C.D.I. UNIT ASSY

1C6-H5540-00-00

Unavailable

BAND

1C6-H5546-00-00

Unavailable
