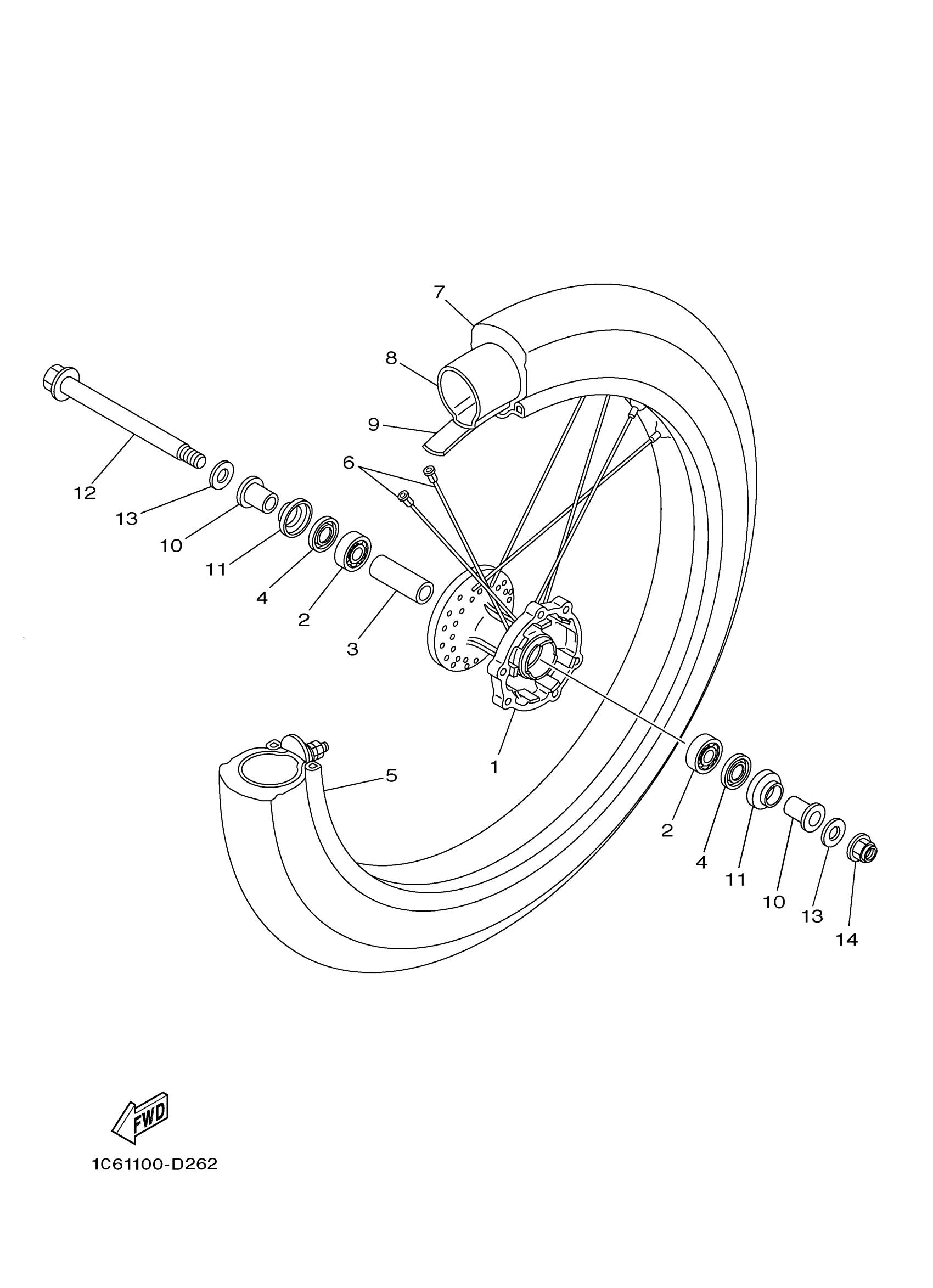

Yamaha TTR230PC (TTR230 CA) B68U 2023 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHELL (0035)

4AN-F5111-10-35

$162.15

2

BEARING

93306-202XY-00

$13.40

3

SPACER(1ET)

90560-15290-00

$17.06

4

OIL SEAL(38V)

93106-20021-00

$10.70

5

RIM (1.60-21)(2YY)

94416-21536-00

$445.67

6

SPOKE SET, FRONT

34X-25104-00-00

$126.91

7

TIRE (80/100-21 MT320H)

94108-21800-00

$72.20

8

TUBE (80/100-21)

94227-21W51-00

Unavailable

9

BAND, RIM (2A6)

94330-21084-00

$12.96

10

COLLAR (1W1)

90387-15600-00

$14.32

11

COVER, HUB DUST

322-25118-00-00

$15.12

12

AXLE, WHEEL

1C6-F5181-00-00

$29.08

13

WASHER, PLATE (3X3)

90201-15797-00

$5.86

14

NUT, U(4JT)

95617-14100-00

Unavailable
