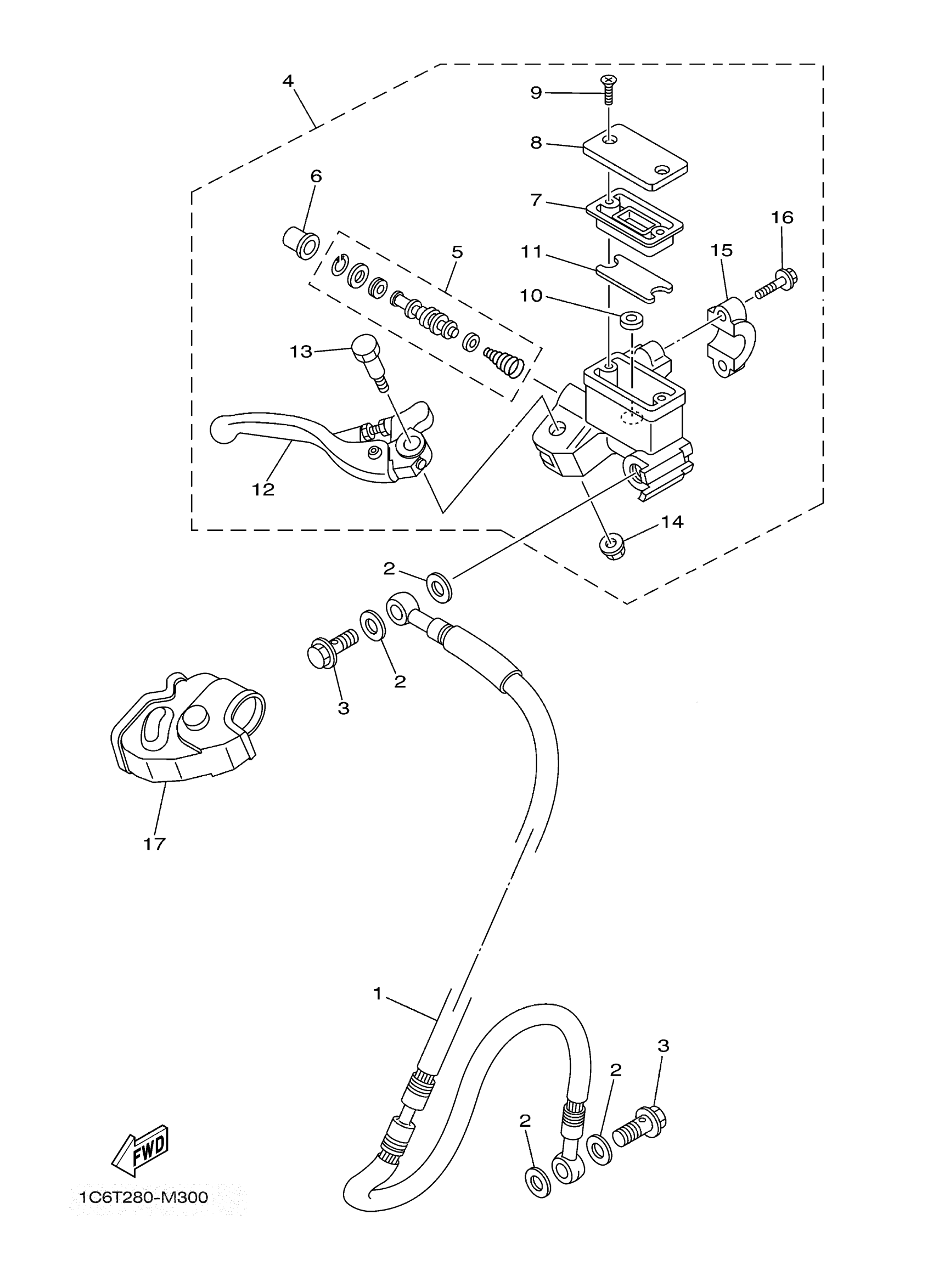

Yamaha TTR230PC (TTR230 CA) B68U 2023 FRONT MASTER CYLINDER Diagram

Description

Price

HOSE, BRAKE 1

1C6-25872-00-00

$195.61

WASHER, PLATE(481)

90201-10118-00

Unavailable

BOLT, UNION

90401-10172-00

$3.46

MASTER CYLINDER ASSY

1C6-F583T-00-00

$306.80

CYLINDER KIT, MASTER

5NY-W0041-01-00

$46.93

BOOT, MASTER CYLINDER

5NY-25868-00-00

$7.08

DIAPHRAGM, RESERVOIR

5XE-25854-00-00

$12.32

CAP, RESERVOIR

2VN-25852-02-00

$13.60

SCREW, FLAT

98707-04012-00

$1.34

COVER 1

5HH-F5715-00-00

$4.35

FLOAT, RESERVOIR

1C6-F5853-00-00

Unavailable

LEVER 2

1C6-H3922-00-00

$15.88

BOLT (4L0)

90109-06577-00

$5.03

NUT, FLANGE(4MV)

95707-06500-00

$0.73

BRACKET, MASTER CYLINDER

5HH-F5867-00-00

$4.68

. BOLT, FLANGE

5HH-F6332-00-00

$1.41

COVER, HANDLE LEVER 1

5NY-26372-00-00

Unavailable
