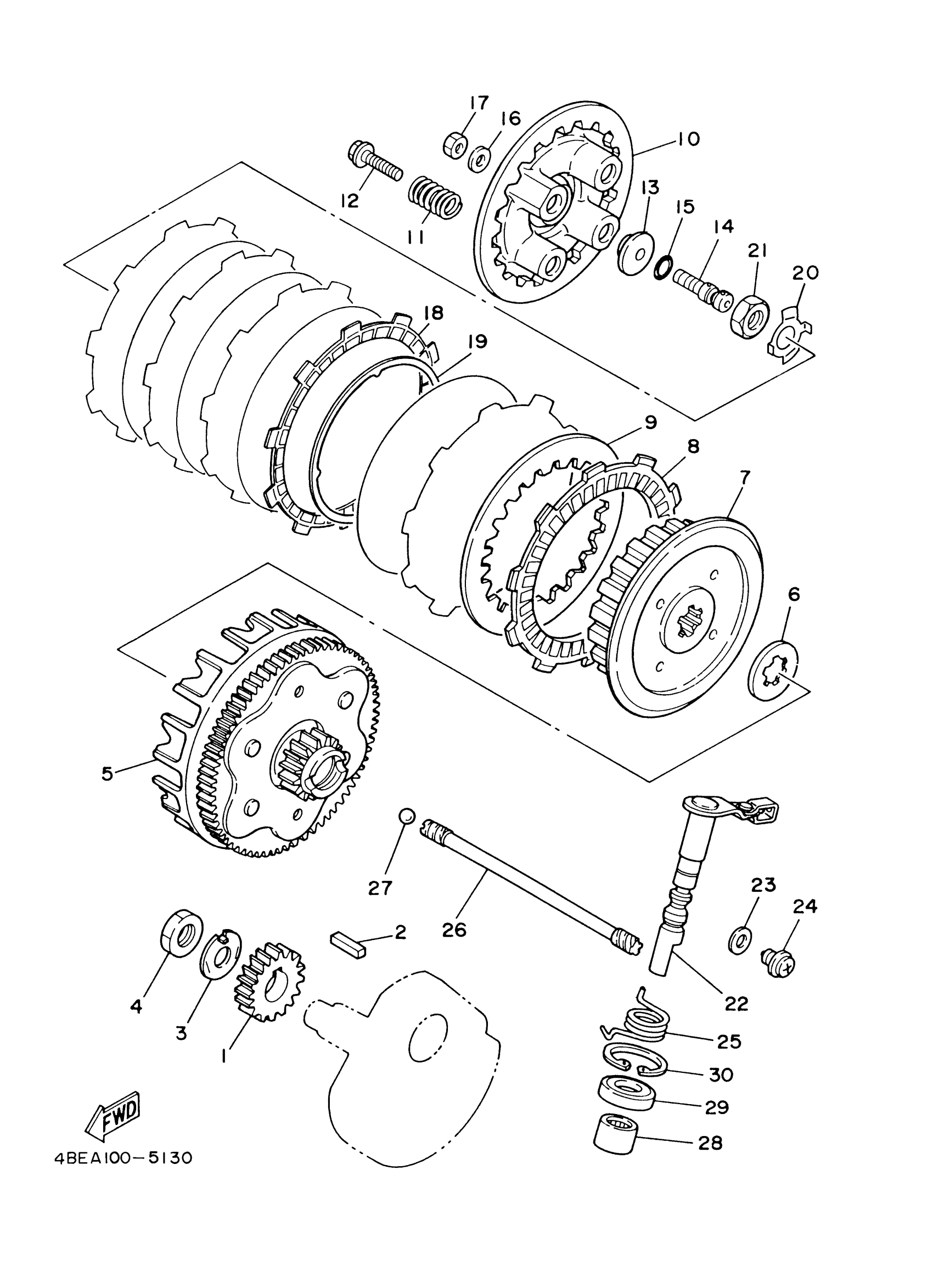

Yamaha TTR230PC (TTR230 CA) B68U 2023 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

Unavailable

2

KEY, STRAIGHT (5H0)

90282-05043-00

$9.49

3

WASHER, LOCK (15Y)

90215-14205-00

$8.49

4

NUT (5H0)

90170-14284-00

$9.49

5

PRIMARY DRIVEN GEAR COMP.

1KH-16150-00-00

$354.99

6

PLATE, THRUST 1

2LN-16154-00-00

$30.99

7

BOSS, CLUTCH

2LN-16371-00-00

$154.99

8

PLATE, FRICTION

537-16321-00-00

$17.49

9

PLATE, CLUTCH 1

336-16324-10-00

$18.49

10

PLATE, PRESSURE 1

5H0-16351-00-00

$41.99

11

SPRING, COMPRESSION

90501-23700-00

$7.49

12

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

13

PLATE, PUSH

1W1-16358-01-00

$23.99

14

ROD, PUSH 1

4JG-16356-00-00

Unavailable

15

O-RING (2H7)

93210-48364-00

$8.49

16

WASHER(6TA)

92907-06200-00

Unavailable

17

NUT(6TA)

95317-06600-00

Unavailable

18

PLATE, FRICTION

36X-16321-00-00

Unavailable

19

SPRING, CLUTCH BOSS

1KH-16383-00-00

Unavailable

20

WASHER, LOCK (25G)

90215-14186-00

Unavailable

21

NUT (5H0)

90170-14284-00

$9.49

22

PUSH LEVER ASSY

4JG-16380-01-00

Unavailable

23

GASKET

90430-08119-00

Unavailable

24

SCREW 425163430000

90149-08067-00

Unavailable

25

SPRING, TORSION

90508-18495-00

Unavailable

26

ROD, PUSH 2

5H0-16357-00-00

Unavailable

27

BALL

93505-16006-00

Unavailable

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

29

OIL SEAL (3Y1)

93102-14209-00

Unavailable

30

CIRCLIP (3Y1)

93420-28055-00

Unavailable
