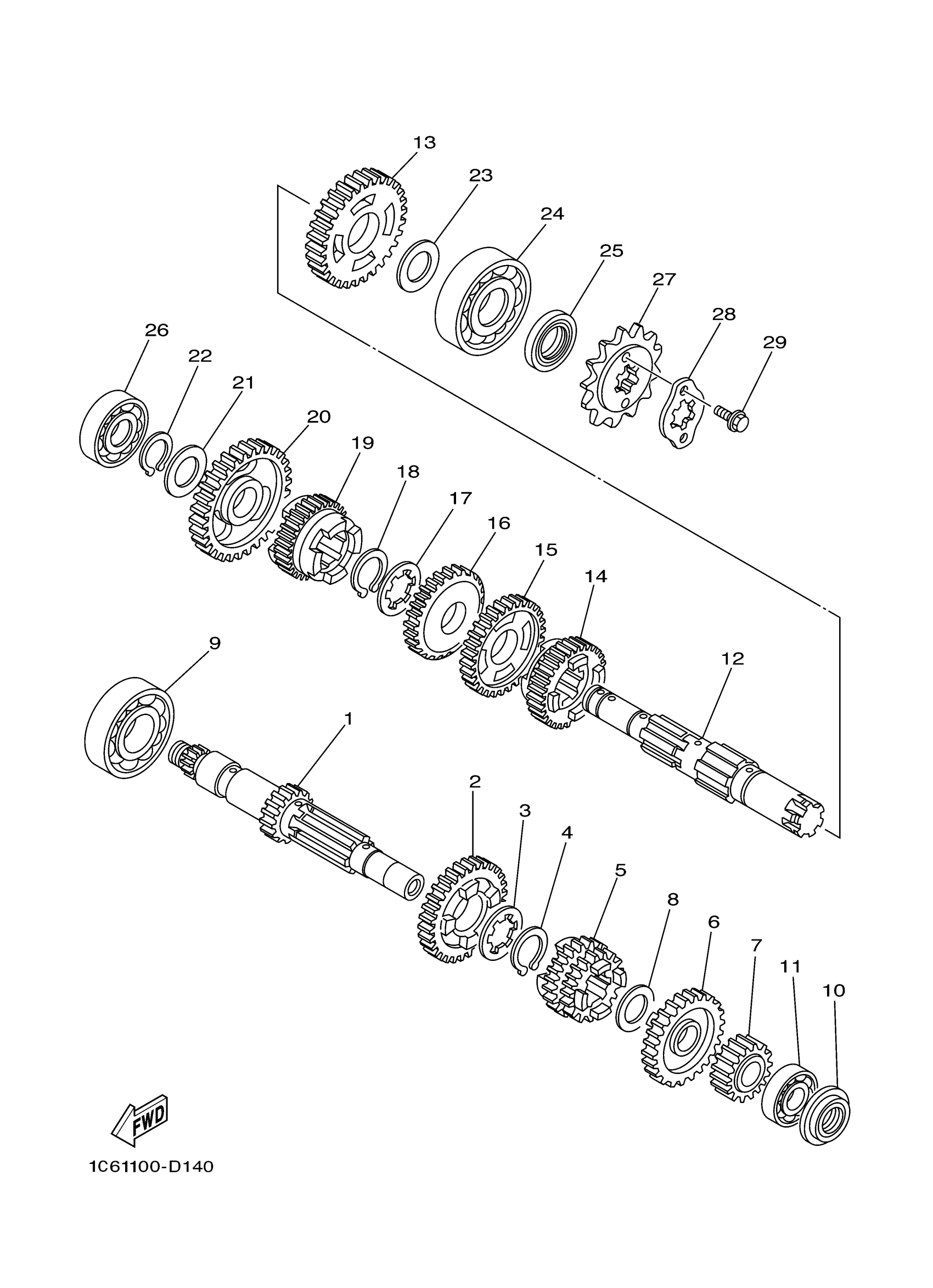

Yamaha TTR230P (TTR230) B68T 2023 TRANSMISSION Diagram

AXLE, MAIN

1C6-E7411-00-00

$138.99

GEAR, 6TH PINION

5MP-17161-00-00

Unavailable

WASHER(59V)

90209-17285-00

$9.49

CIRCLIP (525)

93410-20038-00

$3.76

GEAR, 3RD PINION

1KH-17131-01-00

$129.99

GEAR, 5TH PINION

5MP-17151-00-00

Unavailable

GEAR, 2ND PINION

17T-17121-00-00

Unavailable

WASHER, PLATE(1KH)

90201-164K2-00

$1.75

BEARING(1YW)

93306-20461-00

$39.99

OIL SEAL (5H0)

93101-15101-00

$11.49

BRG, R-B (7H4)

93306-20211-00

$25.99

DRIVE AXLE ASSY

1C6-E7402-00-00

$262.99

GEAR, 2ND WHEEL

17T-17221-01-00

Unavailable

GEAR, 5TH WHEEL

5MP-17251-00-00

Unavailable

GEAR WHEEL

4VW-E7231-01-00

Unavailable

GEAR, 4TH WHEEL

17T-17241-03-00

Unavailable

WASHER (5H0)

90209-18208-00

Unavailable

CIRCLIP (537)

93410-22039-00

Unavailable

GEAR, 6TH WHEEL

5MP-17261-00-00

Unavailable

GEAR, 1ST WHEEL

5BT-17211-00-00

Unavailable

WASHER PLATE 306155610000

90201-17257-00

Unavailable

CIRCLIP(1EY)

99009-17400-00

Unavailable

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

BEARING

93306-304YP-00

Unavailable

OIL SEAL

93102-20004-00

Unavailable

BEARING (30X)

93306-20332-00

Unavailable

SPROCKET, DRIVE (13T)(2XJ)

93832-13164-00

Unavailable

HOLDER, SPROCKET

5H0-17456-00-00

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable
