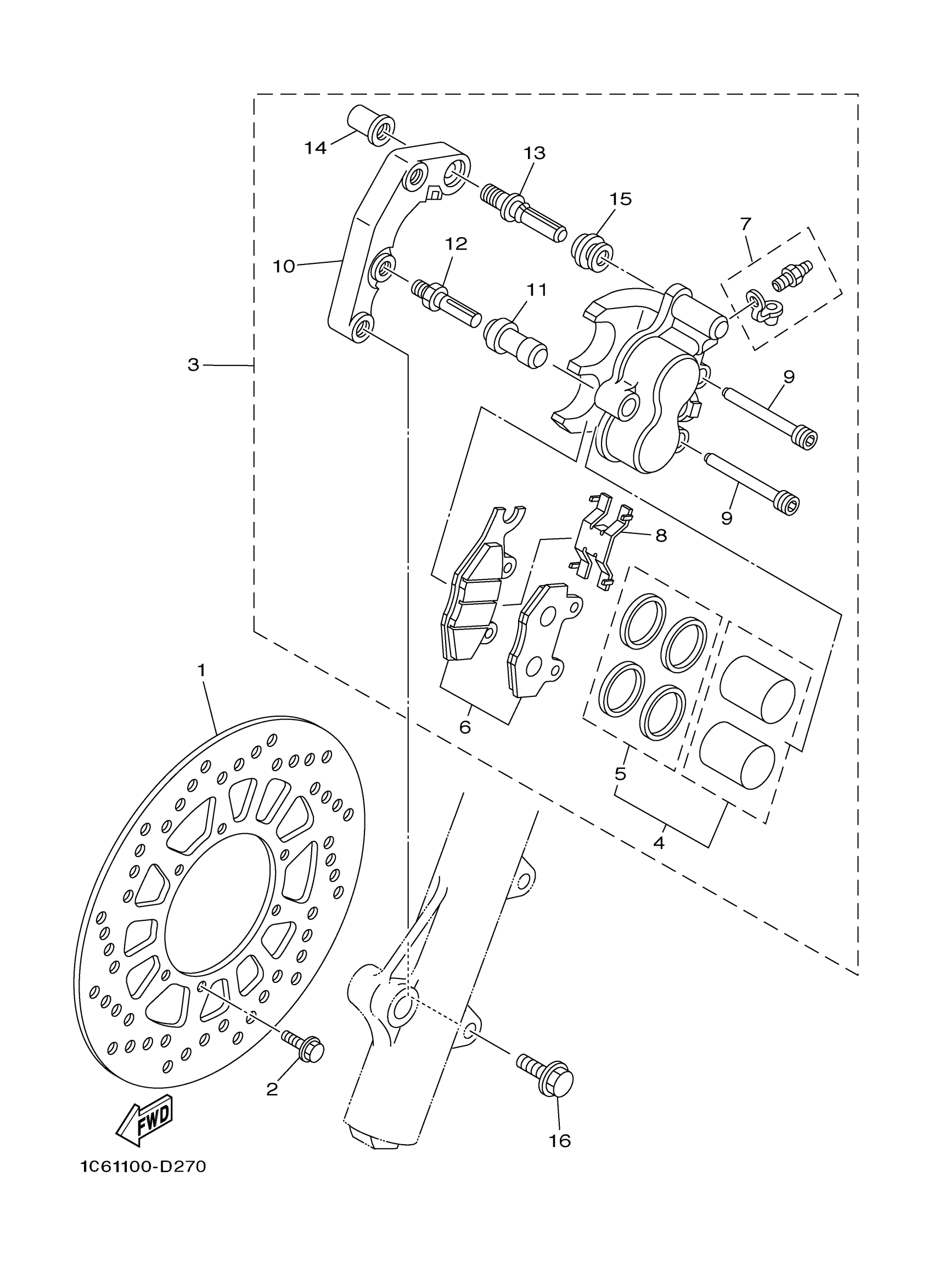

Yamaha TTR230P (TTR230) B68T 2023 FRONT BRAKE CALIPER Diagram

Description

Price

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$76.75

BOLT, FLANGE

90105-06109-00

$5.87

CALIPER ASSY (LEFT

5RM-F580T-10-00

Unavailable

PISTON ASSY, CALIP

5RM-F5802-00-00

$37.64

CALIPER SEAL KIT

5RM-F5803-00-00

$9.00

BRAKE PAD KIT

5RM-F5805-20-00

$38.61

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

. SPRING, PAD

5HH-F5934-00-00

$21.35

. PIN, PAD

5HH-F5924-00-00

$9.17

. BRACKET, SUPPORT

5RM-F5921-00-00

$17.42

CAP, CALIPER

5HH-F5937-00-00

$3.42

BOLT

5HH-F5926-51-00

$2.36

. PIN

5HH-F536G-00-00

$7.26

NUT

5HH-F5961-00-00

Unavailable

BOOT, CALIPER

5HH-F5917-00-00

$2.12

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
