Description

Price

1

OIL PUMP ASSY

5H0-13300-02-00

$165.99

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

$39.99

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

5

SCREW, FLAT

98707-06030-00

$7.99

6

COVER, PUMP GEAR

5H0-13327-00-00

Unavailable

7

STRAINER, OIL

51Y-13411-00-00

$37.99

8

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

9

PLUG, DRAIN

5H0-15351-00-00

$31.99

10

O-RING

93210-347A1-00

$7.49

11

OIL CLEANER ASSY

5H0-13440-09-00

$10.99

12

COVER, OIL ELEMENT

3AW-13447-01-00

Unavailable

13

O-RING (341)

93210-54175-00

$13.49

14

BOLT

90109-065G0-00

$8.49

15

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

17

BOLT, WASHER BASED

90105-064A6-00

Unavailable

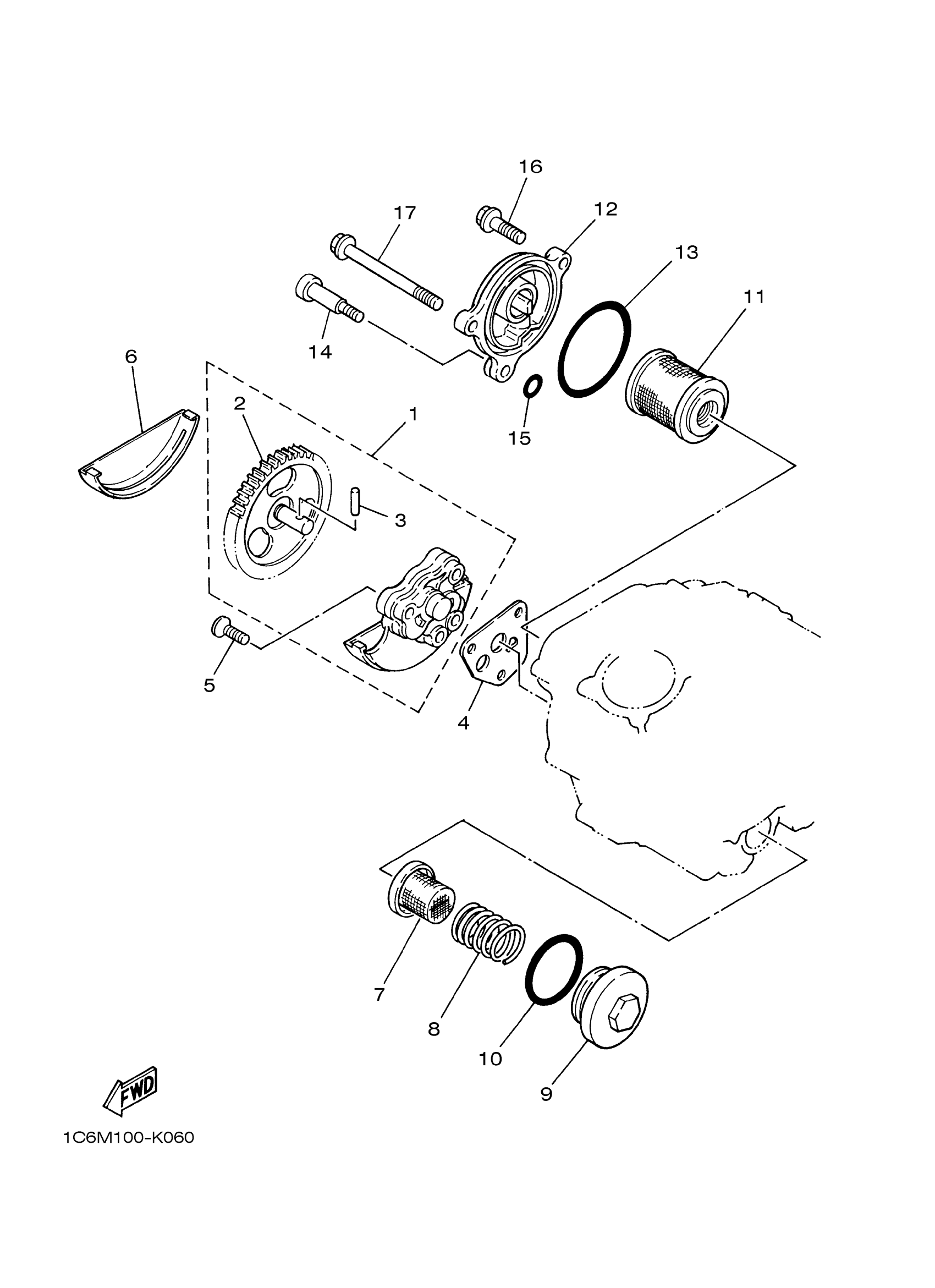

Yamaha TTR230NC (TTR230 CA) B68S 2022 OIL PUMP Diagram

OIL PUMP ASSY

GEAR, PUMP DRIVEN 2

PIN,DOWEL (137)

GASKET, PUMP COVER

SCREW, FLAT

COVER, PUMP GEAR

STRAINER, OIL

SPRING, COMPRESSION (3Y1)

PLUG, DRAIN

O-RING

OIL CLEANER ASSY

COVER, OIL ELEMENT

O-RING (341)

BOLT

O-RING (583 OIL DRAIN BOLT)

BOLT, SMALL FLANGE

BOLT, WASHER BASED
