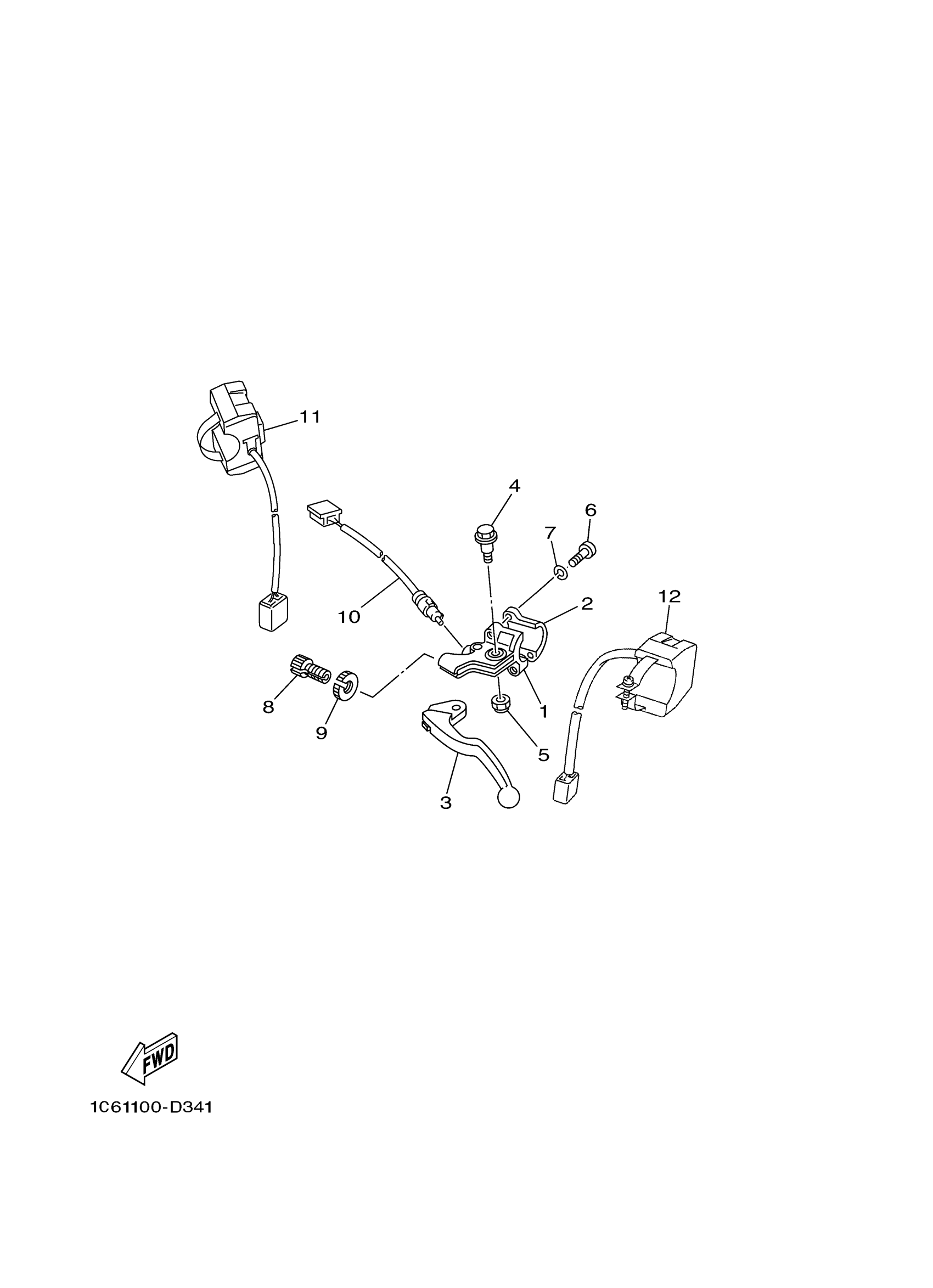

Yamaha TTR230NC (TTR230 CA) B68S 2022 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

HOLDER LEVER 1

2TY-H2911-00-00

$18.80

2

HOLDER, LEVER LOWER 1

1B2-H2913-00-00

$3.52

3

LEVER 1

4GY-83912-00-00

$24.07

4

BOLT, LEVER

4LR-H3945-00-00

$1.41

5

NUT SELF LOCKING

90185-06802-00

$1.09

6

SCREW, PAN HEAD

98517-05020-00

$1.26

7

WASHER(3SX)

92907-05100-00

$5.76

8

BOLT

90123-08002-00

$8.57

9

NUT

90179-08030-00

$3.63

10

SWITCH

5TJ-82917-02-00

$39.17

11

SWITCH, HANDLE 1

5TJ-83976-13-00

$66.94

12

SWITCH, HANDLE 1

5UM-83976-E2-00

$59.24
