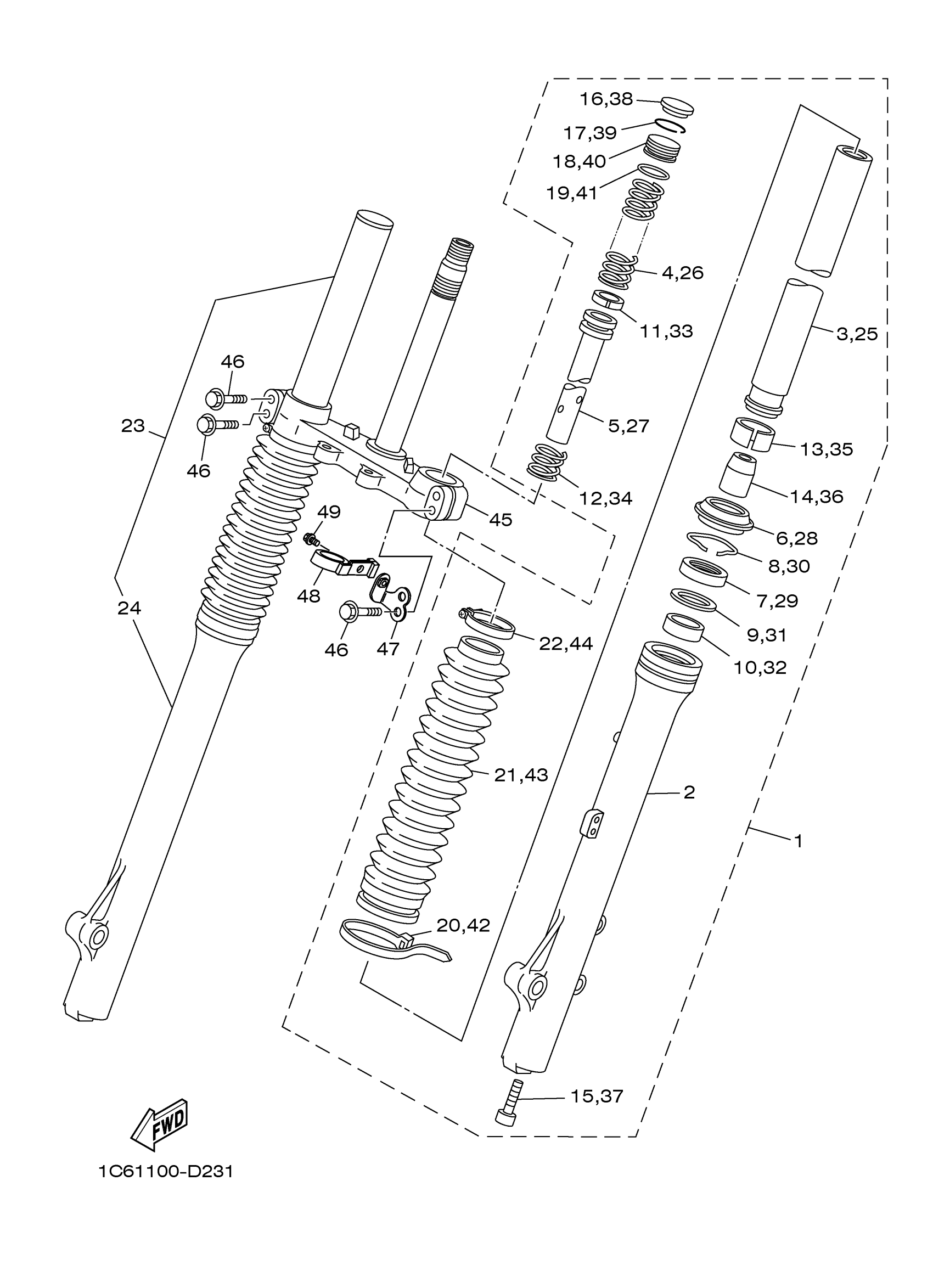

Yamaha TTR230NC (TTR230 CA) B68S 2022 FRONT FORK Diagram
#
3
INNER TUBE COMP.1
1C6-F3110-00-00
Unavailable
5
PISTON, FRONT FORK
1C6-F3171-00-00
Unavailable
12
SPRING, REBOUND
34X-23151-00-00
Unavailable
16
CAP, FRONT FORK
35E-23168-00-00
Unavailable
17
CIRCLIP
35E-23183-00-00
Unavailable
18
BOLT, CAP
35E-23111-00-00
Unavailable
19
O-RING
58W-F3114-00-00
Unavailable
20
BAND
4AN-F3192-10-00
Unavailable
21
BOOT
1C6-23191-02-00
Unavailable
22
BAND
4AN-F3192-00-00
Unavailable
23
DAMPER ASSY. (R)
1C6-F3103-02-00
Unavailable
24
TUBE, OUTER (RIGHT)
1C6-F3136-00-00
Unavailable
25
INNER TUBE COMP.1
1C6-F3110-00-00
Unavailable
27
PISTON, FRONT FORK
1C6-F3171-00-00
Unavailable
34
SPRING, REBOUND
34X-23151-00-00
Unavailable
38
CAP, FRONT FORK
35E-23168-00-00
Unavailable
39
CIRCLIP
35E-23183-00-00
Unavailable
40
BOLT, CAP
35E-23111-00-00
Unavailable
41
O-RING
58W-F3114-00-00
Unavailable
42
BAND
4AN-F3192-10-00
Unavailable
43
BOOT
1C6-23191-02-00
Unavailable
44
BAND
4AN-F3192-00-00
Unavailable
45
UNDER BRACKET COMP.
1C6-F3340-00-00
Unavailable
46
BOLT, FLANGE
95817-08035-00
Unavailable
47
GUIDE, CABLE
1C6-F331E-00-00
Unavailable
48
GUIDE, CABLE
1C6-F3389-00-00
Unavailable
49
BOLT, FLANGE
90105-05832-00
Unavailable
