Description

Price

1

LABEL, CAUTION

1C6-14611-01-00

Unavailable

2

NUT, RING

5H0-14612-01-00

$16.49

3

PROTECTOR,EXHAUST PIPE

4VW-E4628-00-00

$142.99

4

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

5

SCREW, BINDING

98907-06010-00

$1.65

6

WASHER, WAVE(3RW)

90206-06090-00

$8.49

7

MUFFLER 1

1C6-E4711-10-00

Unavailable

8

GASKET, MUFFLER

3YF-14714-00-00

$36.99

9

BOLT, FLANGE(4MY)

95027-08025-00

$9.49

10

SPARK ARRESTER ASSY

1C6-14780-00-00

$326.99

11

BOLT, FLANGE

95022-06010-00

$5.60

12

DAMPER, LOCATING 1

2MC-F4181-00-00

$7.99

13

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

BOLT(2KF)

90109-085E2-00

$7.49

16

WASHER (853)

90201-08326-00

Unavailable

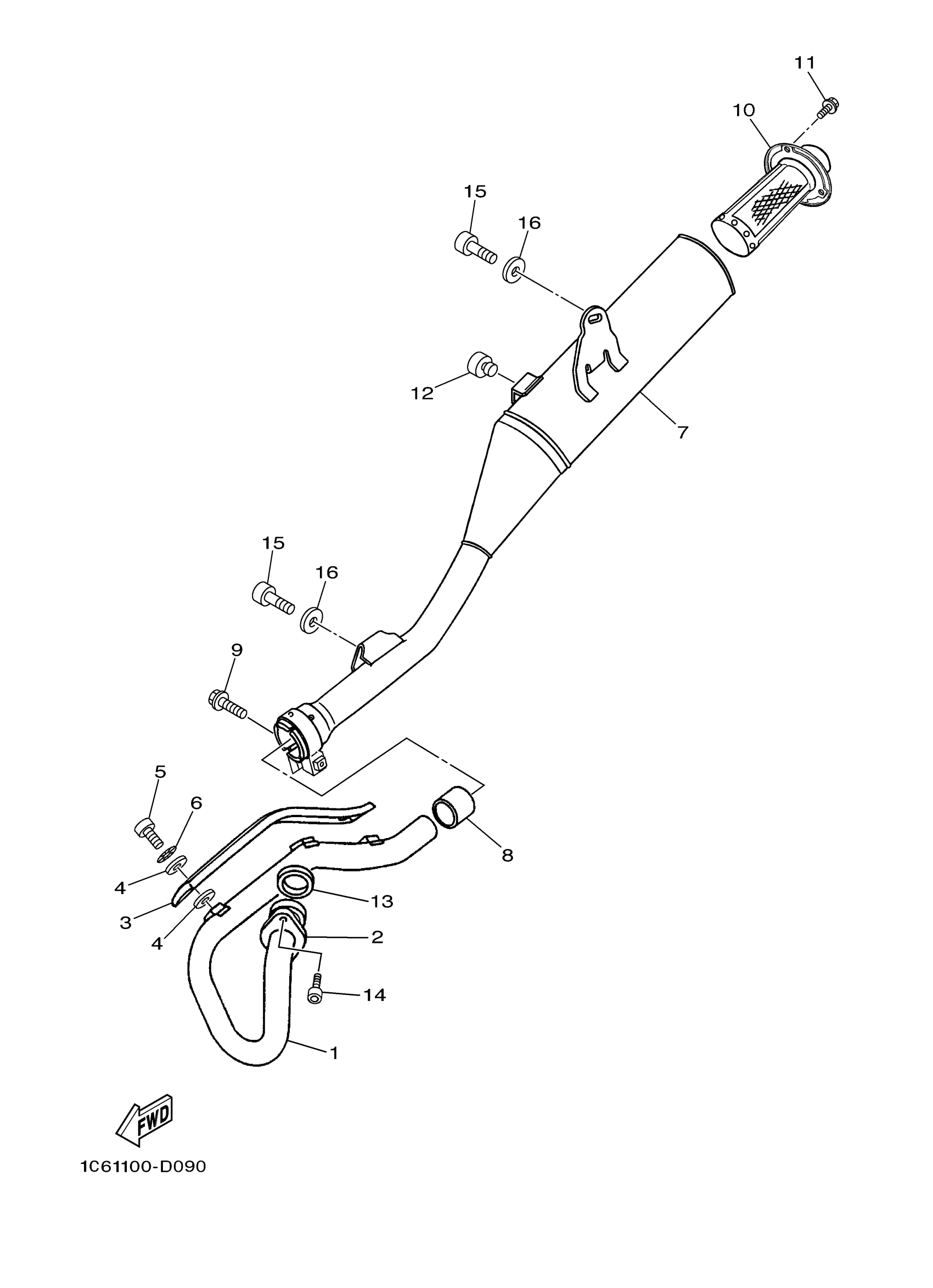

Yamaha TTR230NC (TTR230 CA) B68S 2022 EXHAUST Diagram

LABEL, CAUTION

NUT, RING

PROTECTOR,EXHAUST PIPE

WASHER, PROTECTOR

SCREW, BINDING

WASHER, WAVE(3RW)

MUFFLER 1

GASKET, MUFFLER

BOLT, FLANGE(4MY)

SPARK ARRESTER ASSY

BOLT, FLANGE

DAMPER, LOCATING 1

GASKET, EXHAUST PIPE

BOLT,SOCKET HEAD

BOLT(2KF)

WASHER (853)
