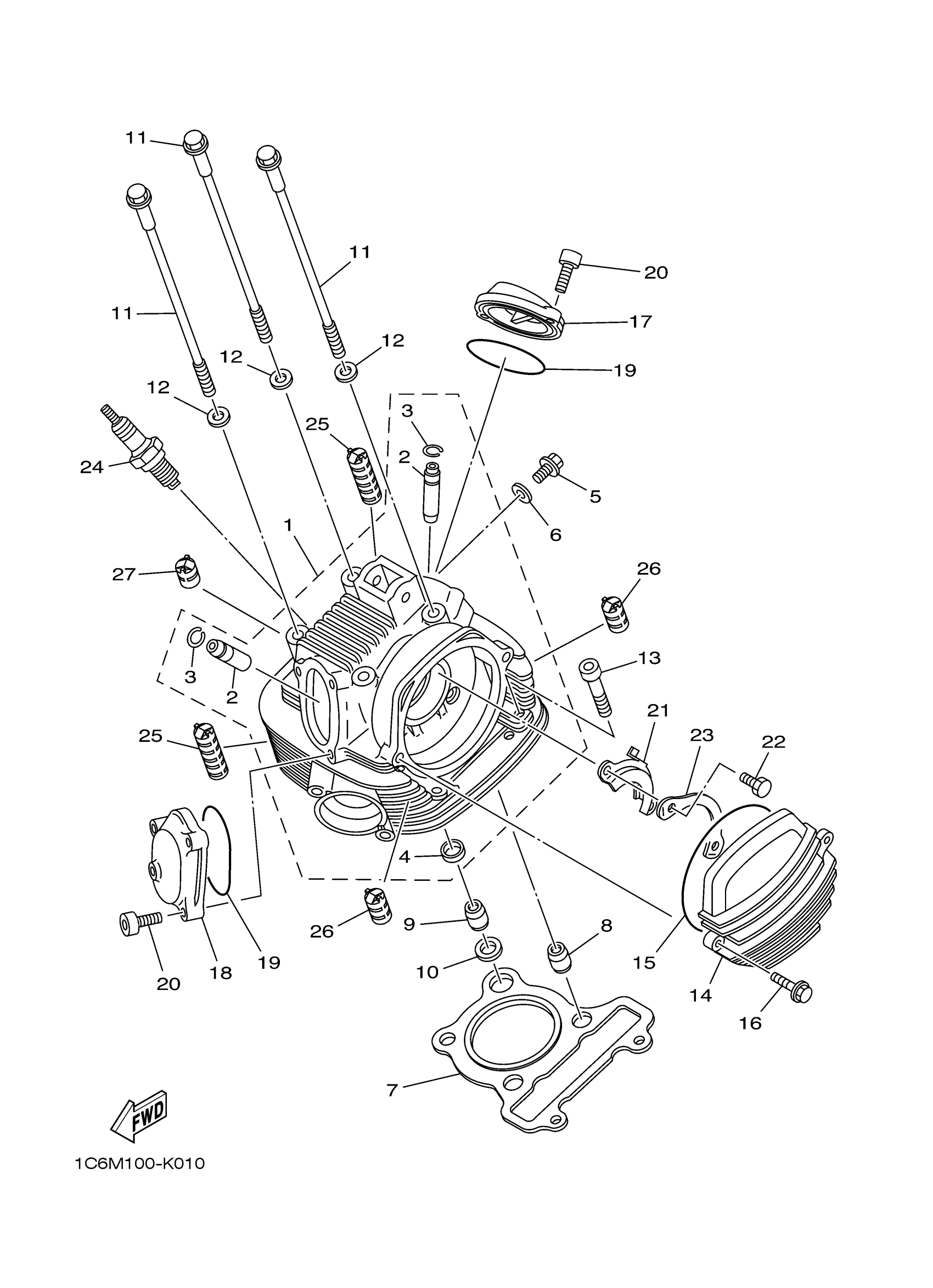

Yamaha TTR230NC (TTR230 CA) B68S 2022 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1C6-11101-00-00

$759.99

2

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

COLLAR

90385-12039-00

$11.49

5

SCREW

90153-06029-00

$10.49

6

GASKET 256113960000

90430-06014-00

Unavailable

7

GASKET, CYLINDER HEAD 1

59V-11181-00-00

$38.99

8

PIN, DOWEL

99530-14016-00

$3.80

9

PIN, DOWEL(4XL)

93612-16254-00

$5.60

10

GASKET (29U)

90430-12186-00

$14.99

11

BOLT, FLANGE

90105-08117-00

$8.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT

9131M-08045-00

Unavailable

14

COVER, CYLINDER HEAD SIDE 1

4VW-E1185-10-00

$50.99

15

O-RING (5H0)

93211-05471-00

$14.99

16

SCREW, PAN

98517-06020-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 2

4VW-E1186-10-00

Unavailable

18

COVER, CYLINDER HEAD SIDE 3

4VW-E1187-10-00

Unavailable

19

O-RING

93210-57634-00

Unavailable

20

BOLT

9131M-06018-00

Unavailable

21

PLATE

5H0-1111F-00-00

Unavailable

22

BOLT, HEXAGON

97017-06012-00

Unavailable

23

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

24

DR8EA NGK SPLUG 10PK

DR8-EA000-00-00

Unavailable

25

ABSORBER 2

15A-11162-00-00

Unavailable

26

ABSORBER 1

5H0-11161-00-00

Unavailable

27

ABSORBER 2

15A-11162-00-00

Unavailable
