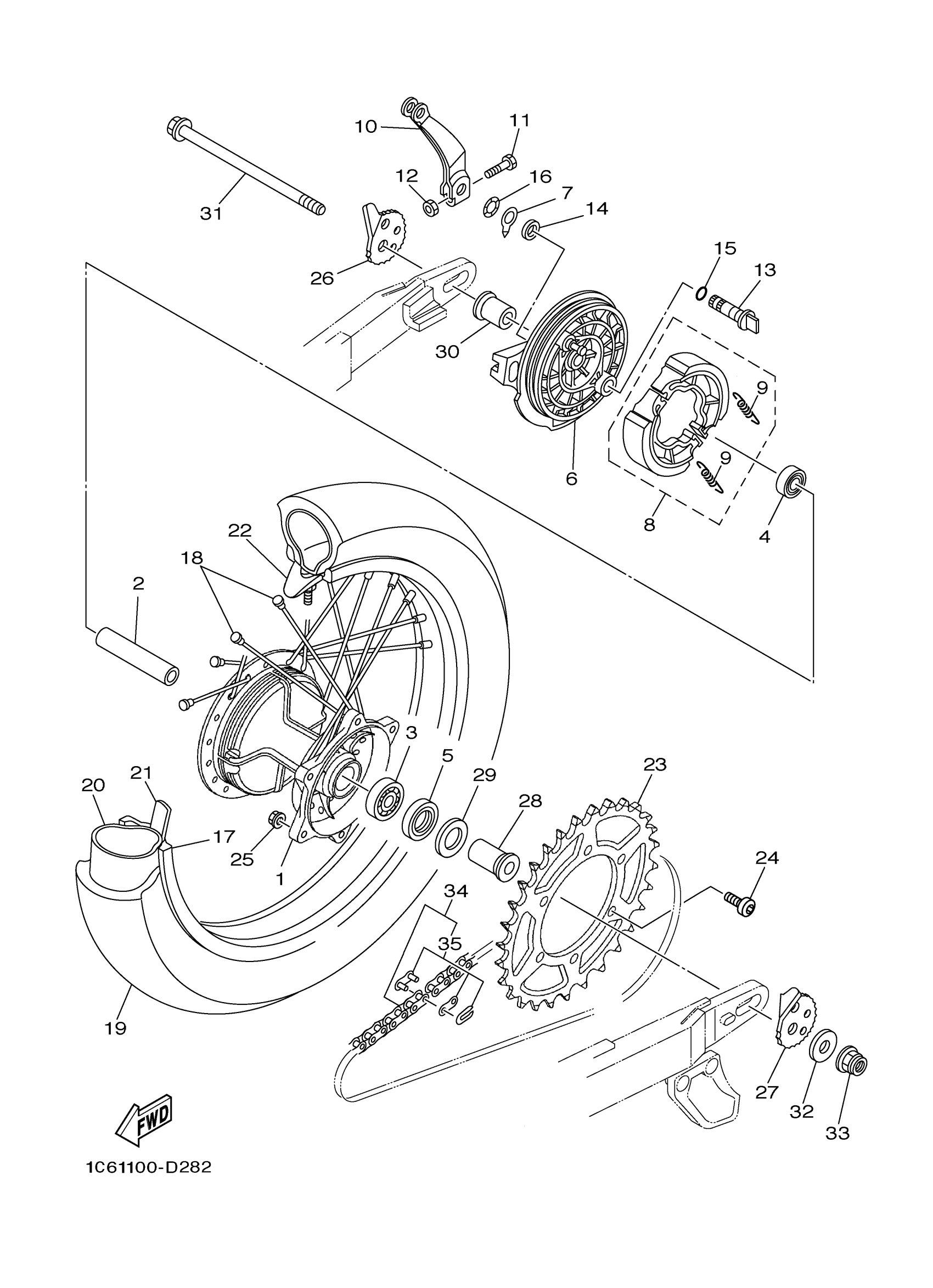

Yamaha TTR230M (TTR230) B68K 2021 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

1C6-F5311-00-00

$124.52

2

SPACER

90560-15313-00

$38.16

3

BEARING - 6302-2NSE

93306-302X7-00

$18.69

4

BEARING

93306-252Y2-00

$15.91

5

SEAL,OIL

93106-26005-00

$6.26

6

PLATE, BRAKE SHOE

5RM-F5321-03-00

$97.50

7

PLATE, INDICATION

5HH-F533A-00-00

Unavailable

8

BRAKE SHOE KIT

3FA-W253A-00-00

$22.42

9

SPRING, TENSION

90506-15260-00

$5.37

10

LEVER, CAMSHAFT 1

5RM-F5355-00-00

$40.00

11

BOLT, HEXAGON

97017-06030-00

$2.80

12

NUT(6TA)

95317-06600-00

$2.52

13

CAMSHAFT

5RM-F5351-00-00

$23.88

14

OIL SEAL (2K8)

93109-14021-00

$9.88

15

O-RING (26H)

93210-14579-00

$5.05

16

WASHER, WAVE(4KN)

90206-14093-00

Unavailable

17

RIM (1.85-18)

94418-18016-00

Unavailable

18

SPOKE SET, REAR

1C6-F5304-10-00

Unavailable

19

TIRE (100/100-18 MT230)

94110-18801-00

$186.17

20

TUBE

94210-18W50-00

Unavailable

21

BAND, RIM

94325-18801-00

Unavailable

22

SPACER, BEAD

4XM-25394-00-00

Unavailable

23

SPROCKET, DRIVEN (49T)

1C6-25449-20-00

Unavailable

24

BOLT

90111-08826-00

Unavailable

25

NUT, SELF-LOCKING

90185-08169-00

Unavailable

26

PULLER, CHAIN 2

5RM-F5389-00-00

Unavailable

27

PULLER, CHAIN 2

1C6-F5389-00-00

Unavailable

28

COLLAR 15 X 26

90387-15W34-00

Unavailable

29

COVER, HUB DUST

4AN-F5367-00-00

Unavailable

30

COLLAR

90387-15W35-00

Unavailable

31

AXLE, WHEEL

1C6-F5381-00-00

Unavailable

32

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

33

NUT, SELF-LOCKING

90185-14112-00

Unavailable

34

CHAIN (DID520V2-105LE)

9Y581-47105-00

Unavailable

35

JOINT, CHAIN(4BF)

94681-47011-00

Unavailable
