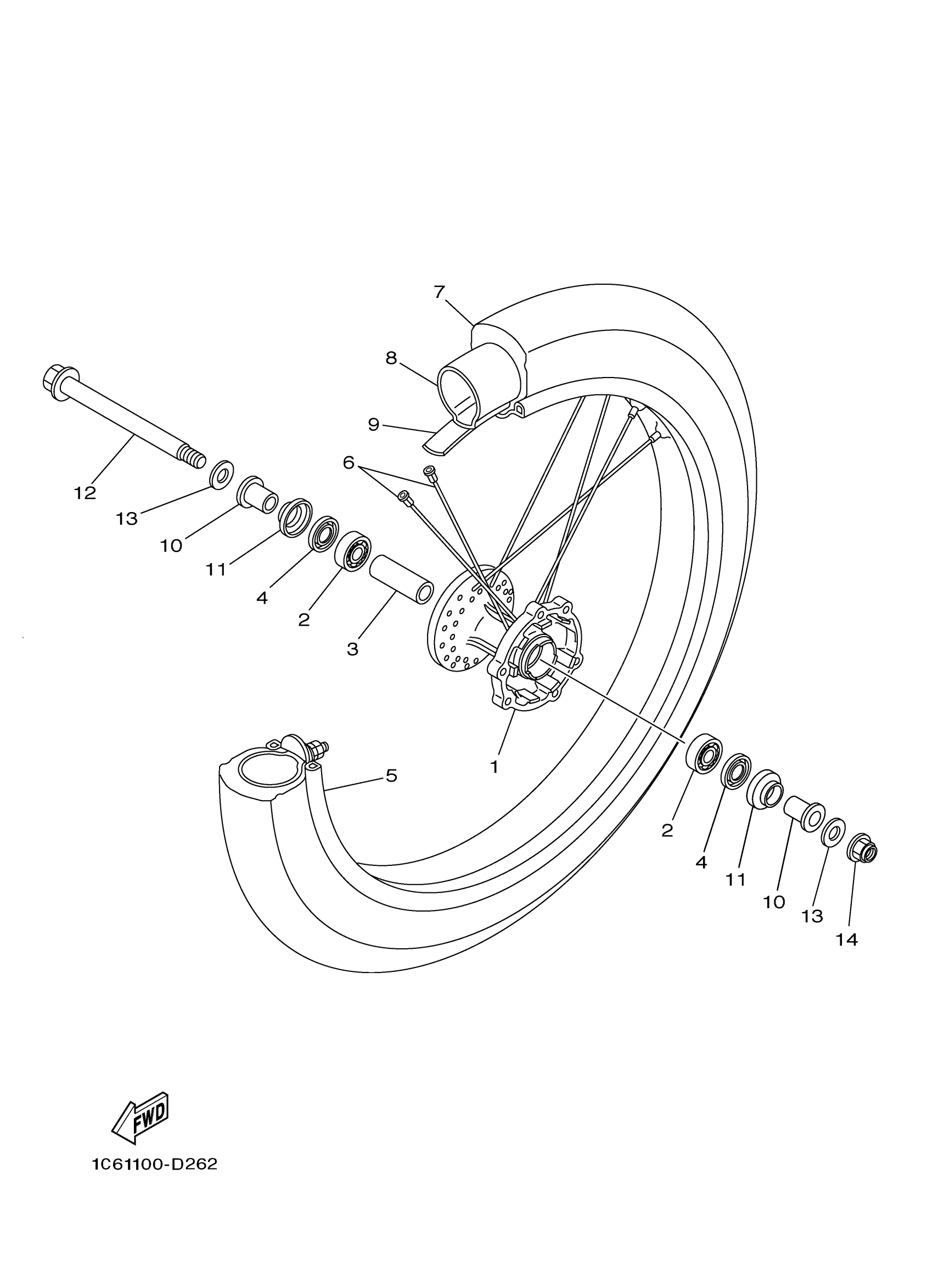

Yamaha TTR230J (TTR230) B68A 2018 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHELL (0035)

4AN-F5111-10-35

$199.99

2

BEARING

93306-202XY-00

$17.99

3

SPACER(1ET)

90560-15290-00

$18.99

4

OIL SEAL(38V)

93106-20021-00

$14.99

5

RIM (1.60-21)(2YY)

94416-21536-00

$456.99

6

SPOKE SET, FRONT

34X-25104-00-00

$153.99

7

TIRE (80/100-21 MT320H)

94108-21800-00

Unavailable

8

TUBE (80/100-21)

94227-21W51-00

Unavailable

9

BAND, RIM (2A6)

94330-21084-00

$16.99

10

COLLAR (1W1)

90387-15600-00

$18.99

11

COVER, HUB DUST

322-25118-00-00

$17.49

12

AXLE, WHEEL

1C6-F5181-00-00

$36.99

13

WASHER, PLATE (3X3)

90201-15797-00

$9.49

14

NUT, U(4JT)

95617-14100-00

Unavailable
