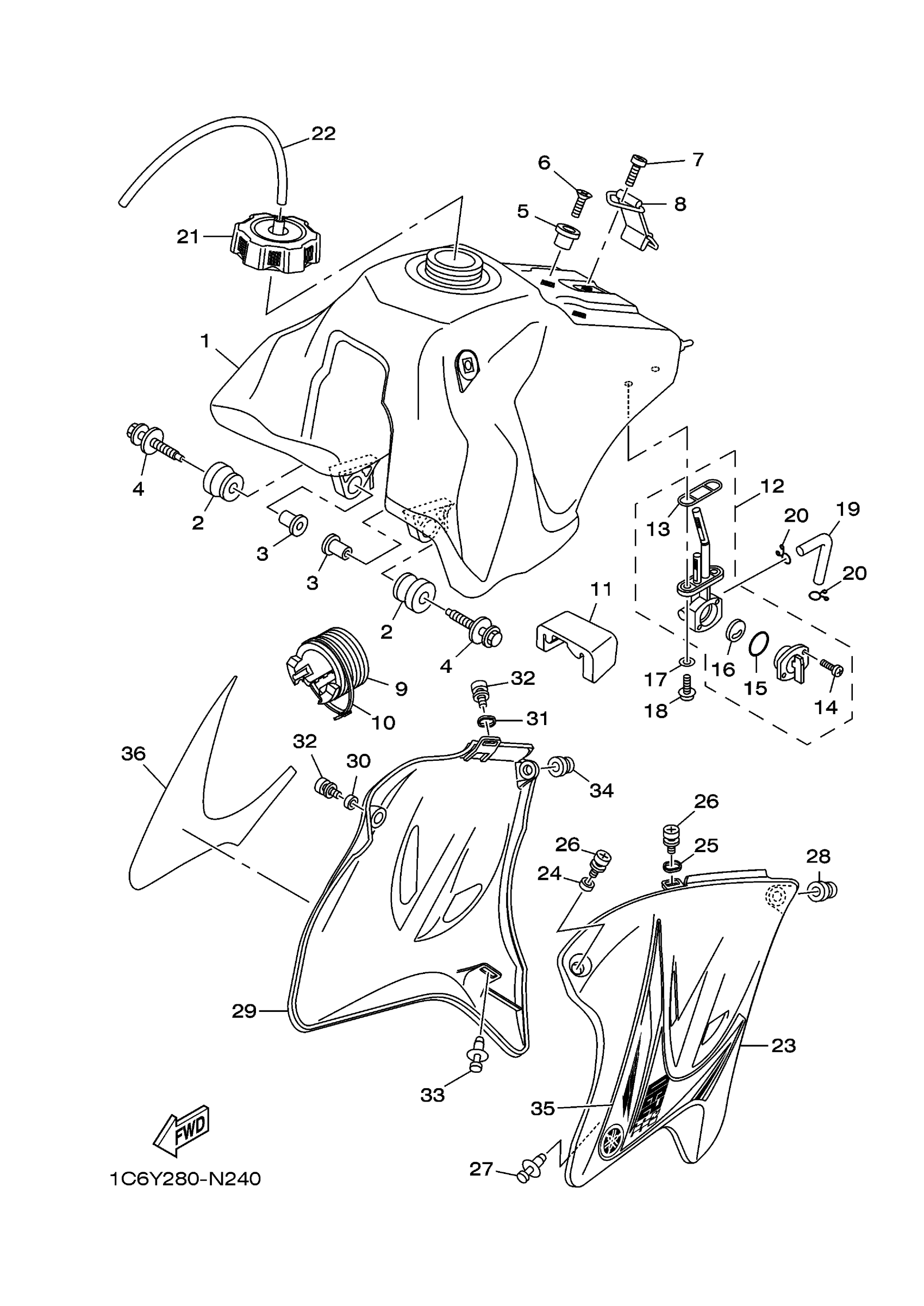

Yamaha TTR230E (TTR230) 1C6W 2014 FUEL TANK Diagram
#
Description
Price
16
VALVE PACKING
3AC-24523-00-00
Unavailable
17
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
18
SCREW 256241430000
90149-06011-00
Unavailable
19
HOSE
90445-10829-00
Unavailable
20
CLIP
90467-090A2-00
Unavailable
21
CAP ASSY
2FJ-24610-20-00
Unavailable
22
HOSE
90445-08037-00
Unavailable
23
SCOOP, AIR 1
1C6-F137W-00-00
Unavailable
24
COLLAR(3HN)
90387-060T4-00
Unavailable
25
COLLAR
1B2-F1749-00-00
Unavailable
26
SCREW, WITH WASHER(3YJ)
90159-06182-00
Unavailable
27
RIVET(4JH)
90269-07076-00
Unavailable
28
GROMMET(4FU)
90480-13567-00
Unavailable
29
SCOOP, AIR 2
1C6-F137X-00-00
Unavailable
30
COLLAR(3HN)
90387-060T4-00
Unavailable
31
COLLAR
1B2-F1749-00-00
Unavailable
32
SCREW, WITH WASHER(3YJ)
90159-06182-00
Unavailable
33
RIVET(4JH)
90269-07076-00
Unavailable
34
GROMMET(4FU)
90480-13567-00
Unavailable
35
GRAPHIC 1
1C6-F137N-50-00
Unavailable
36
GRAPHIC 2
1C6-F137P-50-00
Unavailable
