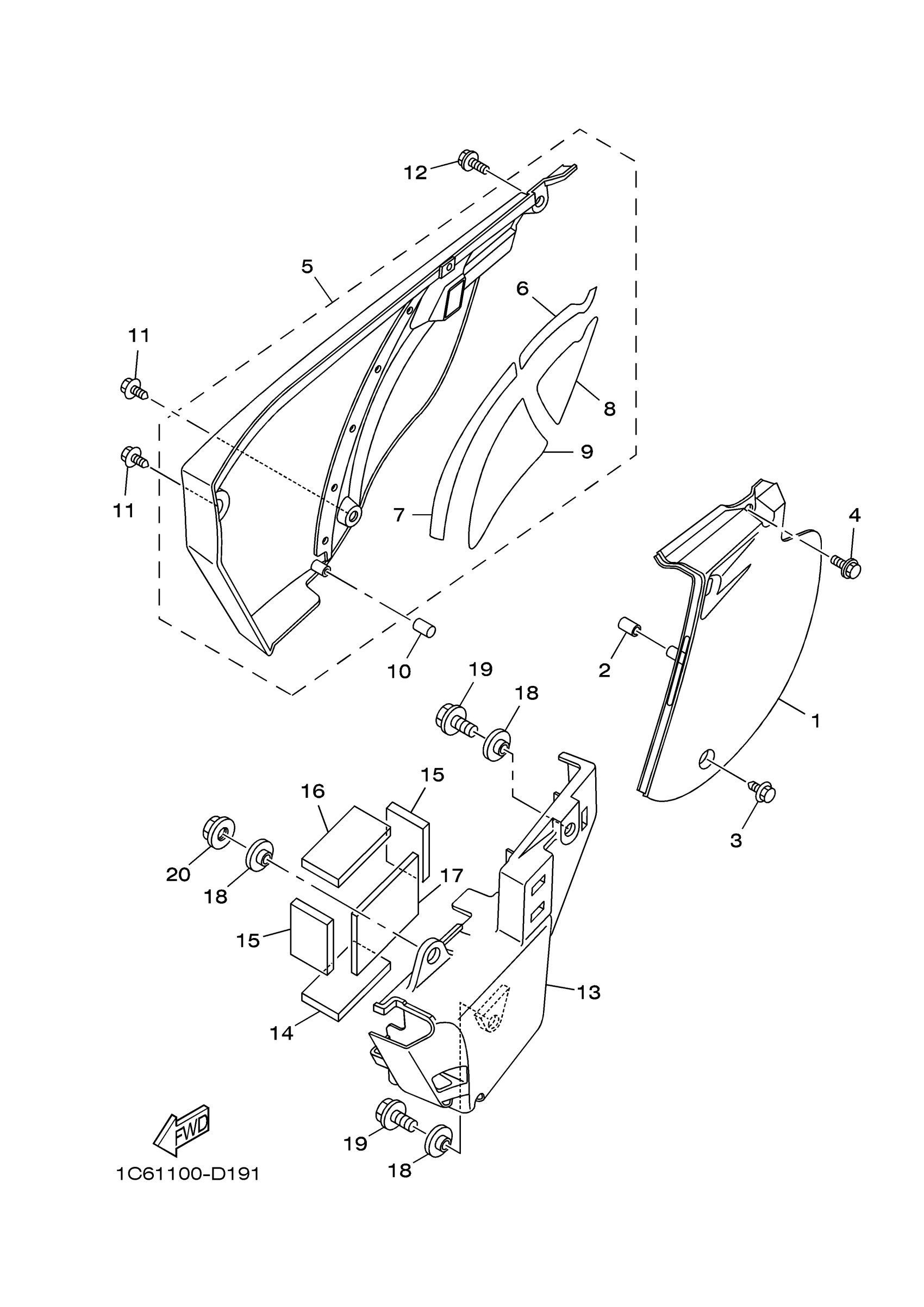

Yamaha TTR230D (TTR230) 1C6T 2013 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1C6-F1711-00-00

$67.42

2

DAMPER, LOCATING 1

1C6-F1778-00-00

$0.48

3

BOLT, HEXA W/W

90119-06018-00

$5.75

4

BOLT, WITH WASHER

90119-08238-00

$2.87

5

SIDE COVER ASSY 2

1C6-F1720-00-00

$35.55

6

DAMPER

1C6-F1747-01-00

Unavailable

7

INSULATOR, SIDE COVER 2

1C6-F174T-00-00

$12.48

8

SEAL 3

1C6-F173M-00-00

$4.29

9

SEAL 4

1C6-F173N-00-00

$3.92

10

DAMPER, LOCATING 1

1C6-F1778-00-00

$0.48

11

BOLT, HEXA W/W

90119-06018-00

$5.75

12

BOLT, WITH WASHER

90119-08238-00

$2.87

13

BOX, BATTERY

1C6-F177G-00-00

$11.09

14

DAMPER

1C6-F1746-00-00

$1.02

15

DAMPER

1C6-F1747-01-00

Unavailable

16

DAMPER

1C6-F174X-00-00

Unavailable

17

DAMPER

1C6-F174X-01-00

Unavailable

18

COLLAR (8G8)

90387-06681-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

NUT, FLANGE(4MV)

95707-06500-00

Unavailable
