2012 Yamaha TTR230 (TTR230B) Steering Diagram

← All diagrams

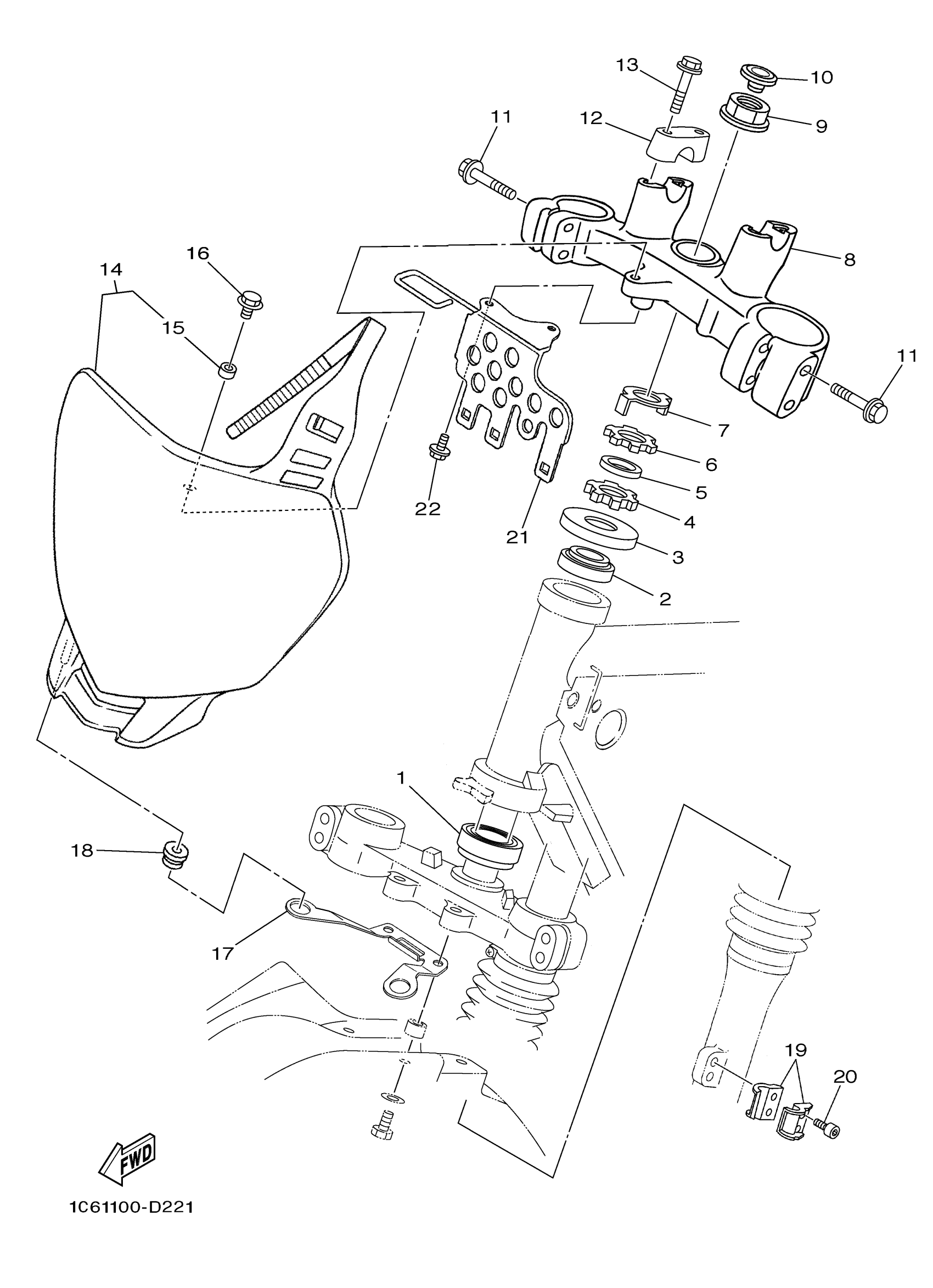

Find the part on the Steering diagram for your 2012 Yamaha TTR230 (TTR230B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha TTR230 (TTR230B) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

2

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

3

COVER, BALL RACE 2

4JG-23416-00-00

—
Out of stock

4

NUT SPECIAL SHAPE M25

90179-25W23-00

1
Out of stock

5

WASHER, PLATE (26H)

90202-26142-00

1
Out of stock

6

NUT

90179-25806-00

1
Out of stock

7

WASHER, SPECIAL

5HH-F3418-00-00

1
Out of stock

8

CROWN, HANDLE

1C6-F3435-00-00

—
Out of stock

9

NUT (26H)

90179-22412-00

1
Out of stock

10

CAP

1C6-F319U-00-00

1
Out of stock

11

BOLT, FLANGE(4MY)

95027-08040-00

1
Out of stock

12

HOLDER, HANDLE UPPER

3V9-F3441-10-35

1
Out of stock

13

BOLT, FLANGE(4MY)

95027-08035-00

1
Out of stock

14

PLATE, NUMBER

1C6-F3485-00-00

1
Out of stock

15

COLLAR

90387-06W62-00

1
Out of stock

16

BOLT, FLANGE(4DU)

95027-06014-00

—
Out of stock

17

STAY, PLATE

1C6-F3486-00-00

—
Out of stock

18

GROMMET(80K)

90480-13428-00

—
Out of stock

19

CLAMP (39E)

90465-14242-00

—
Out of stock

20

BOLT

9131M-06016-00

1
Out of stock

21

BRACKET

1C6-H350E-00-00

1
Out of stock

22

BOLT, FLANGE

95817-06014-00

—
Out of stock
